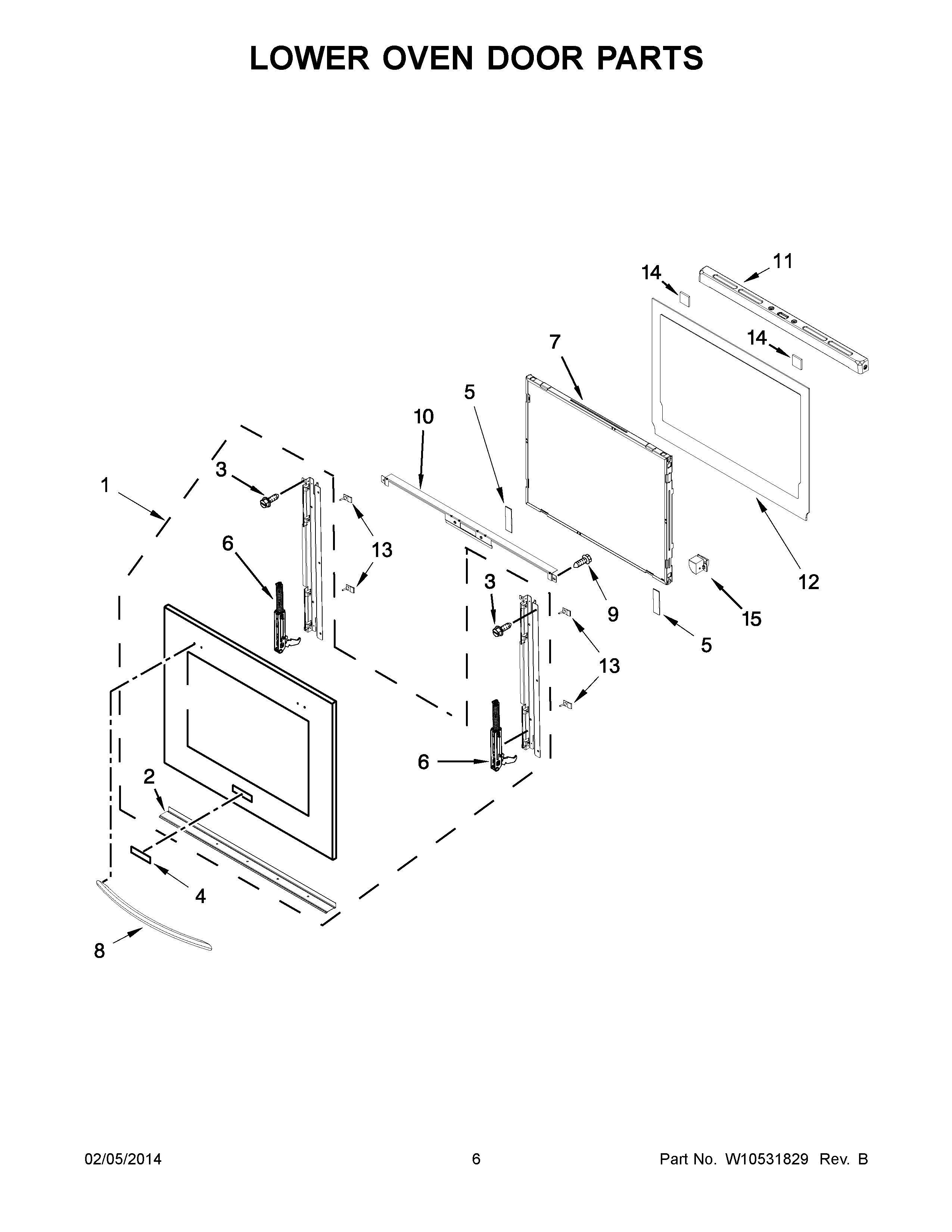

KEBS209BSS00 04 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR GLASS (WHITE)
1	ASSEMBLY, DOOR GLASS (BLACK)
1	ASSEMBLY, DOOR GLASS (STAINLESS)
2	W10479068 Whirlpool Dishwasher Support Bracket
3	SCREW
4	WPW10243391 Whirlpool Refrigerator Nameplate
4	WPW10243392 Whirlpool Dishwasher Nameplate
4	WPW10243393 Whirlpool Dishwasher Nameplate
5	W10840861 Whirlpool Spacer
6	W10825778 Whirlpool Whirlpool Door Hinge
7	WPW10347598 Whirlpool Door Glass
8	WPW10289076 Whirlpool Door Handle
8	W10284917 Whirlpool Door Handle
8	W10284916 Whirlpool Door Handle
9	SCREW (BLACK)
10	WPW10459351 Whirlpool Glass Bracket
11	WPW10416257 Whirlpool Vent Trim
12	WPW10335920 Whirlpool Glass Frame
13	WPW10323551 Whirlpool Bumper
14	WPW10517428 Whirlpool Spacer
15	BRACKET, DOOR (LEFT)
15	WPW10581826 Whirlpool Support Bracket
