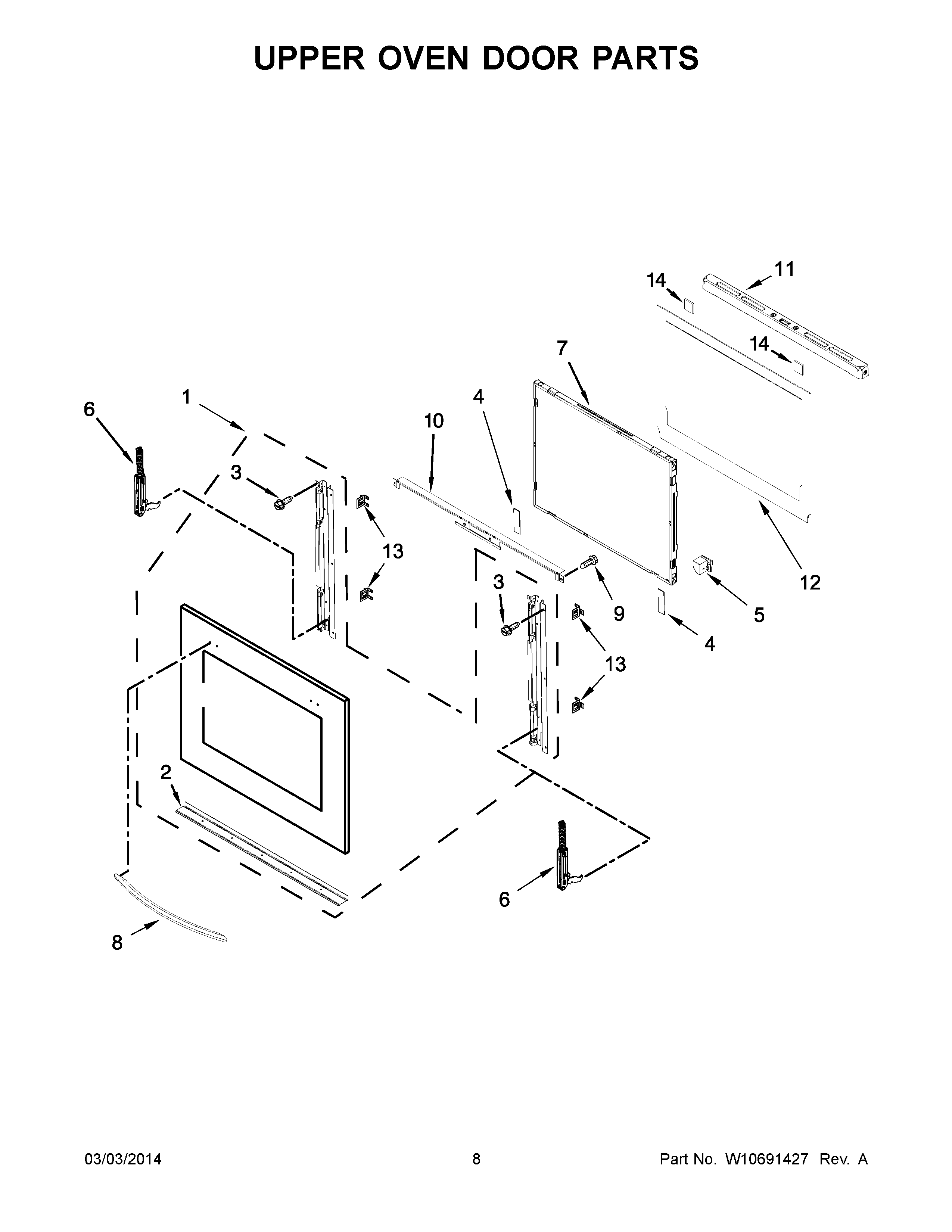

KEBS209BSS01 05 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR GLASS (WHITE)
1	ASSEMBLY, DOOR GLASS (BLACK)
1	ASSEMBLY, DOOR GLASS (STAINLESS)
2	W10479068 Whirlpool Dishwasher Support Bracket
3	SCREW
4	W10840861 Whirlpool Spacer
5	BRACKET, DOOR (LEFT)
5	WPW10581826 Whirlpool Support Bracket
6	W10825778 Whirlpool Whirlpool Door Hinge
7	WPW10347598 Whirlpool Door Glass
8	WPW10289076 Whirlpool Door Handle
8	W10284917 Whirlpool Door Handle
8	W10284916 Whirlpool Door Handle
9	SCREW (BLACK)
10	WPW10459351 Whirlpool Glass Bracket
11	WPW10416257 Whirlpool Vent Trim
12	WPW10335920 Whirlpool Glass Frame
13	WPW10549747 Whirlpool Clip
14	WPW10517428 Whirlpool Spacer
