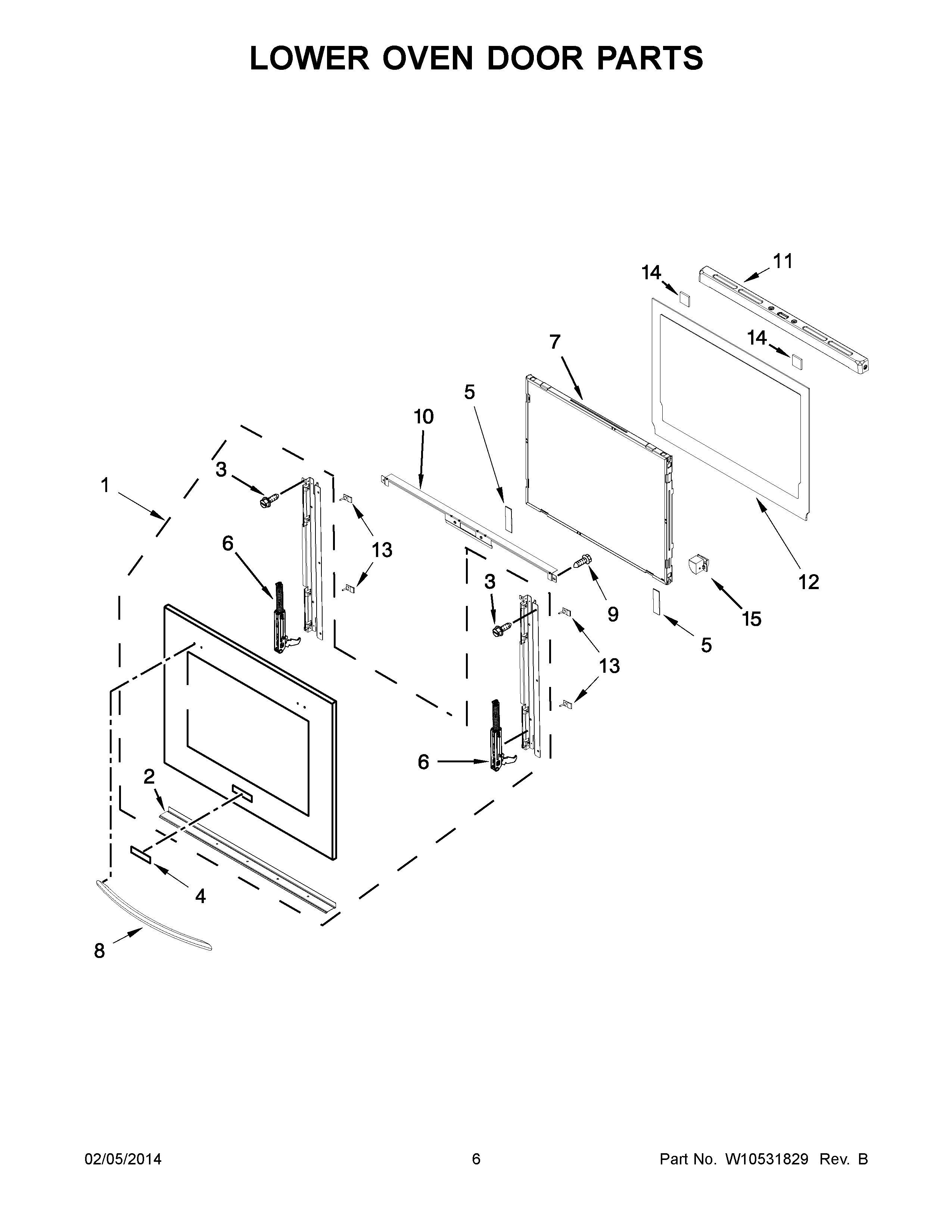

KEBS209BWH00 04 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1ASSEMBLY, DOOR GLASS (WHITE)
1ASSEMBLY, DOOR GLASS (BLACK)
1ASSEMBLY, DOOR GLASS (STAINLESS)
2W10479068 Whirlpool Dishwasher Support Bracket
3SCREW
4WPW10243391 Whirlpool Refrigerator Nameplate
4WPW10243392 Whirlpool Dishwasher Nameplate
4WPW10243393 Whirlpool Dishwasher Nameplate
5W10840861 Whirlpool Spacer
6W10825778 Whirlpool Whirlpool Door Hinge
7WPW10347598 Whirlpool Door Glass
8WPW10289076 Whirlpool Door Handle
8W10284917 Whirlpool Door Handle
8W10284916 Whirlpool Door Handle
9SCREW (BLACK)
10WPW10459351 Whirlpool Glass Bracket
11WPW10416257 Whirlpool Vent Trim
12WPW10335920 Whirlpool Glass Frame
13WPW10323551 Whirlpool Bumper
14WPW10517428 Whirlpool Spacer
15BRACKET, DOOR (LEFT)
15WPW10581826 Whirlpool Support Bracket
