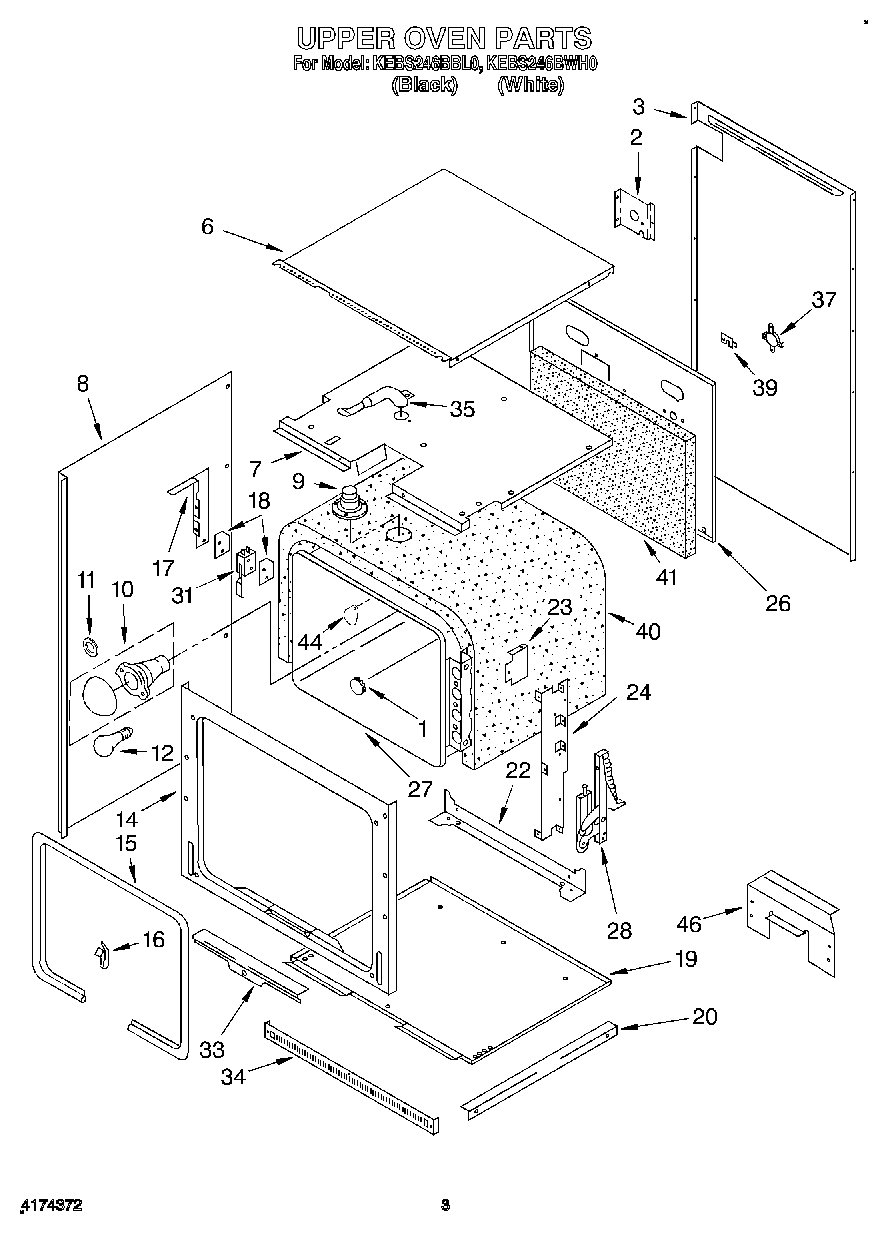

KEBS246BBL0 02 – UPPER OVEN

Products

Position	Product
1	Button, Plug
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Screw (2)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	Retainer, Seal
34	Vent, Middle Trim (White Model)
34	Vent, Middle Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent
37	Fuse, Safety
37	Screw
39	Cover, Cap Tube
39	Screw
40	WPL 3185550
41	WPL 3177870
44	WP3177991 Whirlpool Screw
44	Probe Cover
46	WPL 3182584
