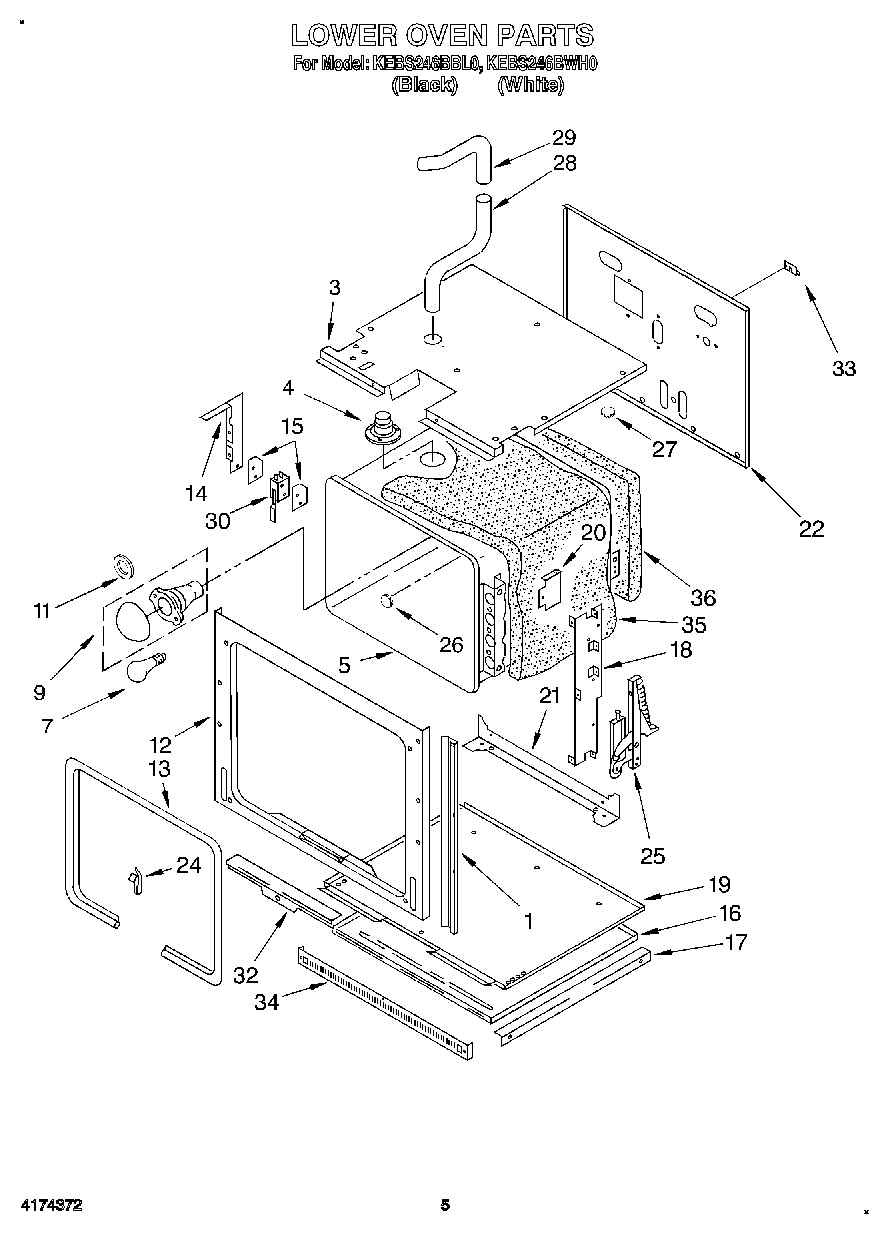

KEBS246BBL0 03 – LOWER OVEN

Written by

Products

Position	Product
1	Side Trim, Door (2) (White Model)
1	Trim, Door Side (2) (Black Model)
3	Module, Top
4	Screw (2)
4	Tube, Vent
5	Liner, Oven
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	Frame, Door
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
18	Screw (6)
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	Screw
29	Tube, Vent Female
30	Nut (2)
30	Screw (2)
30	Switch, Door
32	Vent, Lower Trim (Screw (2))
32	Retainer, Seal
33	Screw
33	Cover, Cap Tube
34	Trim, Lower Vent (Black Model)
34	Trim, Lower Vent (White Model)
35	WPL 3185550
36	WPL 3177870
