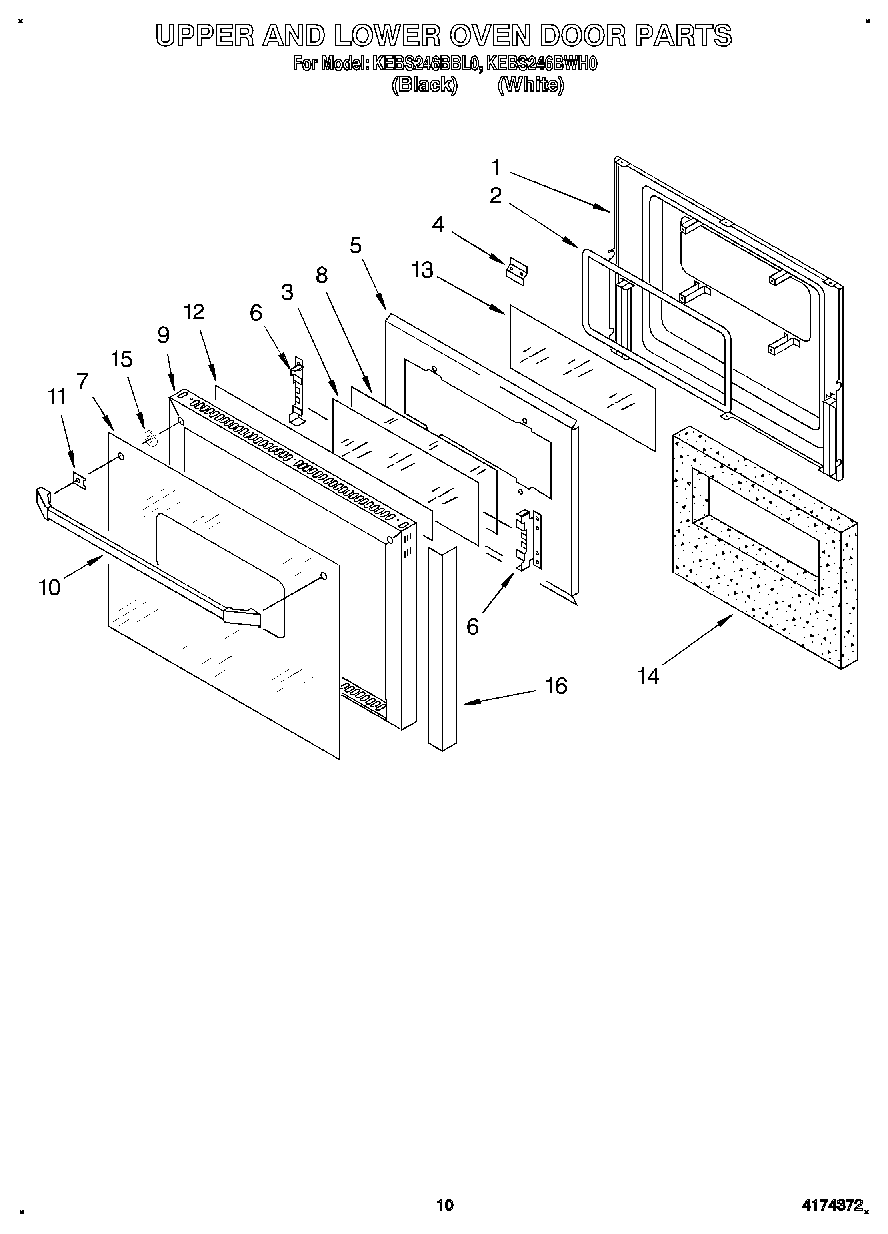

KEBS246BBL0 06 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Retainer, Insulation
6	Retainer, Glass
6	Screw
7	Glass, Door (Black Model)
7	Glass, Door (White Model)
8	Glass, Reflective
9	Frame, Door (Black Model)
9	Frame, Door (White Model)
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
10	Screw
11	Screw, Black (2)
11	Spacer, Door Handle
12	Foil-Adhesive
12	Vent, Lower Trim (Screw (2))
13	Glass, Clear
14	Insulation, Door
15	Screw, 10-32 x 1/2
15	Bushing, Door Handle
16	Foil-Adhesive
