KEBS246YBL2 04 – LATCH AND VENT

KEBS246YBL2 04 – LATCH AND VENT

Written by

in

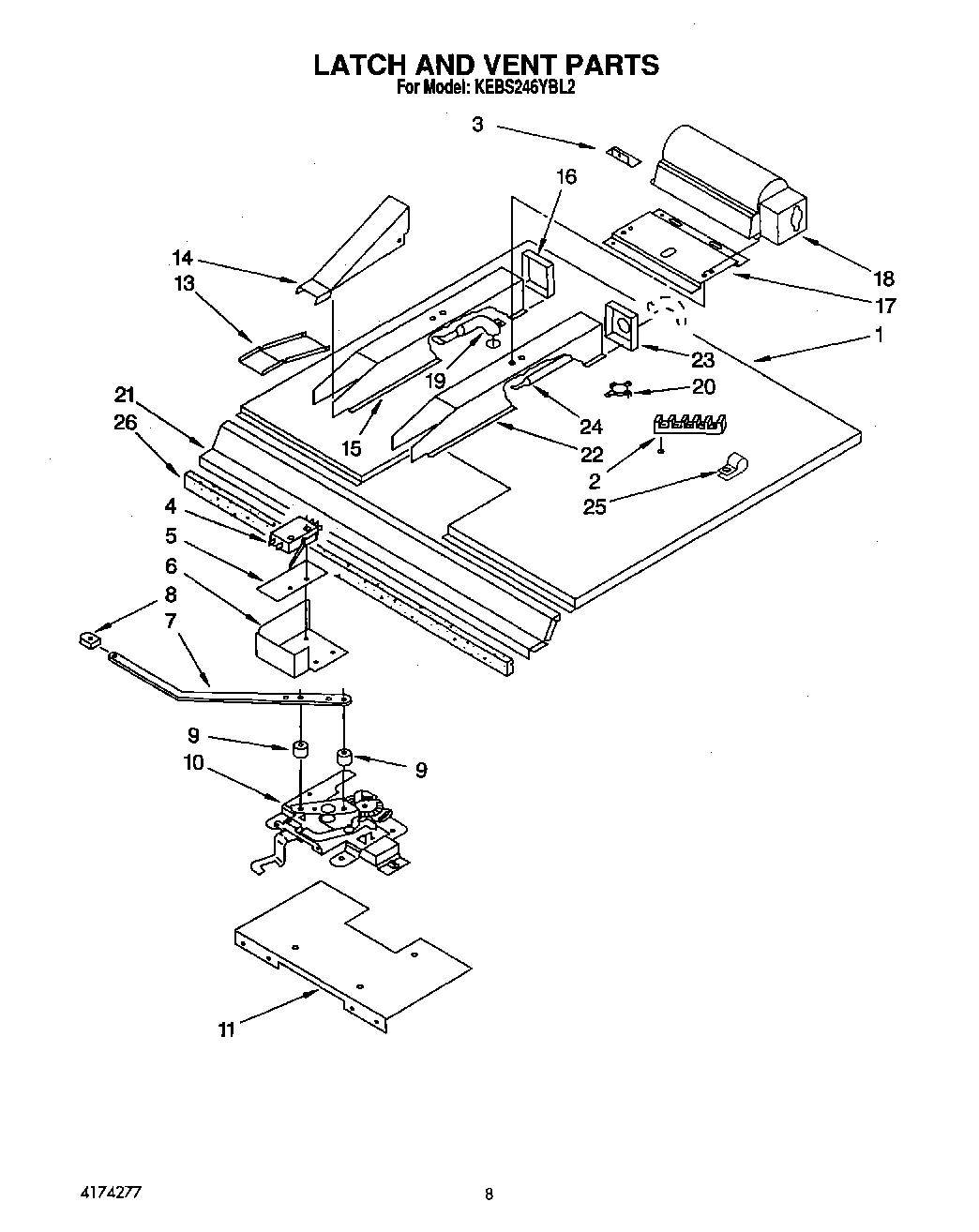

KEBS246YBL2 04 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
3Screw
3Baffle-Blower
4Screw
4Switch, latch
5Insulator, Switch
6Guard, Latch
7Handle, Latch
7Screw (2)
7Handle, Latch
7Clip, Tube
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17Bracket, Mounting
17WP3177991 Whirlpool Screw
18Blower, fan
19Tube, Vent
20SPST Thermostat
21Bushing
21Shield, Heat
22Screw, 8-18 X 3/4 (4)
22Box, Vent
22Screw
23End, Box Vent
24Tube, Vent Lower Oven
25Screw
25Clamp, Tube
26Seal, foam
