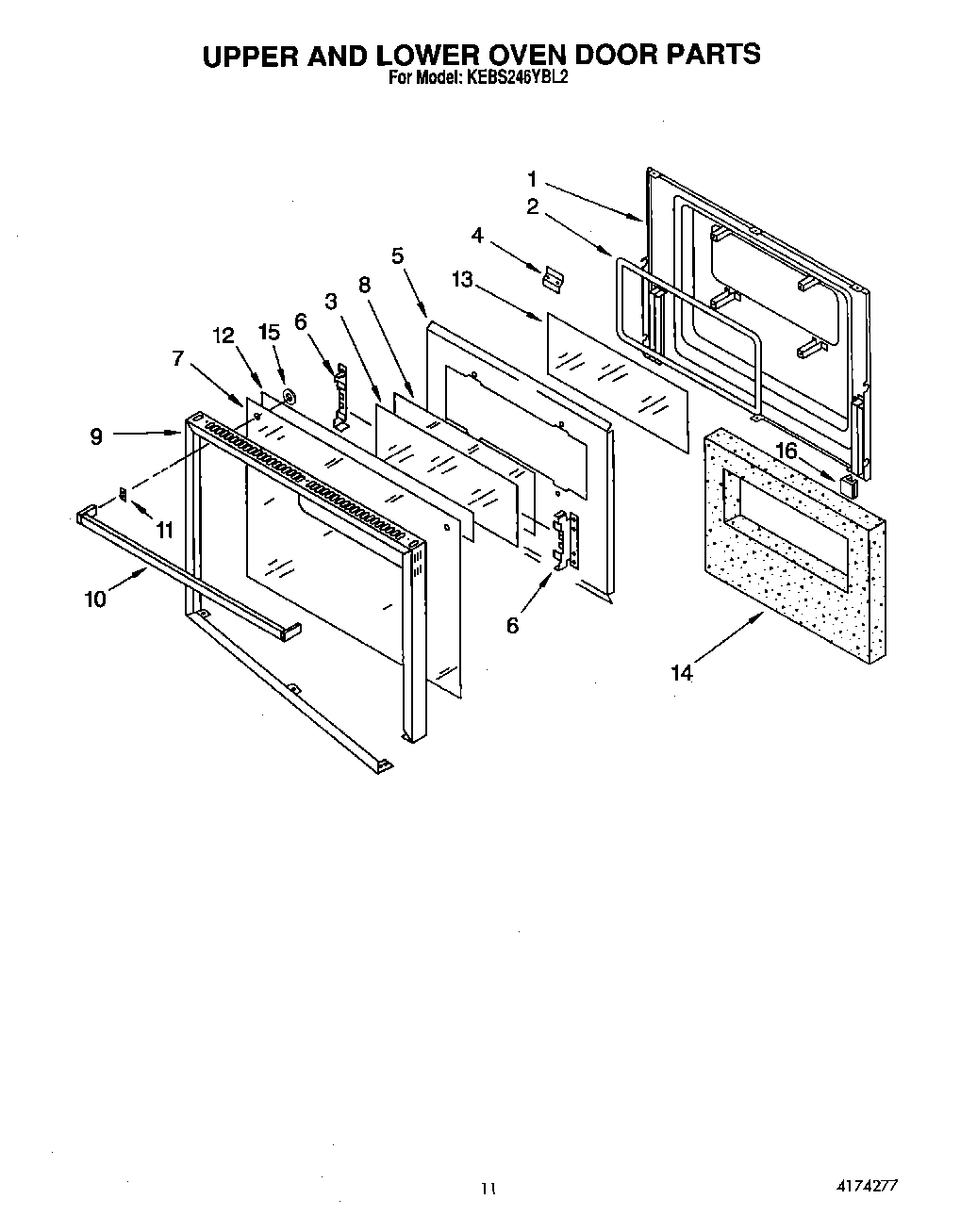

KEBS246YBL2 06 – UPPER AND LOWER OVEN DOOR

KEBS246YBL2 06 – UPPER AND LOWER OVEN DOOR

Written by

in

KEBS246YBL2 06 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Retainer, Insulation
6	Retainer, Glass
6	Screw
7	Glass, Door (Black Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (Black Model)
10	Screw
11	Screw, Black (2)
11	Spacer, Door Handle
12	Vent, Lower Trim (Screw (2))
12	Foil-Adhesive Backed
13	Glass, Clear
14	Insulation, Door
15	Screw
15	Bushing, Door Handle
16	Bumper, Door Glass
