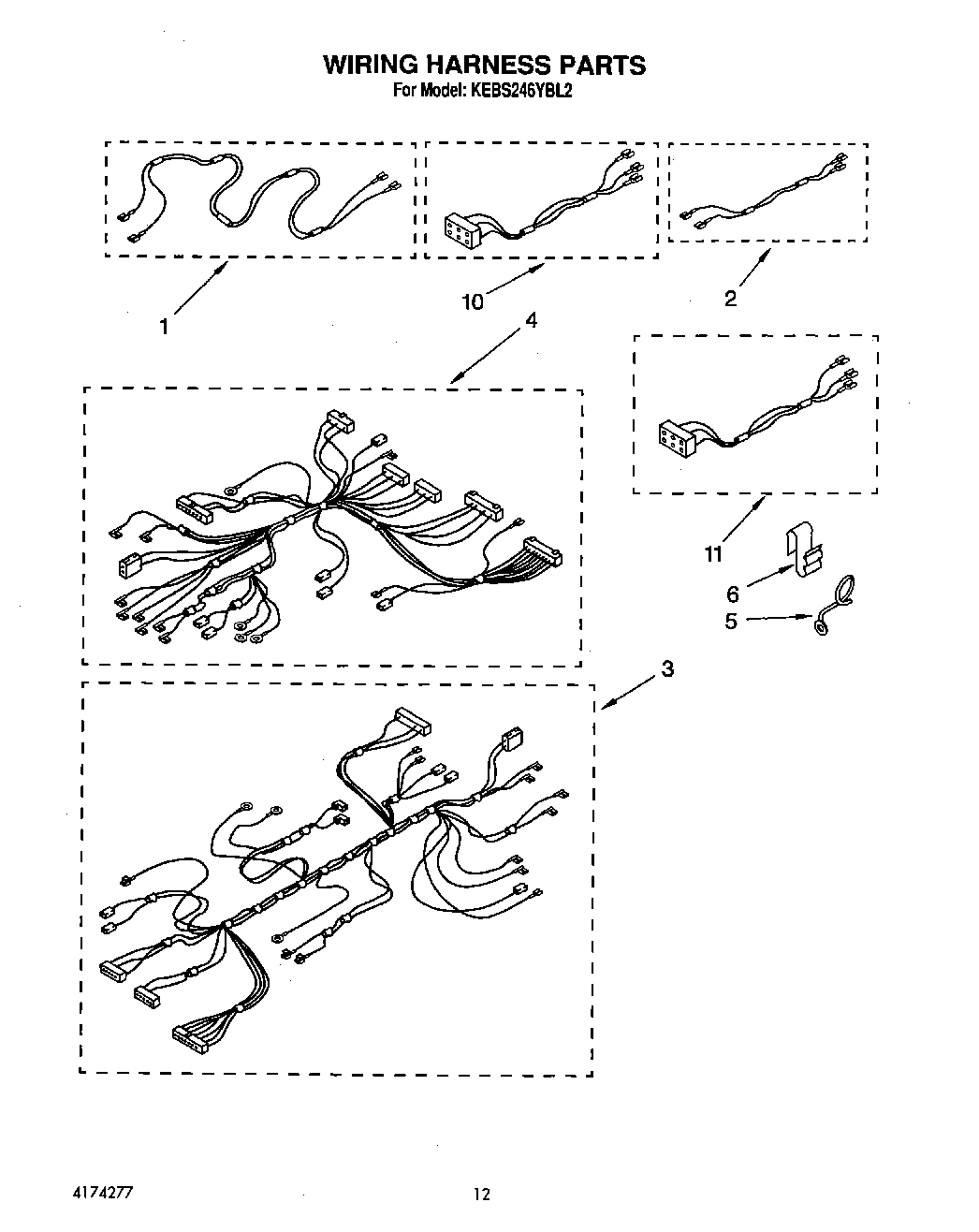

KEBS246YBL2 07 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness Wire (Door Switch)
2	Wiring Harness (Door Switch) Lower)
3	Harness Wire (Lower Oven)
4	Harness Wire (Upper Oven)
5	WP112432 Whirlpool Nut Assembly
5	Screw
5	Standoff, Wire
5	Screw,
6	16515 Whirlpool Clip
10	Harness, Wire Latch Assy. (Lower Oven)
11	Harness, Wire (Latch Assy.)
