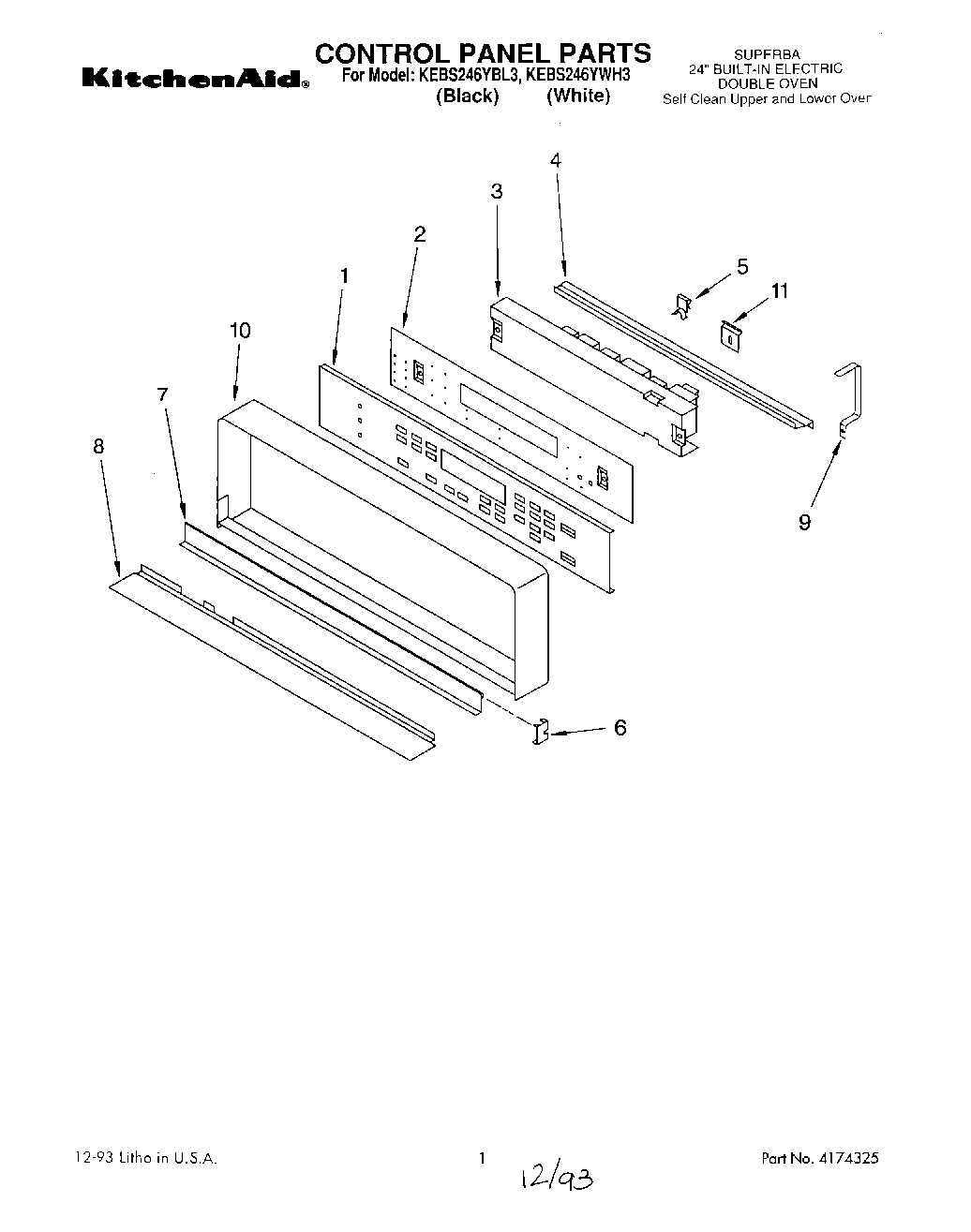

KEBS246YBL3 01 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Wire (14 Ga. 150 c Orange)
	WPL 350806
	WPL 591014
	WPL 832985
	WPL LIT3182133
	WPL LIT3185644
	Installation Instructions
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	1
	Wire (14 Ga. 200 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Golden Harvest (Uncut)
	Toast
	Wire, 25` Roll (Black 14 Ga.)
	WPL 799832
	350942 Whirlpool Spray Paint
	350930 Whirlpool White Spray Paint
	WPL 72112
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
1	Membrane, Switch (White Model)
1	Membrane, Switch (Black Model)
2	Bracket, Mounting Switch Membrane
3	Microcomputer
3	Screw (3)
4	Retainer, Bracket
5	Clip, Retainer (3)
6	Trim, Door (2)
7	Door, Latch Handle (Screw (2))
7	Door, Latch Handle (Black)
7	Door, Latch Handle (White)
8	Trim, Panel
8	Screw
9	Screw (2)
9	Bracket (2)
10	Frame, Control Panel
11	Clip, Control Frame
