KEBS246YBL3 07 – WIRING HARNESS

KEBS246YBL3 07 – WIRING HARNESS

Written by

in

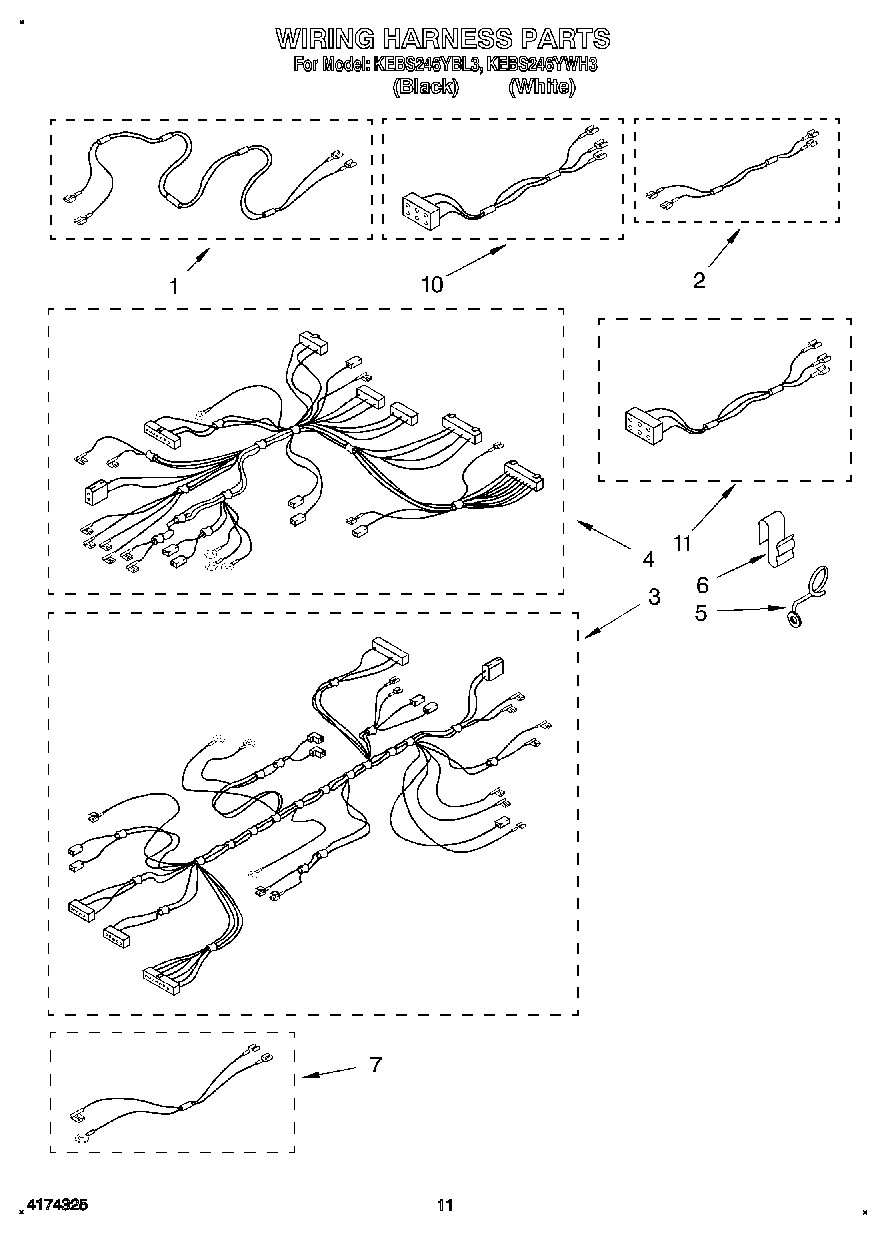

KEBS246YBL3 07 – WIRING HARNESS

Products

PositionProduct
1Harness Wire (Door Switch)
2Wiring Harness (Door Switch) Lower)
3Harness Wire (Lower Oven)
4Harness Wire (Upper Oven)
5WP112432 Whirlpool Nut Assembly
5Screw
5Standoff, Wire
5Screw,
616515 Whirlpool Clip
7Harness, Wire (Switch)
10Harness, Wire Latch Assy. (Lower Oven)
11Harness, Wire (Latch Assy.)
