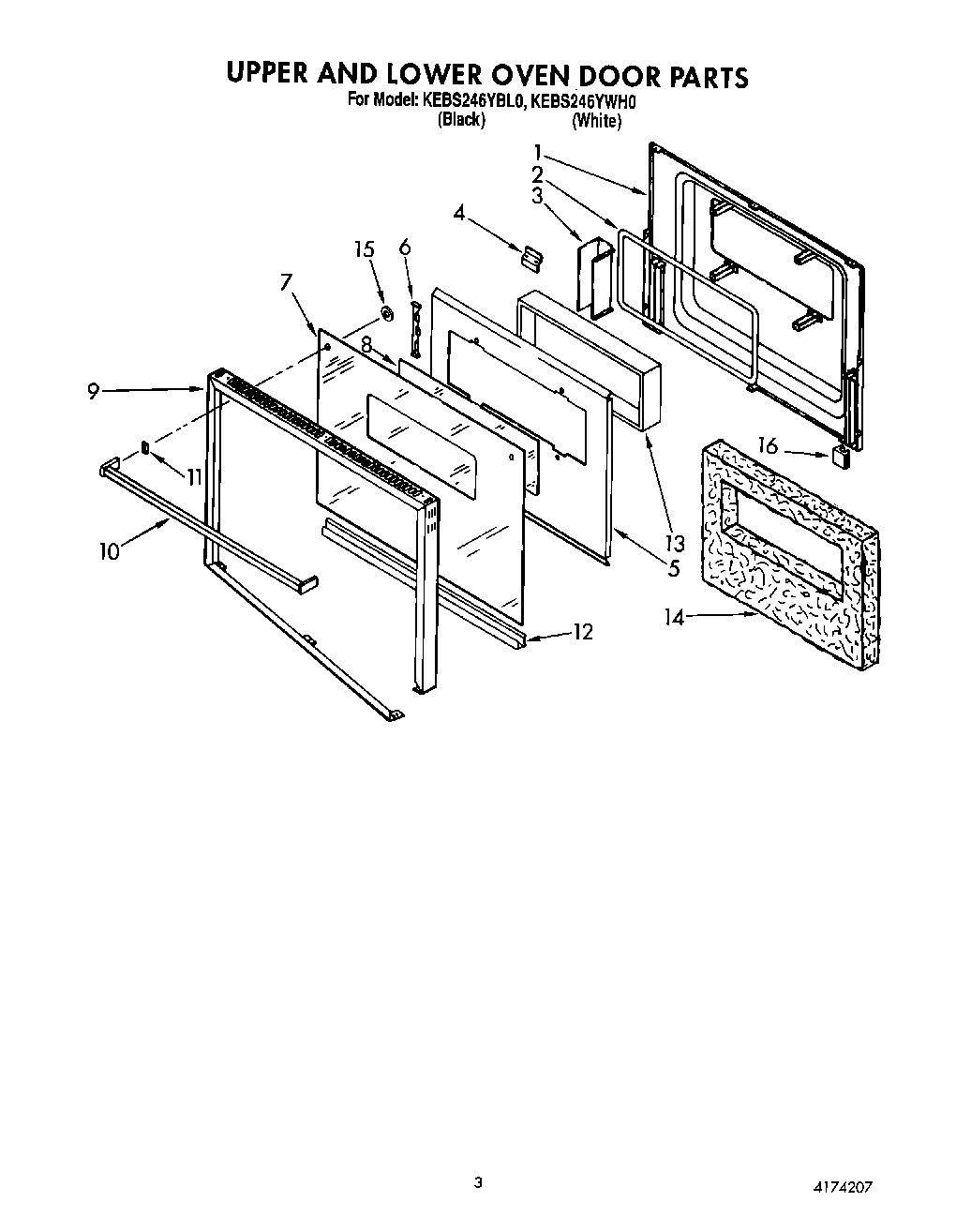

KEBS246YWH0 02 – UPPER AND LOWER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Retainer, Insulation
6Bracket, Glass Mtg.
6Screw
7Glass, Door
8Glass, Reflective
9Frame, Door
10Handle, Door (Black Model)
10Screw
11Screw, Black (2)
11Spacer, Door Handle
13Window Package
14Insulation, Door
15Bushing, Door Handle
15Screw
16Bumper, Door Glass
