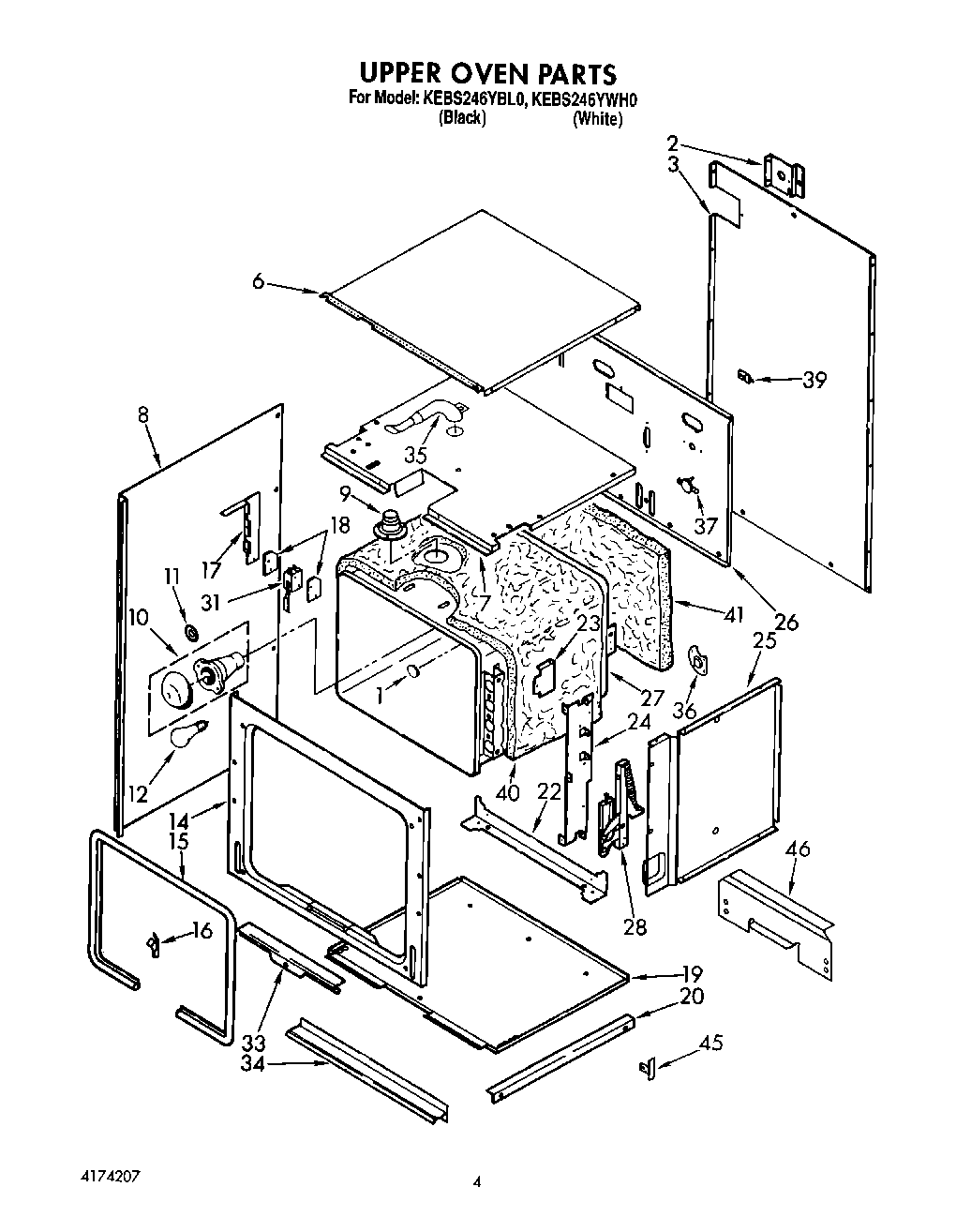

KEBS246YWH0 03 – UPPER OVEN

Products

Position	Product
1	Button, Plug
2	Bracket, Conduit
2	Screw
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Screw (4)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven (Black)
28	Hinge, Door
28	Screw (6)
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Screw (4)
33	SCREW
33	Retainer, Seal
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim
35	Tube, Vent
37	WP90767 Whirlpool Screw
37	Fuse, Safety
39	Screw
39	Cover, Cap Tube
40	Insulation, Wrap
41	WPL 3177870
44	WP3177991 Whirlpool Screw
44	Probe Cover
45	Screw
45	Insert, Middle Vent Trim
46	WPL 3182584
