KEBS246YWH0 04 – LOWER OVEN, OPTIONAL

KEBS246YWH0 04 – LOWER OVEN, OPTIONAL

Written by

in

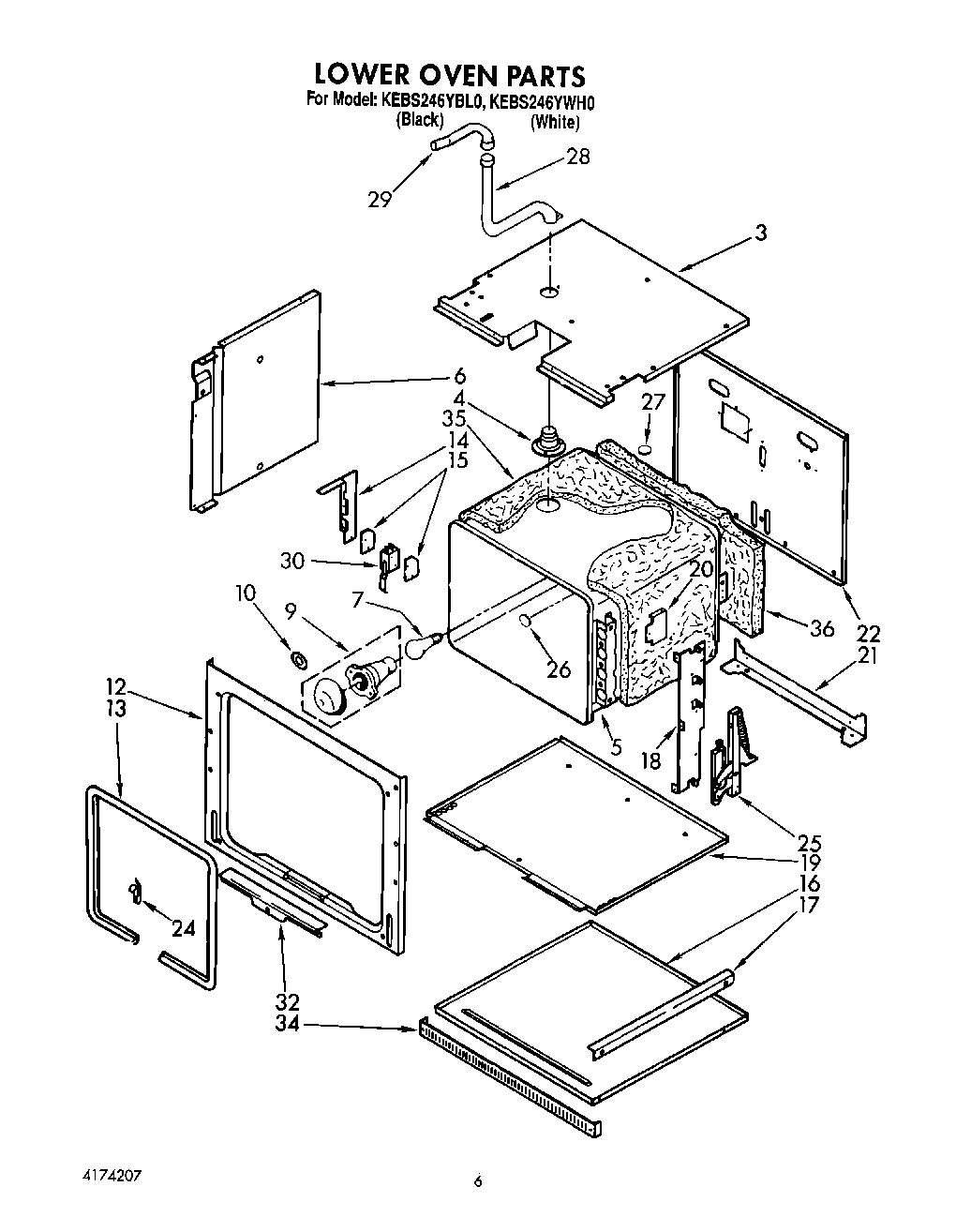

KEBS246YWH0 04 – LOWER OVEN, OPTIONAL

Products

Position	Product
3	Module, Top
4	Tube, Vent
4	Screw (3)
5	Liner, Oven (Black)
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
12	Frame, Door
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Screw (6)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Screw (4)
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	Screw
29	Tube, Vent Female
30	Switch, Door
30	Nut (2)
30	Screw (2)
32	SCREW
32	Screw (4)
32	Retainer, Seal
34	Vent, Lower Trim (Black Model)
35	Insulation, Wrap
36	Wire (14 Ga. 150 c Brown)
36	WPL 832985
36	WPL 350806
36	WPL 3177870
36	1
36	Wire (14 Ga. 200 c Brown)
36	WPL 591014
36	18 Ga. 80~c Rating (Red)
36	Wire (12 Ga. 150 c Black)
36	Wire (14 Ga. 150 c Yellow)
36	Wire (14 Ga. 150 c Orange)
36	Wire (14 Ga. 150 c Green)
36	Wire (14 Ga. 150 c Blue)
36	242831 Whirlpool Oven Wire
36	WP261869 Whirlpool Microwave Paint
36	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
36	Toast
36	Golden Harvest (Uncut)
36	Golden Harvest
36	72113 Whirlpool Touch-Up Paint
36	Almond (Uncut)
36	Leveler (Thinner)
36	WP72107 Whirlpool Touchup
36	799344 Whirlpool Refrigerator Paint
36	72017 Whirlpool Appliance Touch-Up Paint White
36	350956 Whirlpool Spray Assembly
36	Paint, Spray (13 Oz.) (Platinum)
36	Enamal, Toast (1 Qt. Uncut)
36	WP482338 Whirlpool Refrigerator Adhesive
36	72032 Whirlpool Touch Up Paint Black
36	285006 Whirlpool Spray
36	Wire, 25“ Roll (White 14 GA.)
36	Wire, 25` Roll (Red 14 Ga.)
36	Wire, 25` Roll (Black 14 Ga.)
36	WPL 799832
36	350942 Whirlpool Spray Paint
36	WPL 72112
36	Platinum (Uncut)
36	350930 Whirlpool White Spray Paint
