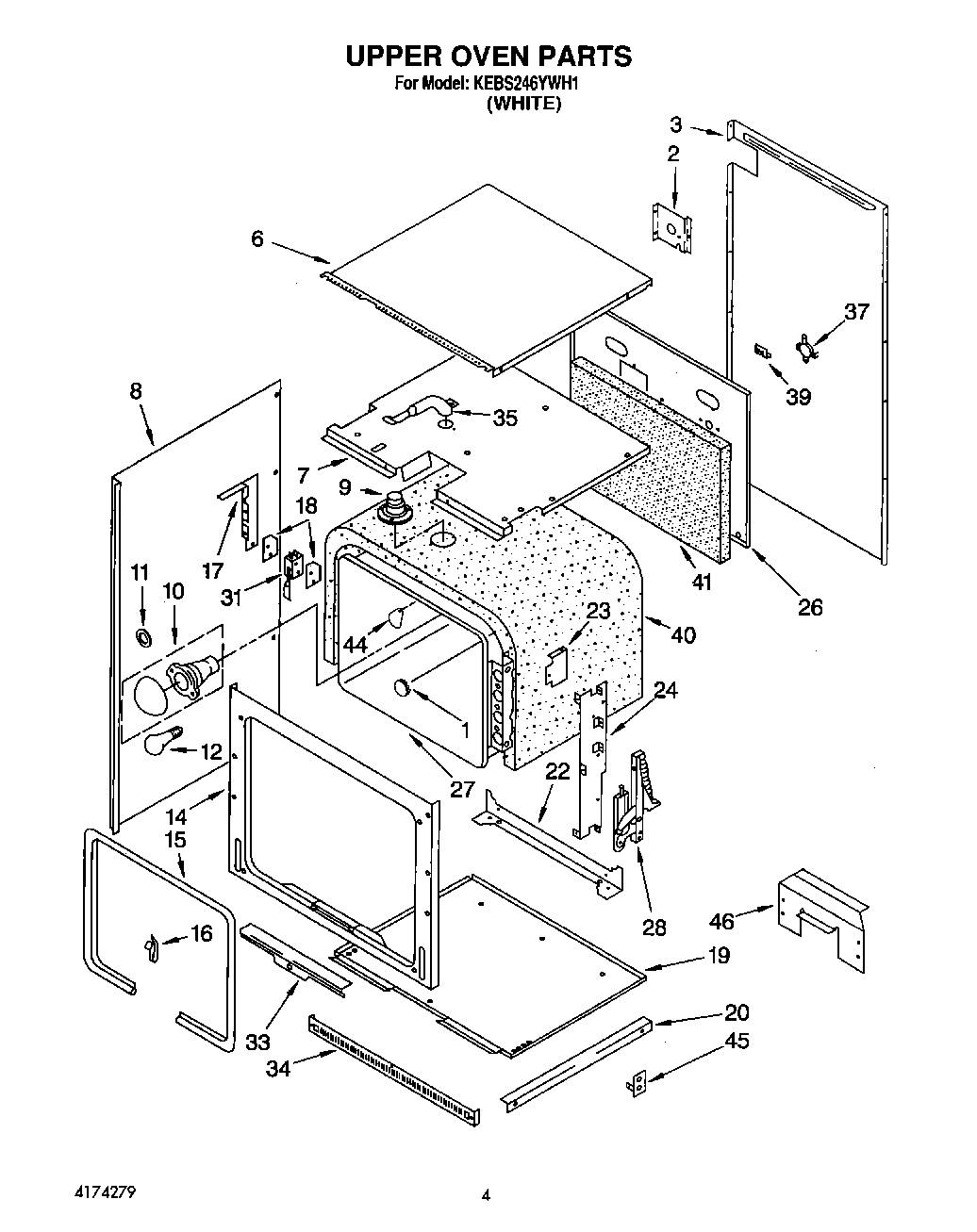

KEBS246YWH1 02 – UPPER OVEN

Products

Position	Product
1	Button, Plug
2	Bracket, Conduit
2	Screw
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Screw (4)
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Screw (4)
33	SCREW
33	Retainer, Seal
34	Screw
34	Vent, Middle Trim (White)
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent
37	Screw
37	Fuse, Safety
39	Cover, Cap Tube
39	Screw
40	WPL 3185550
41	WPL 3177870
44	WP3177991 Whirlpool Screw
44	Probe Cover
45	Screw
45	Insert, Middle Vent Trim
46	WPL 3182584
