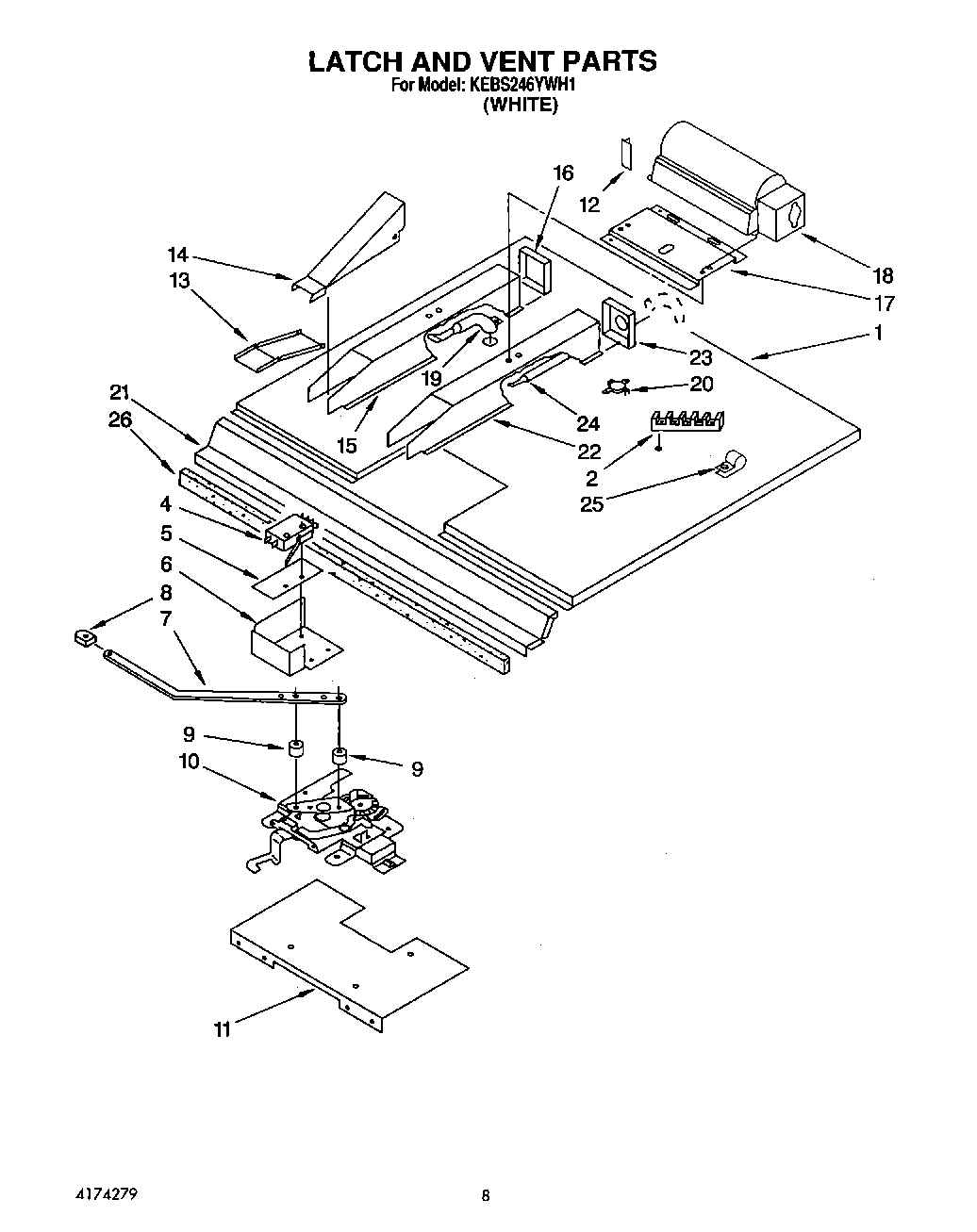

KEBS246YWH1 04 – LATCH AND VENT

KEBS246YWH1 04 – LATCH AND VENT

Written by

in

KEBS246YWH1 04 – LATCH AND VENT

Products

Position	Product
1	Module, Top
2	WP8203546 Whirlpool Terminal Block
4	Switch, latch
4	Screw
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
7	Screw (2)
7	Handle, Latch
7	Clip, Tube
8	Knob, Latch Handle
8	Screw
9	Spacer, Latch Handle
9	Screw (2)
10	Latch, Mechanism
11	Plate, Mounting
12	Baffle-Blower
12	Screw
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Box, Vent
16	End, Vent Box
17	Bracket, Mounting
17	WP3177991 Whirlpool Screw
18	Blower, fan
19	Tube, Vent
20	SPST Thermostat
21	Bushing
21	Shield, Heat
22	Screw, 8-18 X 3/4 (4)
22	Box, Vent
22	Screw
23	End, Box Vent
24	Tube, Vent Lower Oven
25	Screw
25	Clamp, Tube
26	Seal, foam
