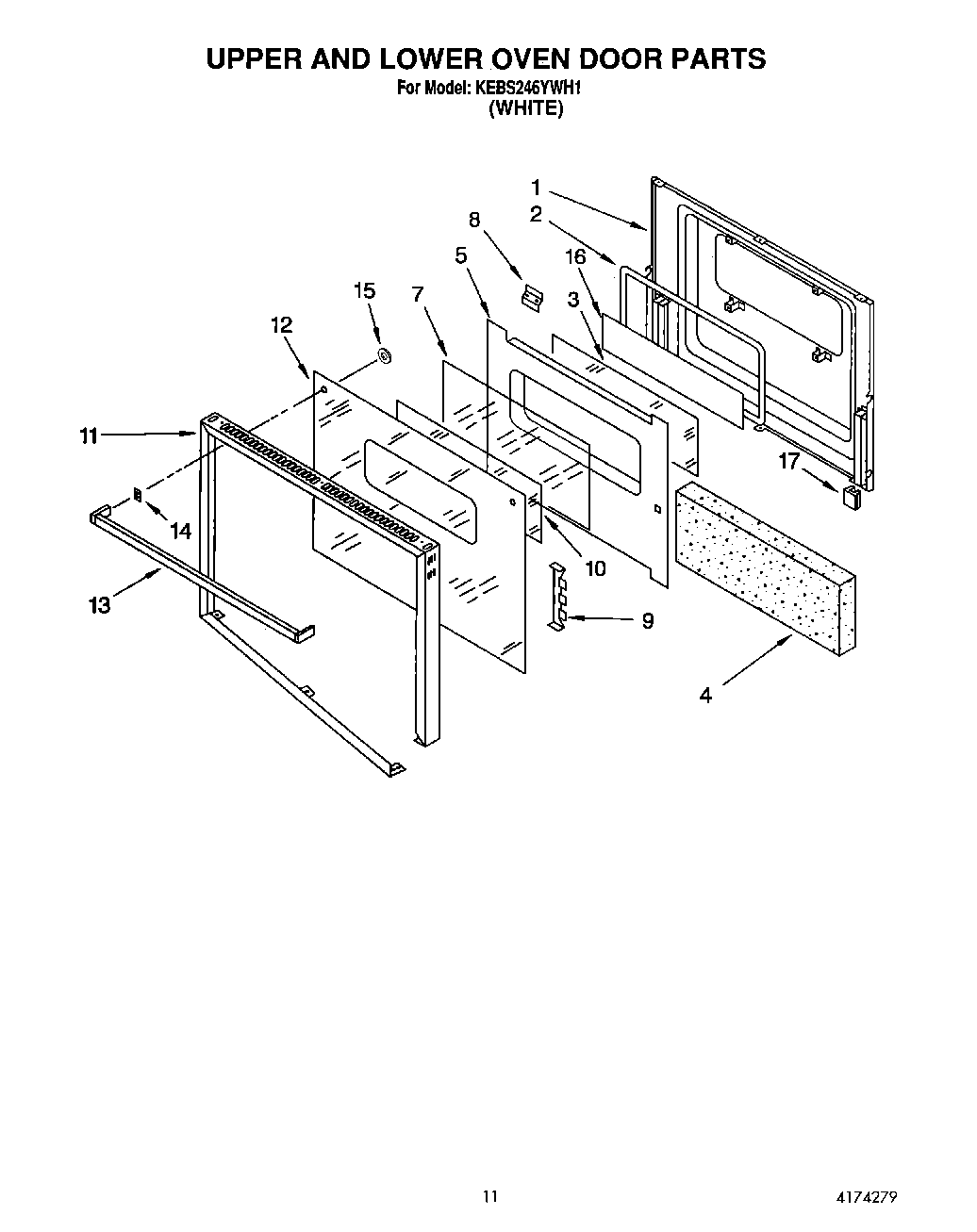

KEBS246YWH1 06 – UPPER AND LOWER OVEN DOOR

KEBS246YWH1 06 – UPPER AND LOWER OVEN DOOR

Written by

in

KEBS246YWH1 06 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Screw
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door
12	Glass, Door (White Model)
13	Handle, Door (White Model)
14	Spacer, Door Handle
15	Bushing, Door Handle
15	Screw
16	Foil-Adhesive Backed
17	Bumper, Door Glass
