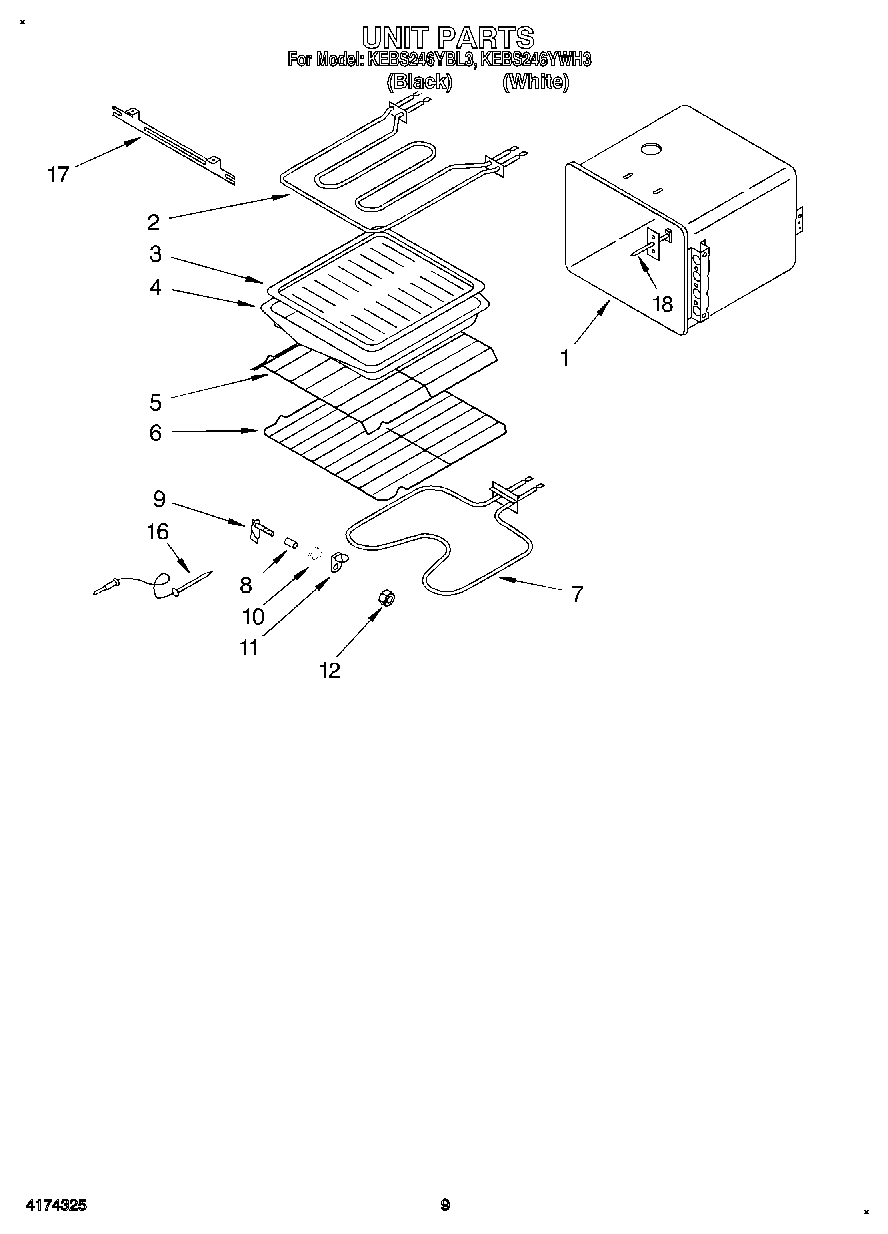

KEBS246YWH3 05 – UNIT

Written by

Products

Position	Product
1	Liner, Oven
2	Element, Broil
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Offset
6	Rack, Oven
7	WP661416 Whirlpool Bake Element
8	Spacer – Tubing
9	Receptacle, Probe
10	Gasket, Meat Probe
11	Jack Cover
12	Lock-Nut, Cvr.Jack
16	Probe
17	Bracket, Element
18	Sensor, Heat
18	Screw (2)
