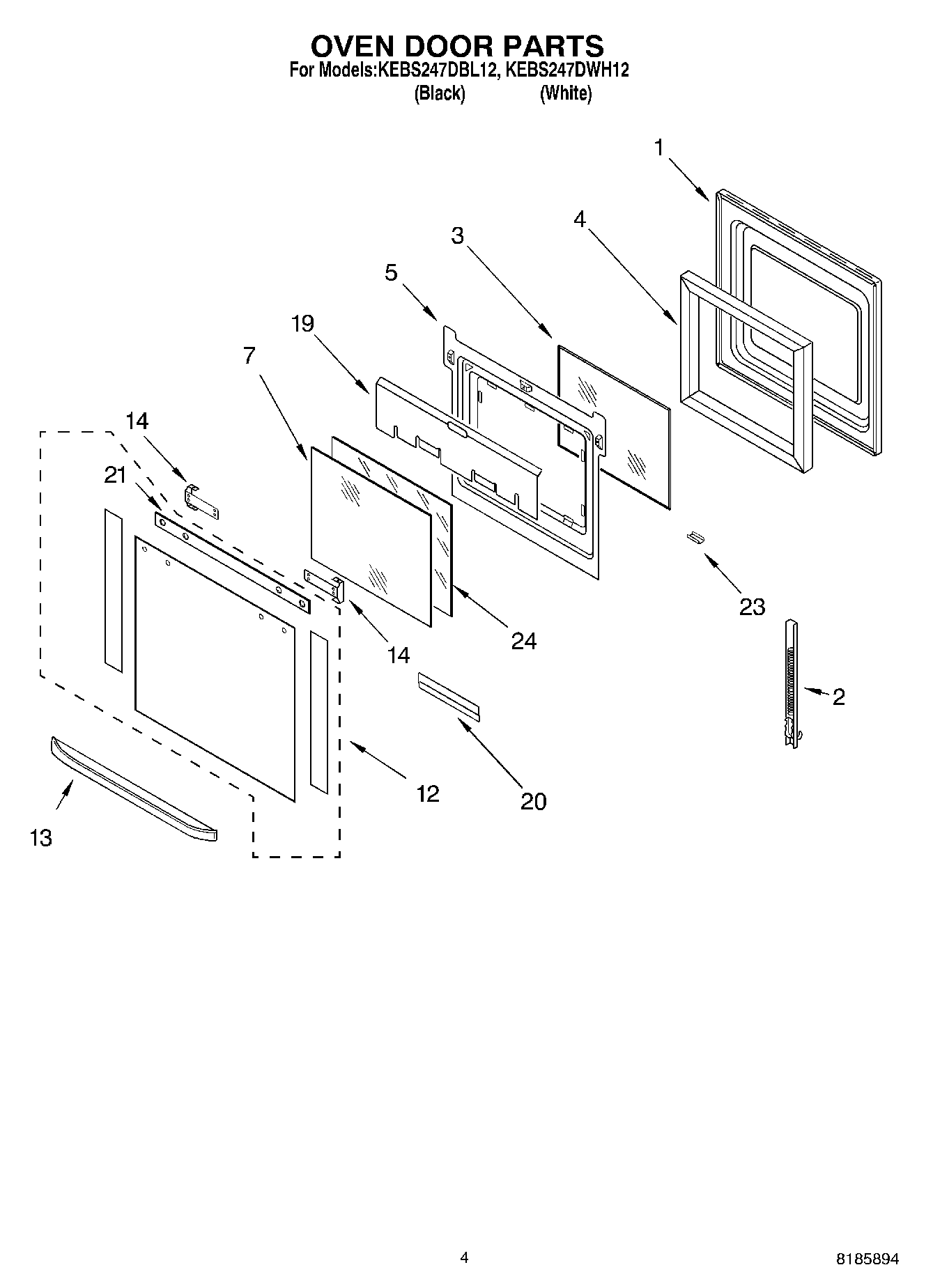

KEBS247DBL12 03 – OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	Hinge, Door (Left Side)
2	WP4449743 Whirlpool Screw
2	Hinge, Door (Right Side)
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
7	Glass, Inner
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
