KEBS247DBL8 01 – OVEN

KEBS247DBL8 01 – OVEN

Written by

in

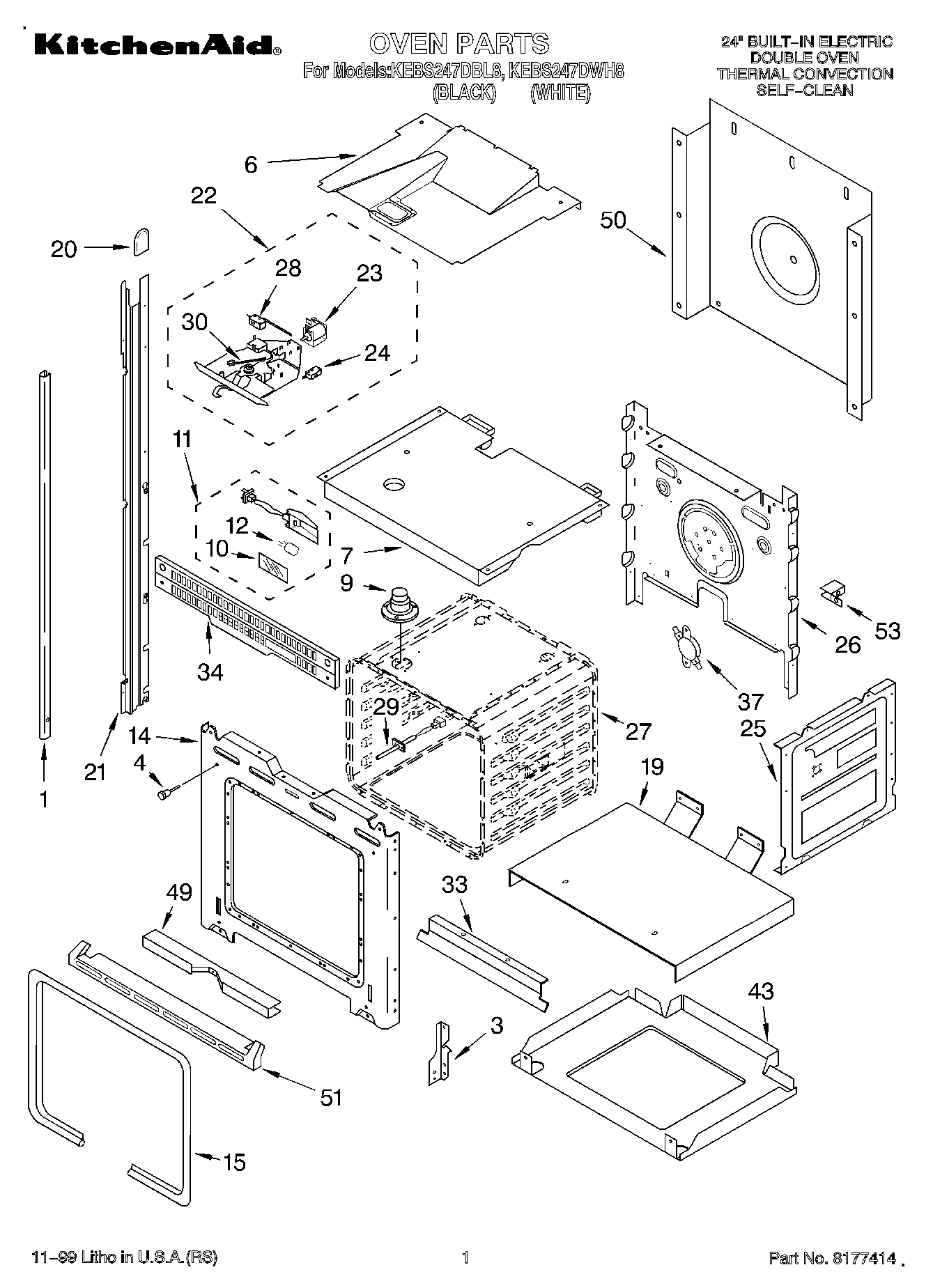

KEBS247DBL8 01 – OVEN

Products

PositionProduct
1Trim, Side (Right Hand) (White Model)
1Trim, Side (Left Hand)) (White Model)
1WP8281236 Whirlpool Screw
1Trim, Side (LH Black)
1Trim, Side (White)
1Trim, Side (RH Black)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
68302347 Whirlpool Vent Panel
74455863 Whirlpool Oven Top Assembly
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14WP4450118 Whirlpool Nut
14Screw
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
194451476 Whirlpool Support
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Latch Assembly
23Solenoid
24Micro Switch N.C.
25Side, Chassis (R.H. & L.H.)
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29Sensor
30Spring, Latch
33Deflector, Vent
34W10358914 Whirlpool Oven Vent
37WP9759242 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4448474
51WPL 4448473
51WP3400832 Whirlpool Screw
53WPL 4449845
53WP4449809 Whirlpool Screw
53WP4450363 Whirlpool Insulation
53WP4449314 Whirlpool Insulation
