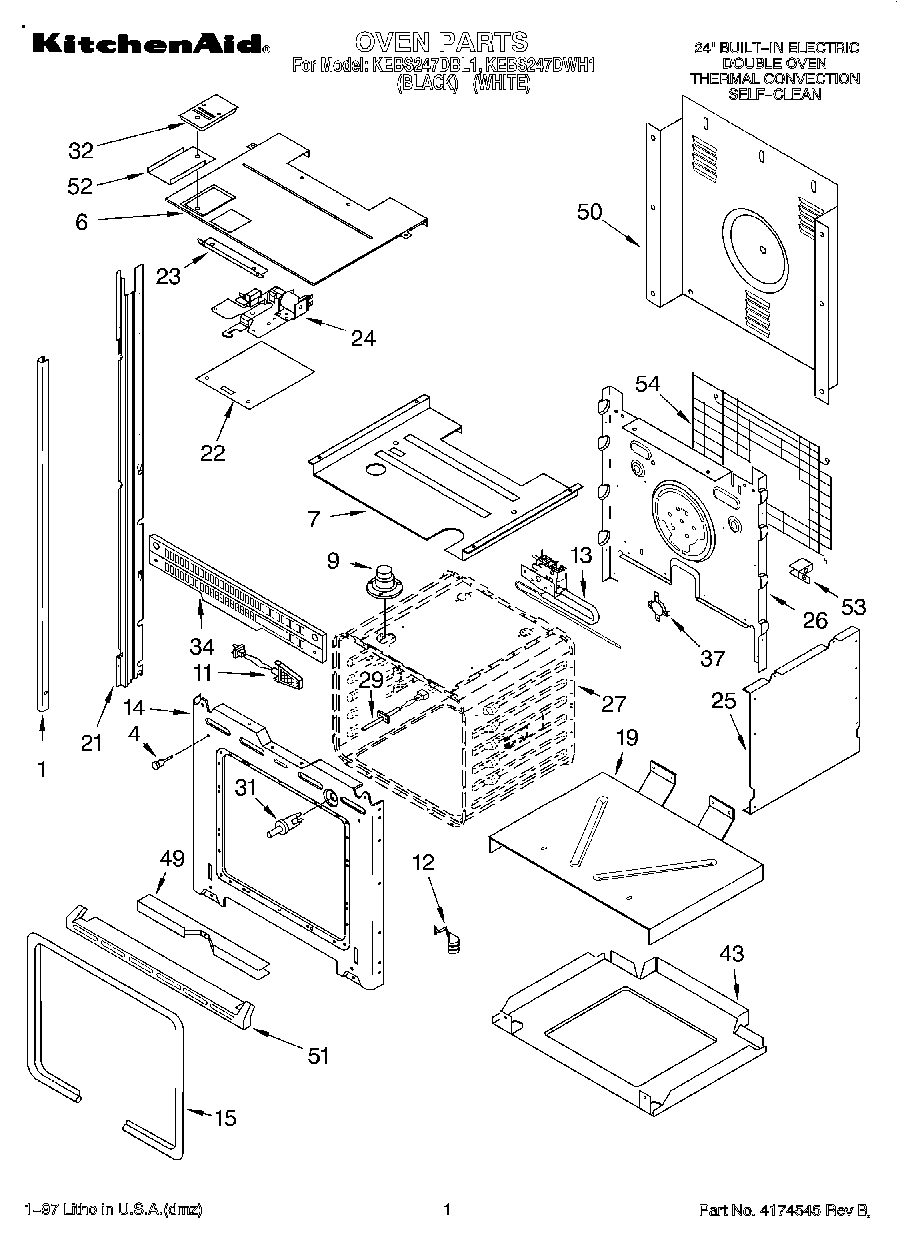

KEBS247DWH1 01 – OVEN

Products

Position	Product
1	Trim, Side (RH Black)
1	Trim, Side (LH Black)
1	Trim, Side (White)
1	WP8281236 Whirlpool Screw
1	Trim, Side (Left Hand)) (White Model)
1	Trim, Side (Right Hand) (White Model)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
12	98005642 Whirlpool Clip
13	Safety Switch (Oven Temp)
14	Screw
14	Frame, Front
15	WP4455380 Whirlpool Door Gasket
19	4451476 Whirlpool Support
21	WP4448444 Whirlpool Grommet
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
22	Shield, Latch
22	Trim, Bottom (Screw)
23	Deflector, Latch
24	Latch, Assy
25	Side, Chassis (R.H. & L.H.)
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
34	Vent, Center
37	WP4450934 Whirlpool Thermostat Assembly
37	WP4450249 Whirlpool Thermostat
43	4450525 Whirlpool Oven Bottom Assembly
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	Cover, Back
51	Trim, Bottom (Black Model)
51	Trim, Bottom (White Model)
51	Screw, (2)
52	Extension, Vent (Lower Oven)
52	Vent Extension
53	WPL 4449845
54	WP4450363 Whirlpool Insulation
54	WP4449314 Whirlpool Insulation
54	WP4449809 Whirlpool Screw
54	Spacer, Harness
