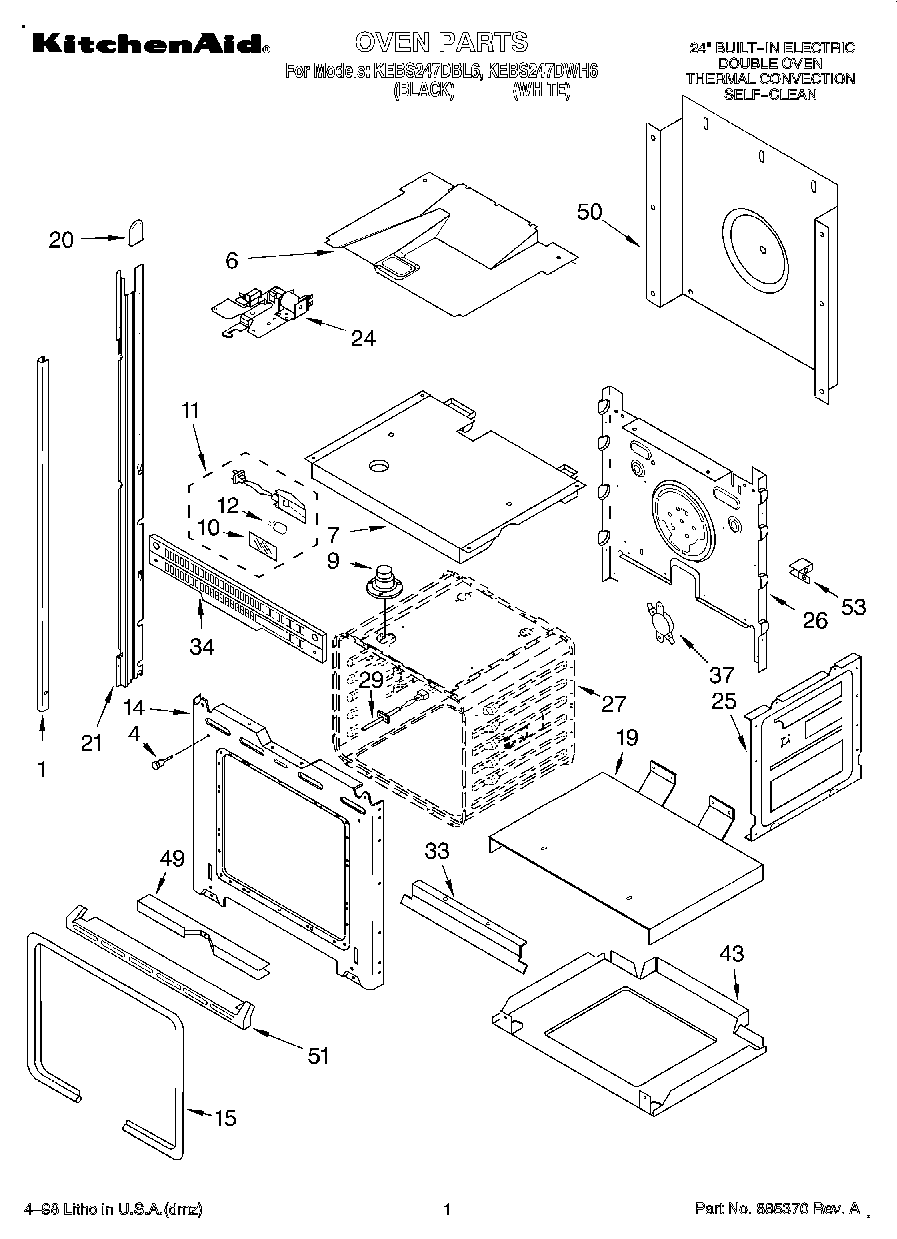

KEBS247DWH6 01 – OVEN

Products

Position	Product
1	Trim, Side (White)
1	Trim, Side (Left Hand)) (White Model)
1	Trim, Side (RH Black)
1	Trim, Side (Right Hand) (White Model)
1	Trim, Side (LH Black)
1	WP8281236 Whirlpool Screw
4	4448520 Whirlpool Oven Bumper
6	8302347 Whirlpool Vent Panel
7	4455863 Whirlpool Oven Top Assembly
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	WP4450118 Whirlpool Nut
14	Screw
14	9760754 Whirlpool Oven Front Frame
15	WP4455380 Whirlpool Door Gasket
19	4451476 Whirlpool Support
20	Cap, Spacer
21	814374 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814373 Whirlpool Oven Rail Mount
24	Solenoid
24	Latch Assembly
24	Microswitch
24	Micro Switch N.C.
25	Side, Chassis (R.H. & L.H.)
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
33	Deflector, Vent
34	W10358914 Whirlpool Oven Vent
37	WP9759242 Whirlpool Thermostat
43	4450525 Whirlpool Oven Bottom Assembly
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	Trim, Bottom (Black Model)
51	Screw, (2)
51	Trim, Bottom (White Model)
53	WP4450363 Whirlpool Insulation
53	WPL 4449845
53	WP4449314 Whirlpool Insulation
53	WP4449809 Whirlpool Screw
