KEBS247DWH6 05 – TOP VENTING, OPTIONAL
Written by
in

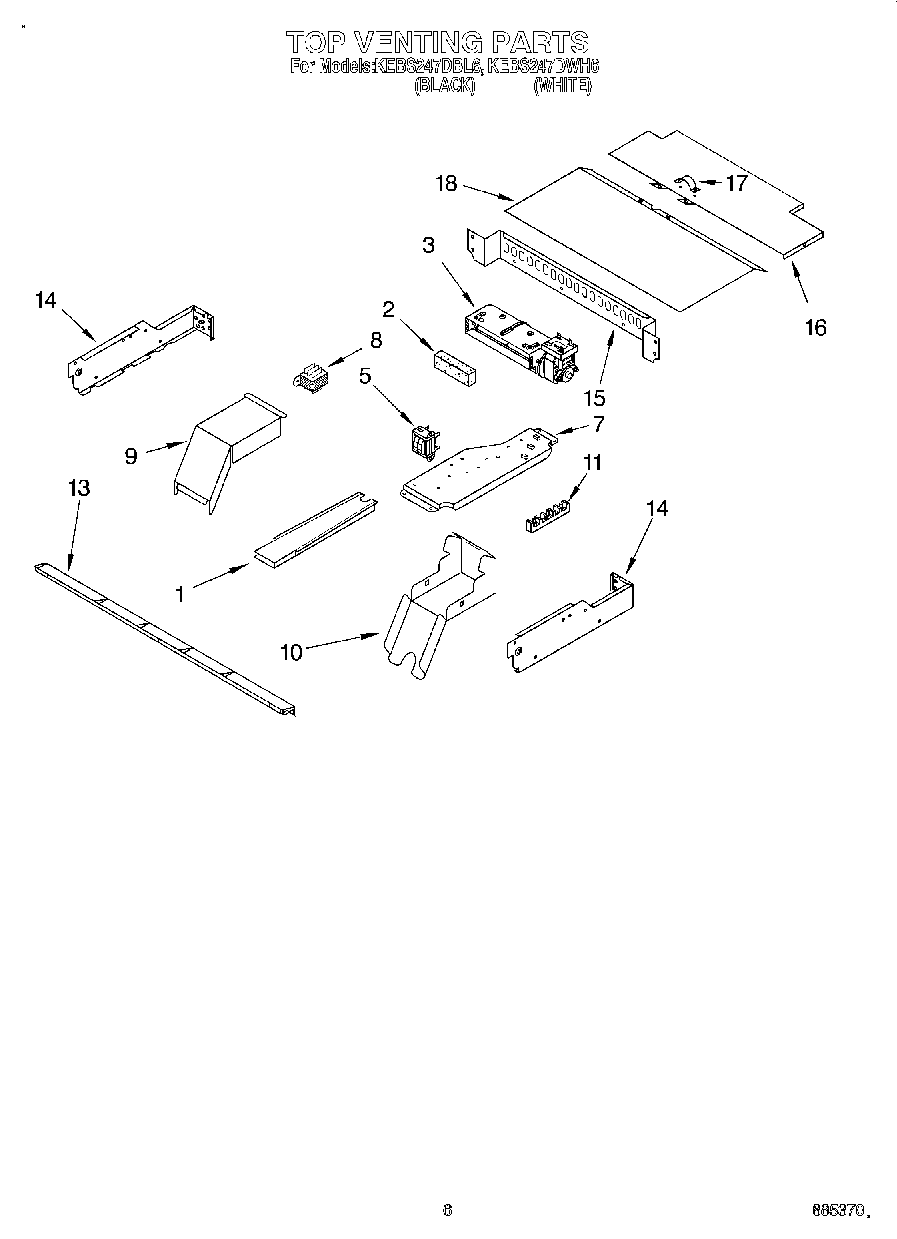

KEBS247DWH6 05 – TOP VENTING, OPTIONAL
Products
Position
Product
1
4451759 Whirlpool Oven Exhaust Vent
2
W10491987 Whirlpool Foam Seal
3
WPW10016550 Whirlpool Blower Cooling Fan
5
WP9760588 Whirlpool Transformer
7
Plate, Mounting
8
Transformer
9
4455178 Whirlpool Oven Top Elbow
10
4455177 Whirlpool Oven Bottom Elbow
11
WP3387230 Whirlpool Screw
11
WP8203546 Whirlpool Terminal Block
13
Vent, (Control Panel)
13
WP4450038 Whirlpool Screw
14
WP4449154 Whirlpool Screw
14
W10755214 Whirlpool Side Complete
14
W10790240 Whirlpool Side Assembly Complete
15
Back, Control
16
4450549 Whirlpool Oven Top Cover
18
Wire (14 Ga. 150 c Yellow)
18
Wire (14 Ga. 150 c Orange)
18
Wire (14 Ga. 150 c Green)
18
Wire (12 Ga. 150 c Black)
18
18 Ga. 80~c Rating (Red)
18
Wire (14 Ga. 200 c Brown)
18
WPL 4454927
18
WPL 591014
18
1
18
4451761 Whirlpool Oven Support Bracket
18
Cover, Top Front
18
261900 Whirlpool Microwave Spray
18
Wire (14 Ga. 150 c Brown)
18
Wire (14 Ga. 150 c Blue)
18
WPW10339879 Whirlpool Wire Tie
18
4450800 Whirlpool Oven Screw
18
4448664 Whirlpool Oven Mounting Bracket
18
Wire, 25“ Roll (White 14 GA.)
18
Wire, 25` Roll (Red 14 Ga.)
18
Wire, 25` Roll (Black 14 Ga.)
18
WP112432 Whirlpool Nut Assembly
18
WP4449809 Whirlpool Screw
18
72017 Whirlpool Appliance Touch-Up Paint White
18
285006 Whirlpool Spray
18
72032 Whirlpool Touch Up Paint Black
18
WP482338 Whirlpool Refrigerator Adhesive
18
WP261869 Whirlpool Microwave Paint
18
242831 Whirlpool Oven Wire
18
WP4456654 Whirlpool Thermal Fuse
18
Spacer, Harness
18
16515 Whirlpool Clip
18
Conduit, Double
18
WPL 4452239
18
WP4448950 Whirlpool Screw
18
814381 Whirlpool Pin
18
350930 Whirlpool White Spray Paint
←
