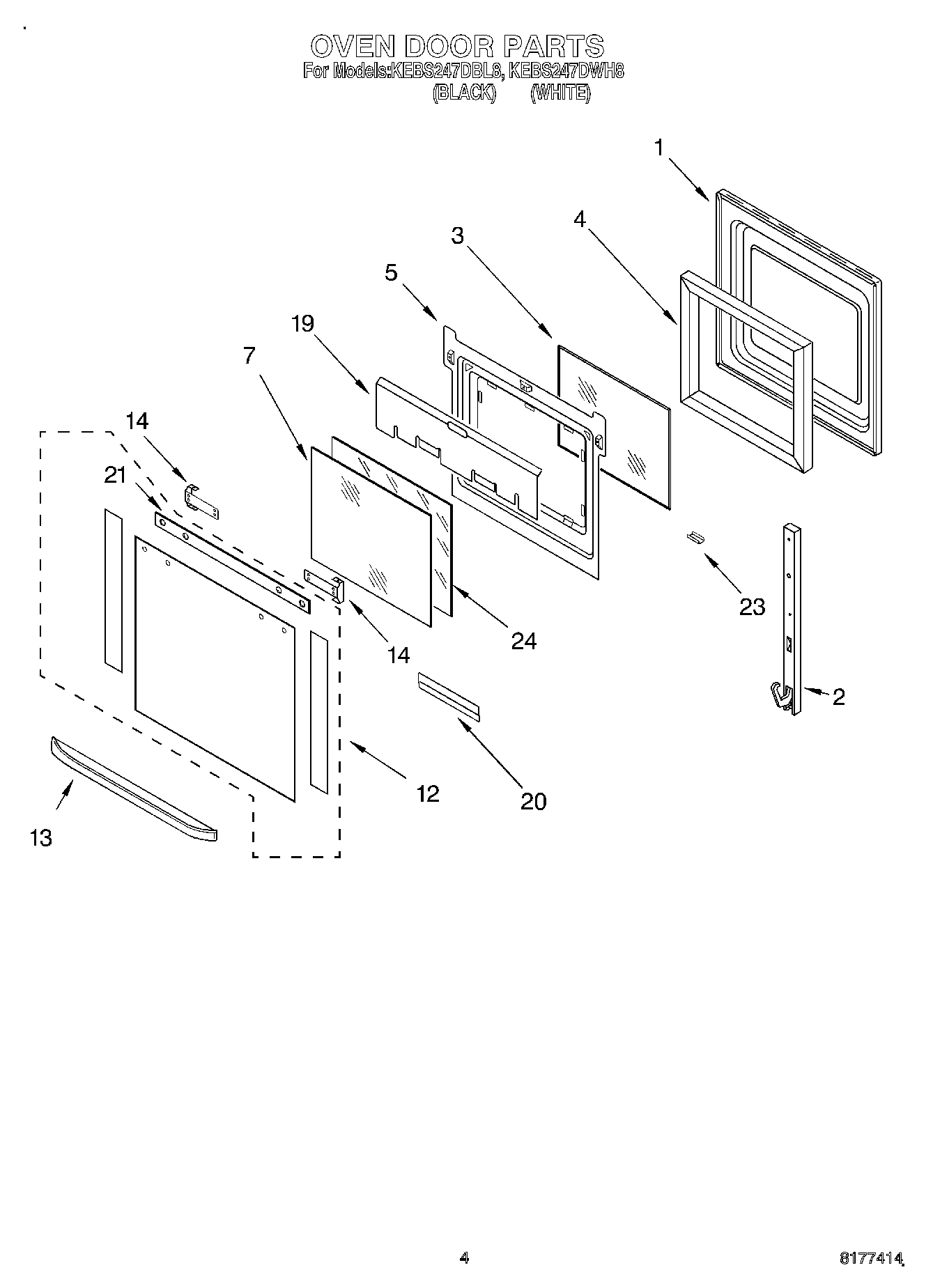

KEBS247DWH8 03 – OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455523 Whirlpool Oven Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	Retainer, Glass
7	Glass, Inner
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
13	Door Handle (Black Model)
13	Door Handle (White Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
