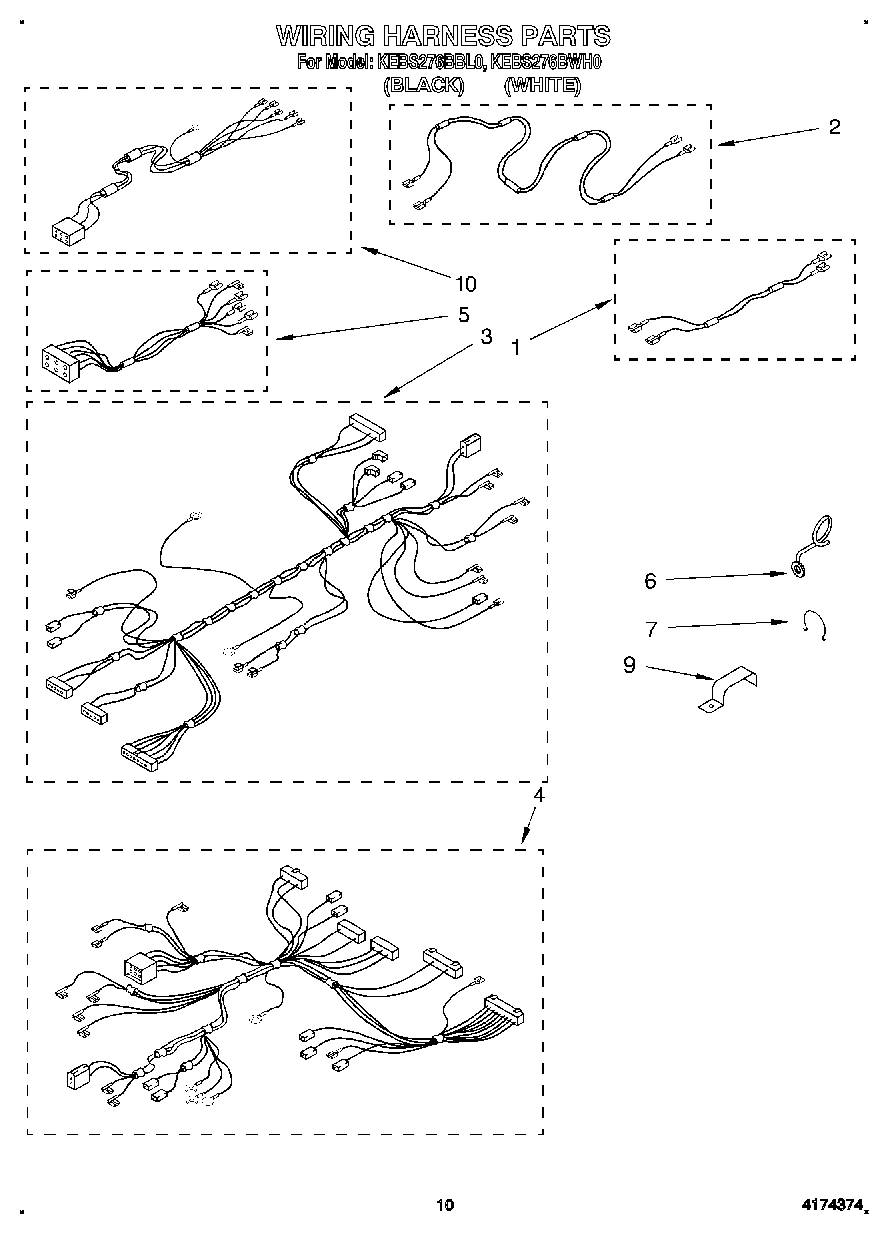

KEBS276BBL0 07 – WIRING HARNESS

Products

PositionProduct
1Wiring Harness (Door Switch) (Upper)
2Wiring Harness (Door Switch) Lower)
3Harness Wire (Lower Oven)
4Harness Wire (Upper Oven)
5Harness, Wire (Latch Assy.)
6Screw
6Standoff, Wire
716515 Whirlpool Clip
97111P002-60 Whirlpool Clamp
10Harness, Wire Latch Assy. (Lower Oven)
