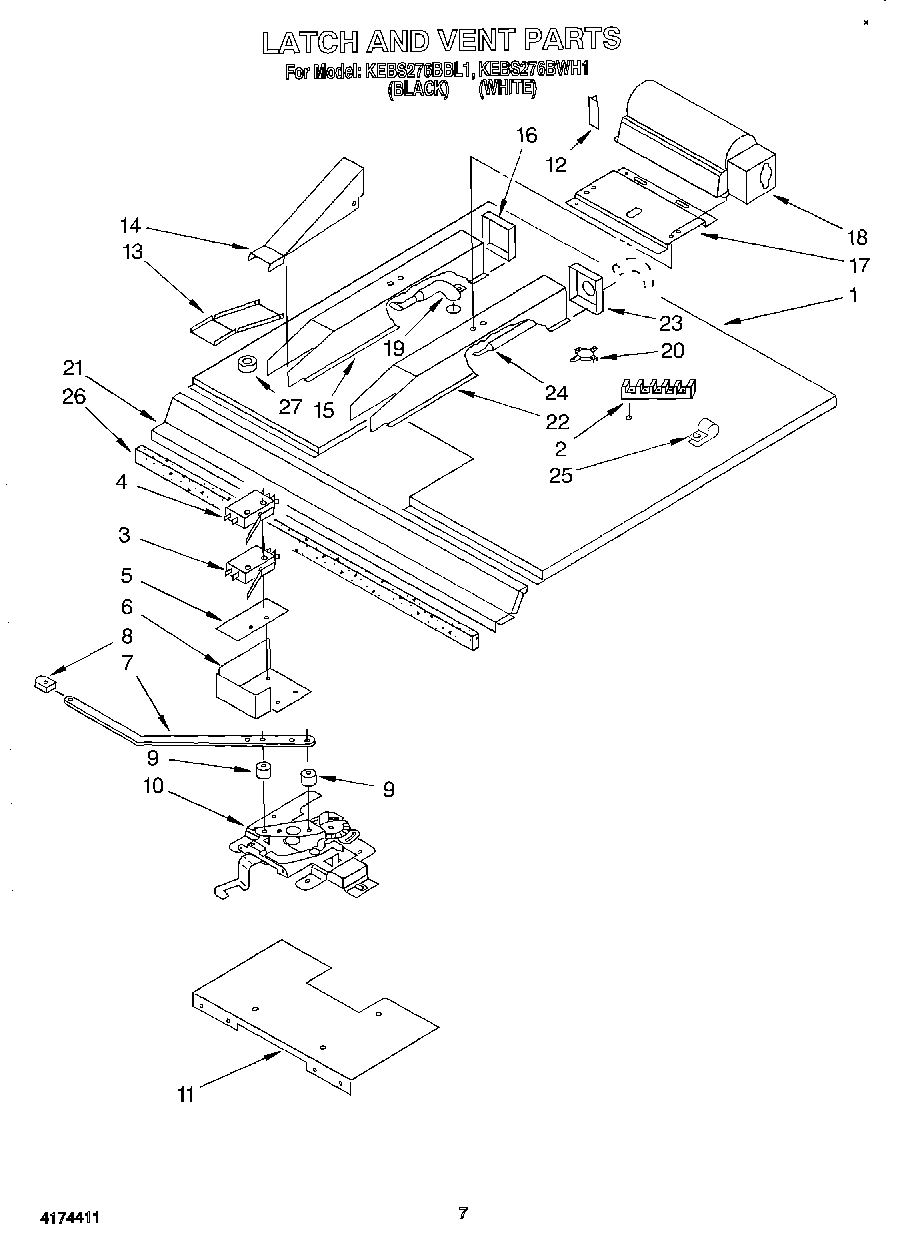

KEBS276BBL1 05 – LATCH AND VENT

Products

Position	Product
1	Module, Top
2	Screw (10-12 x .875)
2	WP8203546 Whirlpool Terminal Block
3	Switch, latch
4	Screw
4	Switch, Latch
4	Screw,
5	Insulator, Switch
6	Guard, Latch
7	Screw
7	Handle, Latch
7	Handle, Latch
8	Knob, Latch Handle
8	Screw
9	Spacer, Latch Handle
9	Screw (2)
10	Latch, Mechanism
11	Plate, Mounting
12	Baffle-Blower
12	Screw
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Screw, 8-18 X 3/4 (4)
15	Screw
15	Box, Vent
16	End, Vent Box
17	Bracket, Mounting
18	Blower, fan
19	Tube, Vent
20	SPST Thermostat
21	Shield, Heat
21	WP3177991 Whirlpool Screw
22	Box, Vent
23	End, Box Vent
24	Tube, Vent Lower Oven
25	Clamp, Tube
25	Screw
26	Seal, foam
27	Bushing
