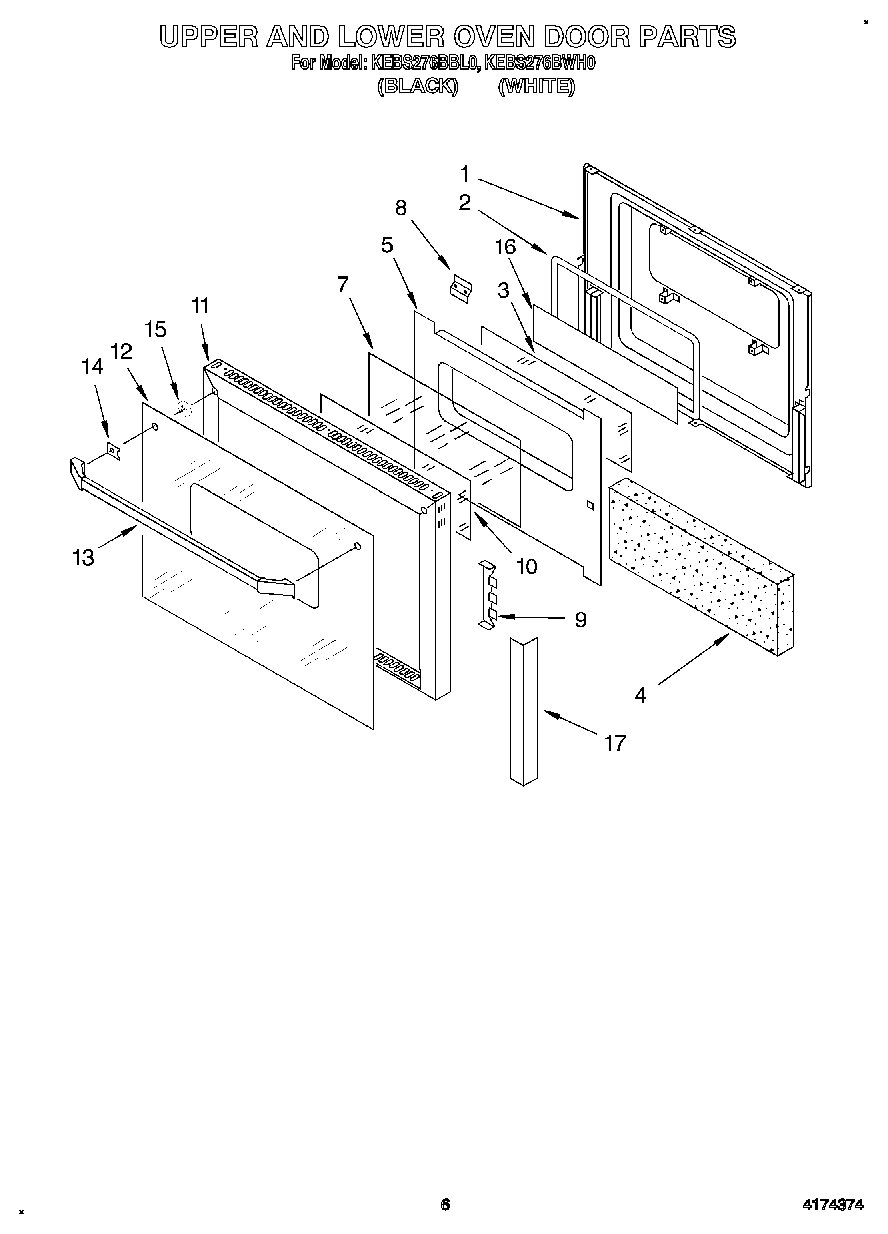

KEBS276BWH0 04 – UPPER AND LOWER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Vent, Lower Trim (Screw (2))
5Retainer, Insulation
7Glass, Reflective
8Latch, Strike
9Retainer, Glass
9Screw
10Glass, Clear
11Frame, Door (White Model)
11Frame, Door (Black Model)
12Glass, Door (White Model)
12Glass, Door (Black Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Spacer, Door Handle
15Bushing, Door Handle
15Screw
15Screw, 10-32 x 1/2
16Foil, Adhesive
17Foil-Adhesive
