KEBS276BWH1 03 – CONTROL PANEL, LITERATURE

KEBS276BWH1 03 – CONTROL PANEL, LITERATURE

Written by

in

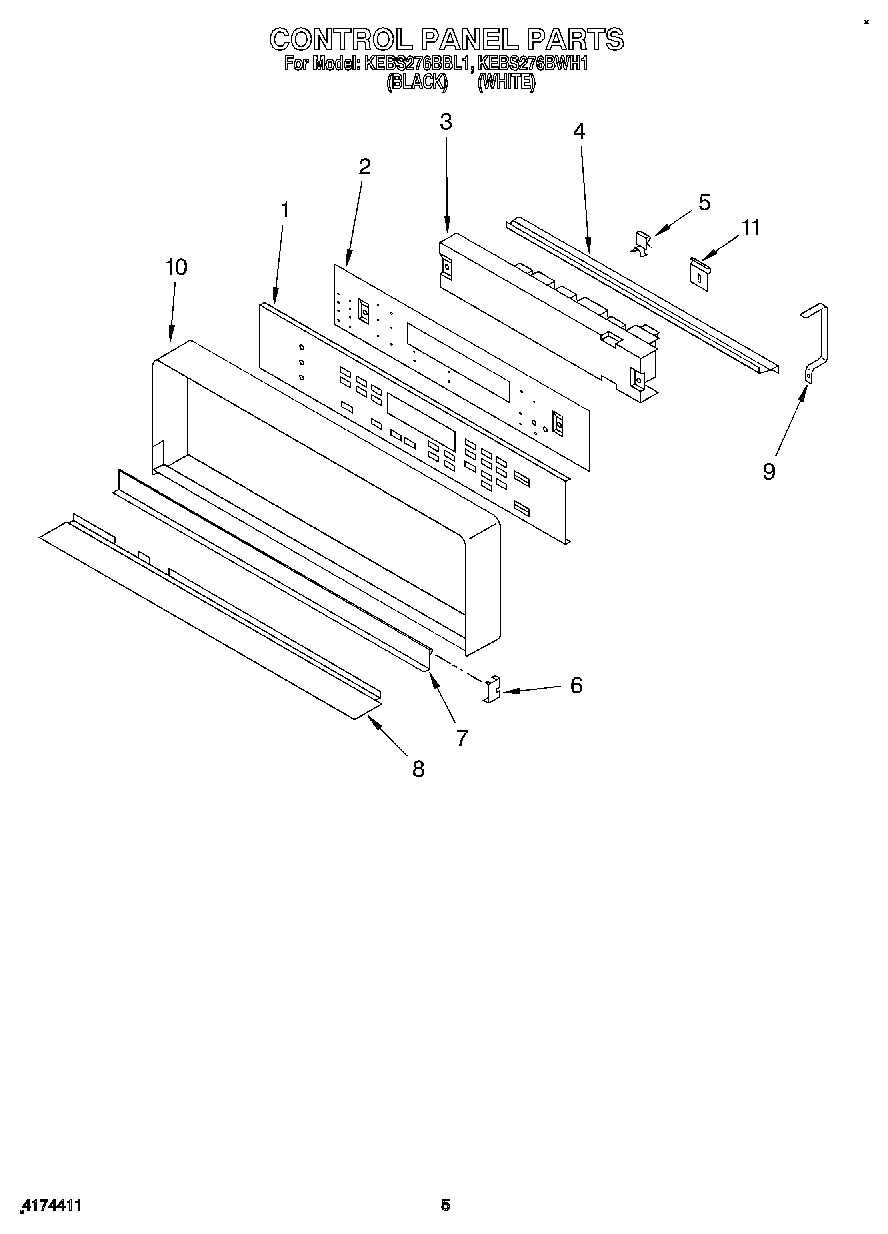

KEBS276BWH1 03 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Instructions
WPL LIT3188200
WPL LIT3185963
1Membrane, Switch (Black Model)
1Membrane, Switch (White Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (White)
7Door, Latch Handle (Black)
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel (White Model)
10Frame, Control Panel (Black Model)
11Clip, Control Frame
11Screw
11Screw
