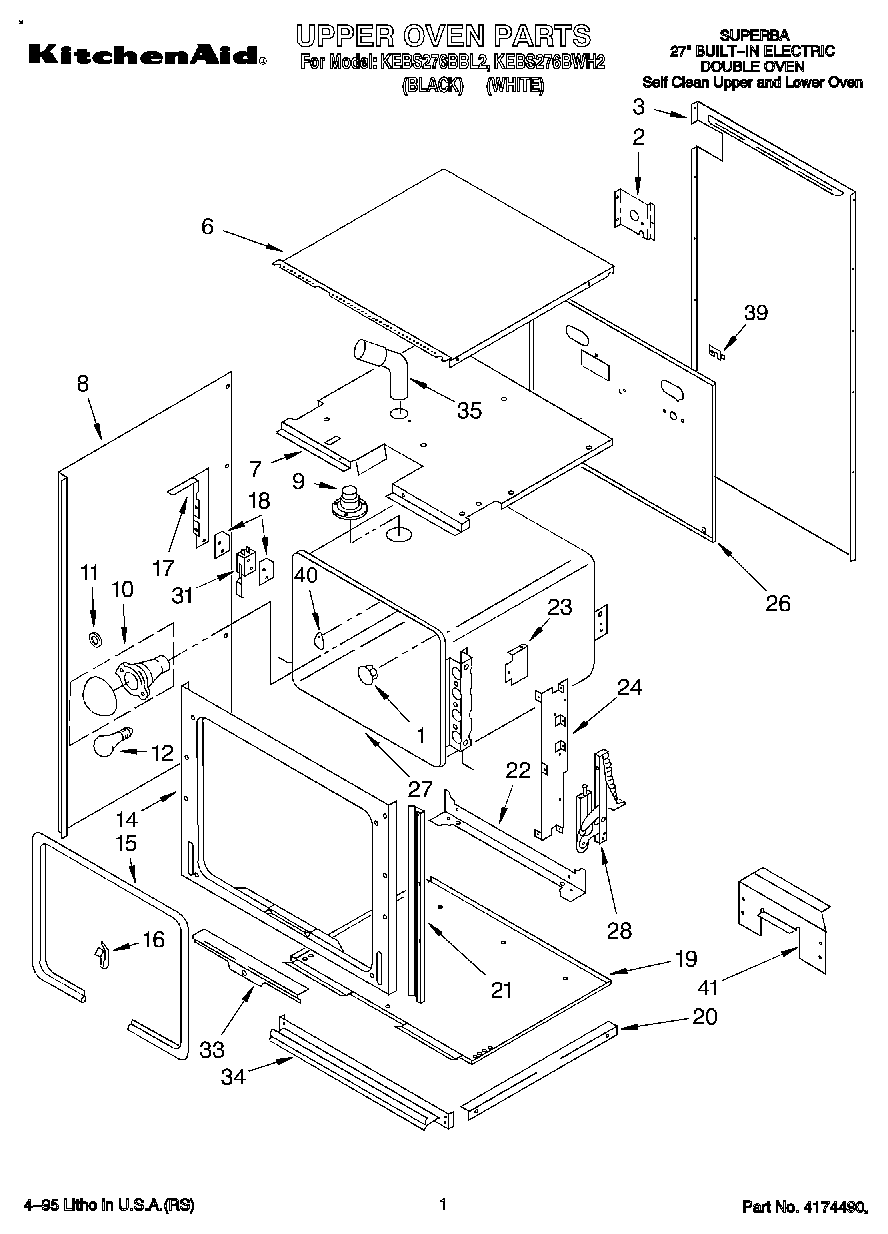

KEBS276BWH2 01 – UPPER OVEN, OPTIONAL

KEBS276BWH2 01 – UPPER OVEN, OPTIONAL

Written by

in

KEBS276BWH2 01 – UPPER OVEN, OPTIONAL

Products

Position	Product
1	Button, Plug
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (2)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Trim, Door Side (2) (Black Model)
21	Side Trim, Door (2) (White Model)
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
26	Back, Module
26	Screw
27	Liner, Oven
28	Hinge, Door
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (White Model)
34	Vent, Middle Trim (Screw (2))
34	Vent, Middle Trim (Black Model)
34	Screw (4)
35	Tube, Vent
39	Screw
39	Cover, Cap Tube
40	Probe Cover
41	1
41	Wire (14 Ga. 200 c Brown)
41	18 Ga. 80~c Rating (Red)
41	Wire (12 Ga. 150 c Black)
41	WPL 350806
41	WPL 591014
41	WPL 832985
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	Golden Harvest (Uncut)
41	Wire (14 Ga. 150 c Orange)
41	350930 Whirlpool White Spray Paint
41	350956 Whirlpool Spray Assembly
41	72017 Whirlpool Appliance Touch-Up Paint White
41	799344 Whirlpool Refrigerator Paint
41	WP72107 Whirlpool Touchup
41	Leveler (Thinner)
41	Almond (Uncut)
41	Insulation, Oven
41	Wire (14 Ga. 150 c Yellow)
41	72113 Whirlpool Touch-Up Paint
41	Wire (14 Ga. 150 c Green)
41	WPL 72112
41	350942 Whirlpool Spray Paint
41	WPL 799832
41	Wire, 25` Roll (Black 14 Ga.)
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25“ Roll (White 14 GA.)
41	285006 Whirlpool Spray
41	72032 Whirlpool Touch Up Paint Black
41	Platinum (Uncut)
41	Enamal, Toast (1 Qt. Uncut)
41	Wire (14 Ga. 150 c Brown)
41	Wire (14 Ga. 150 c Blue)
41	WP261869 Whirlpool Microwave Paint
41	242831 Whirlpool Oven Wire
41	Golden Harvest
41	WPL 3183752
41	Toast
41	Paint, Spray (13 Oz.) (Platinum)
41	WP482338 Whirlpool Refrigerator Adhesive
