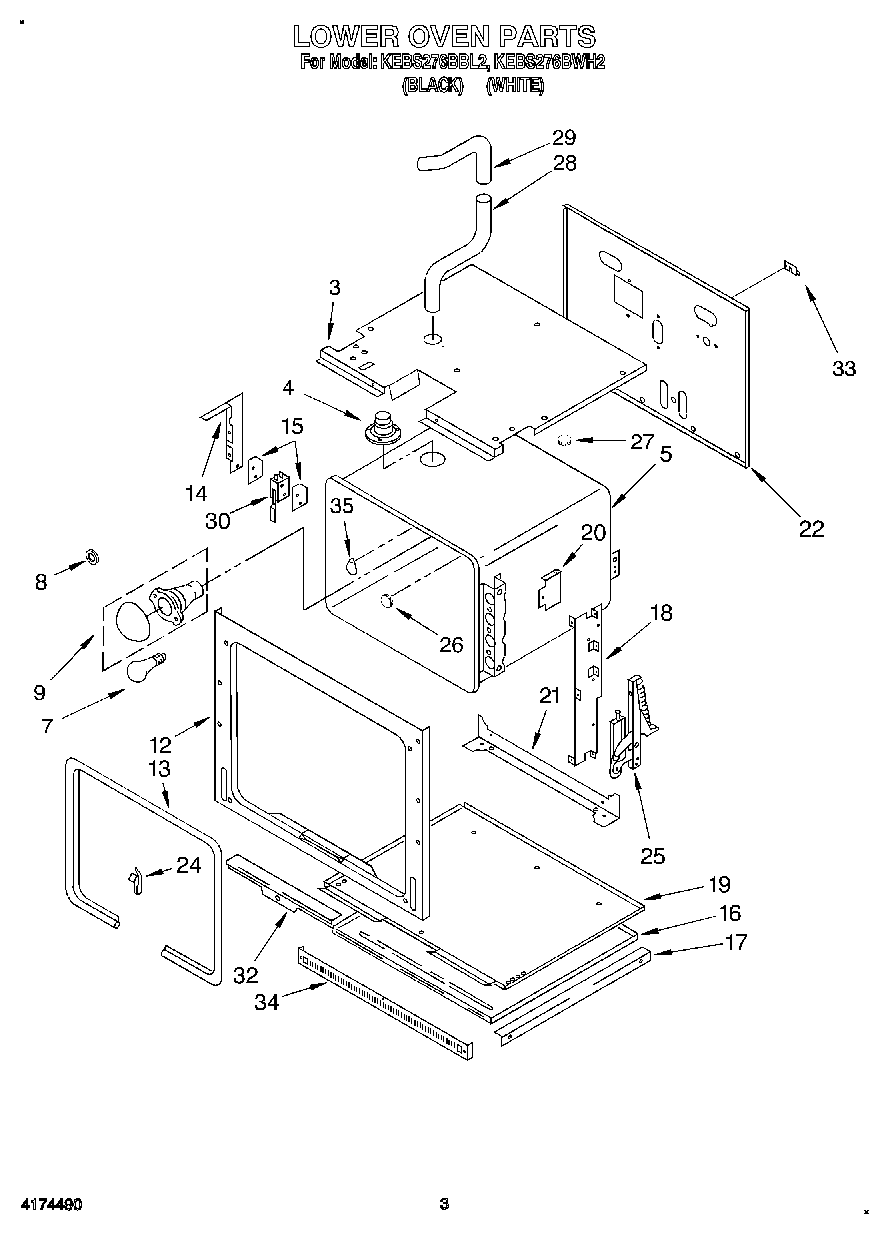

KEBS276BWH2 02 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Tube, Vent
4	Screw (2)
5	Liner, Oven
7	RANGE ONLY 40W 120V APPL BULB
8	WP3184533 Whirlpool Range Light Lens Gasket
9	W11594027 Whirlpool Range Oven Light Socket
12	Frame, Front
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
20	Screw (6)
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	Screw
29	Tube, Vent Female
30	Switch, Door
30	Nut (2)
30	Screw (2)
32	Retainer, Seal
33	Cover, Cap Tube
34	Vent, Lower Trim (Black)
34	Trim, Lower Vent (White Model)
35	Insulation, Oven
35	Probe Cover
