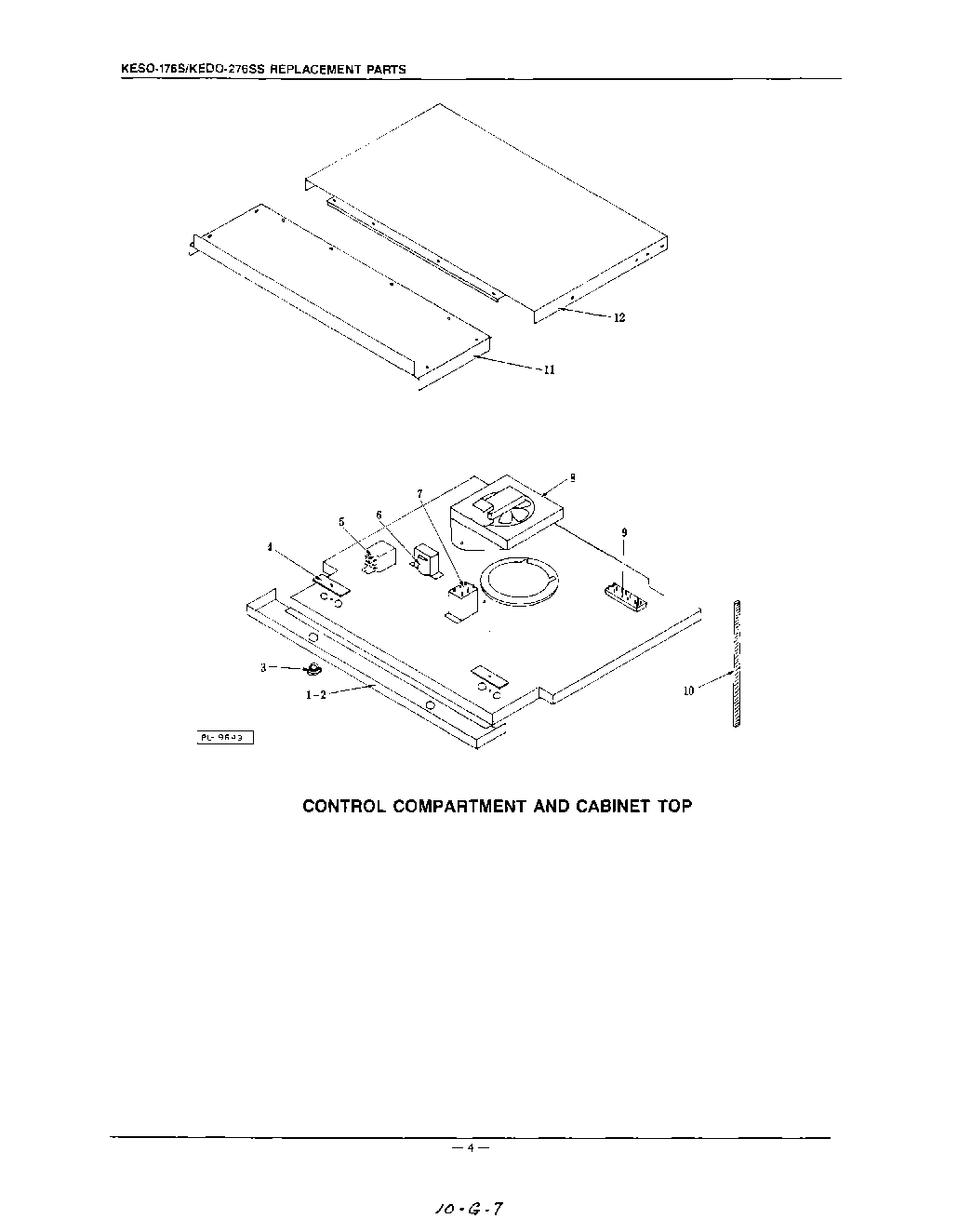

KEBS276SBL0 04 – CONTROL COMPARTMENT AND CABINET TOP

Written by

Products

Position	Product
1	Sandwich Panel Assy. (KESO-176)
2	Sandwich Panel Assy. (KEDO-276)
3	Bushing
4	Hole Cover
5	Relay
6	Transformer, Meat Probe KESO-145/175, KEDO-245/275
7	Relay, Meat Probe KESO-145/175, KEDO-245/275
8	Blower Assy
9	Terminal Block, Power Supply
10	Conduit, 1/2 x 56
11	Cabinet Top, Front KESO-170/175, KEDO-270/275
12	Cabinet Top, Rear KESO-170/175, KEDO-270/275
