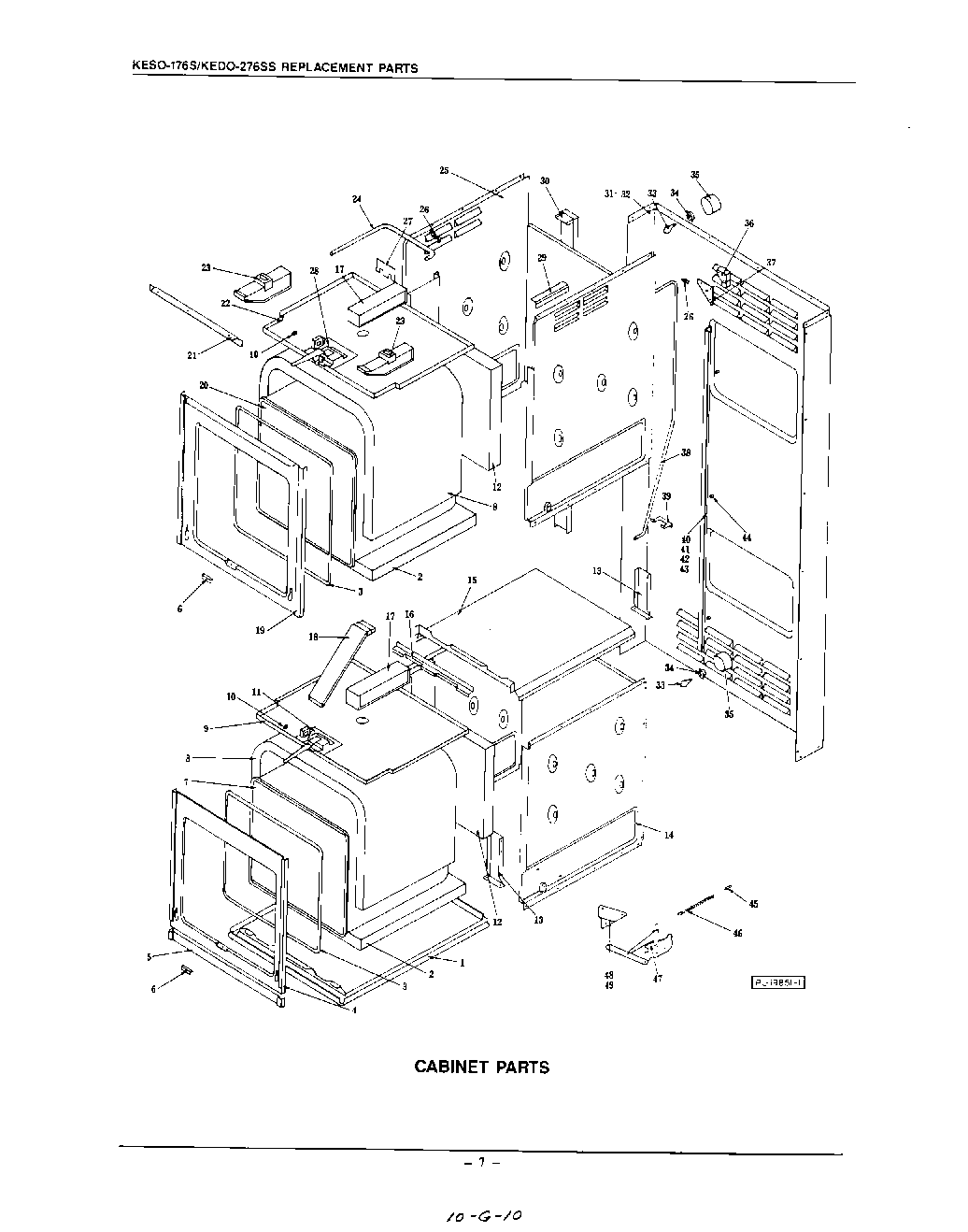

KEBS276SBL0 06 – CABINET

Products

Position	Product
1	Main Bottom
2	Insulation, Bottom
3	Door Gasket KESO-170/175, KEDO-270/275
4	Front Frame, Lower Oven (KEDO-276)
5	Bottom Trim
6	Cover – Seal End
7	Oven Liner (Lower Oven) (See Page 10)
8	Insulation, Top & Sides
10	Knob, Latch Lever
11	Latch Assembly (See Page 6 For Further Breakdown)
12	Insulation, Rear
13	Rear Anchor
14	Cabinet Side – Lower Ov
15	WPL CC20050
16	WPL CC32307
17	WPL CC71633
18	WPL CC32424
19	Front Frame – Upper Oven (KEDO-276)
20	Oven Liners, Single or Upper Oven (See Page 10)
21	WPL CC31734
22	Compartment Top – Upper Oven (KEDO-276)
23	Vent Box
24	WPL CC70863
25	WPL 3052484
26	WPL CC22045
27	WPL CC32220
28	Latch Assembly (See Page 6)
29	WPL 3053511
30	WPL CC32284
31	Cabinet Back (KESO-176)
32	WPL CC22143
33	WPL BL27
34	WPL CC566083
35	WPL CC22022
36	WPL 305104
37	WPL CC19760
38	WPL CC71196
39	WPL CC31876
40	WPL 3050281
41	WPL 3050291
42	WPL 3050282
43	WPL 3050292
44	WPL CC71194
45	WPL CC22058
46	WPL CC606517
47	WPL CC22049
48	WPL CC22054
