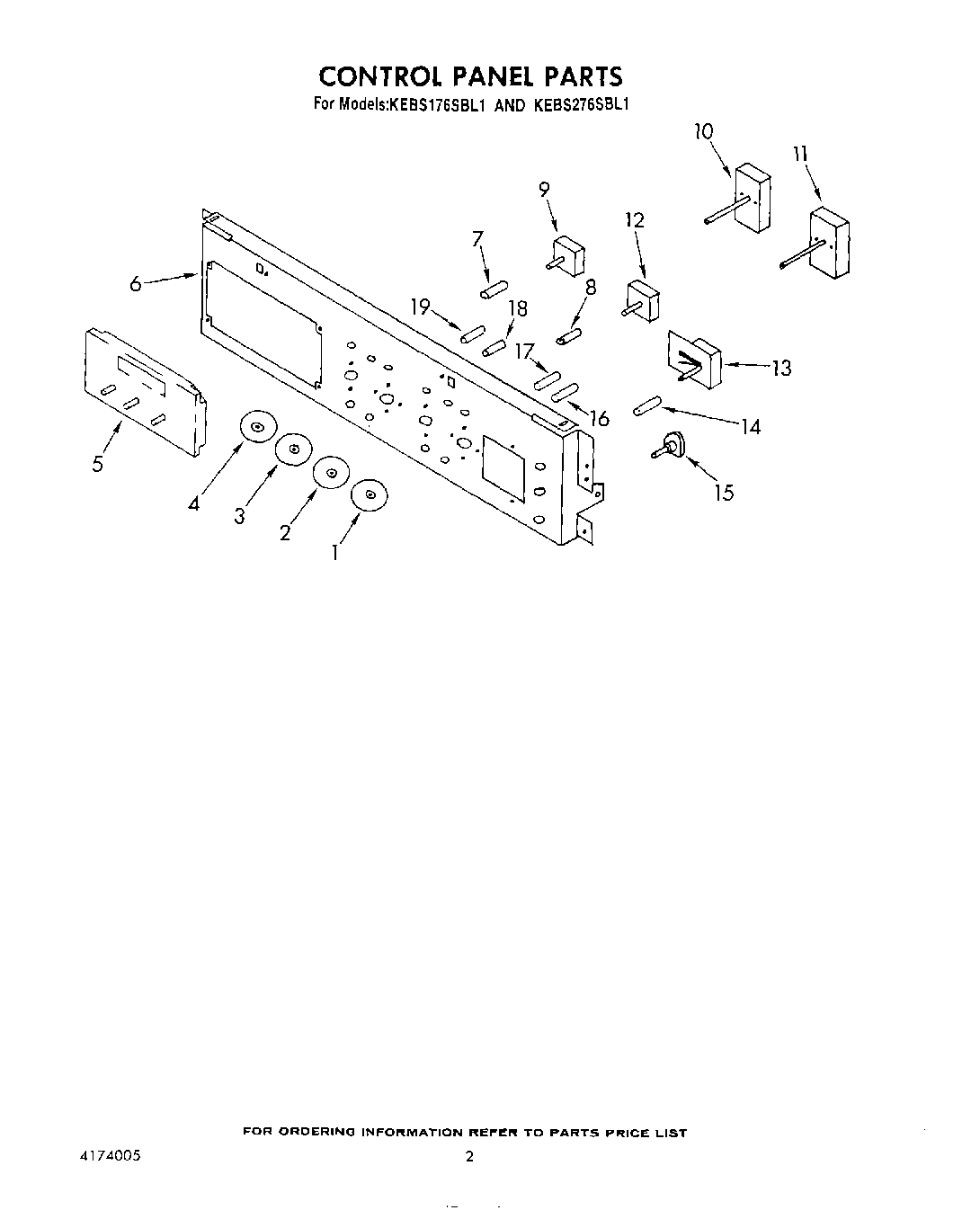

KEBS276SBL1 02 – CONTROL PANEL

Products

PositionProduct
2Selector Disc
3Thermostat Disc Lower Oven
4Selector Disc Single Oven (Model KEBS145SBL1)
5Clock
6Control Mounting Panel
9Selector Switch (Model KEBS145SBL1)
10Thermostat, Upper Oven
11Thermostat
12Selector Switch
13Meat Probe Indicator (Model KEBS145SBL1)
15Oven Light Switch
19Ring, Intermediate (1.5 KW (White))
19Indicator Light,
19Harness, Main (Low Temp) (KEBS276SBL1)
19Harness, Wiring (Upper Latch) (KEBS176SBL1 & KEBS276SBL1)
19Harness, Wiring (High Temp) (KEBS276SBL1)
19Harness, Wiring (High Temp) (KEBS176SBL1)
