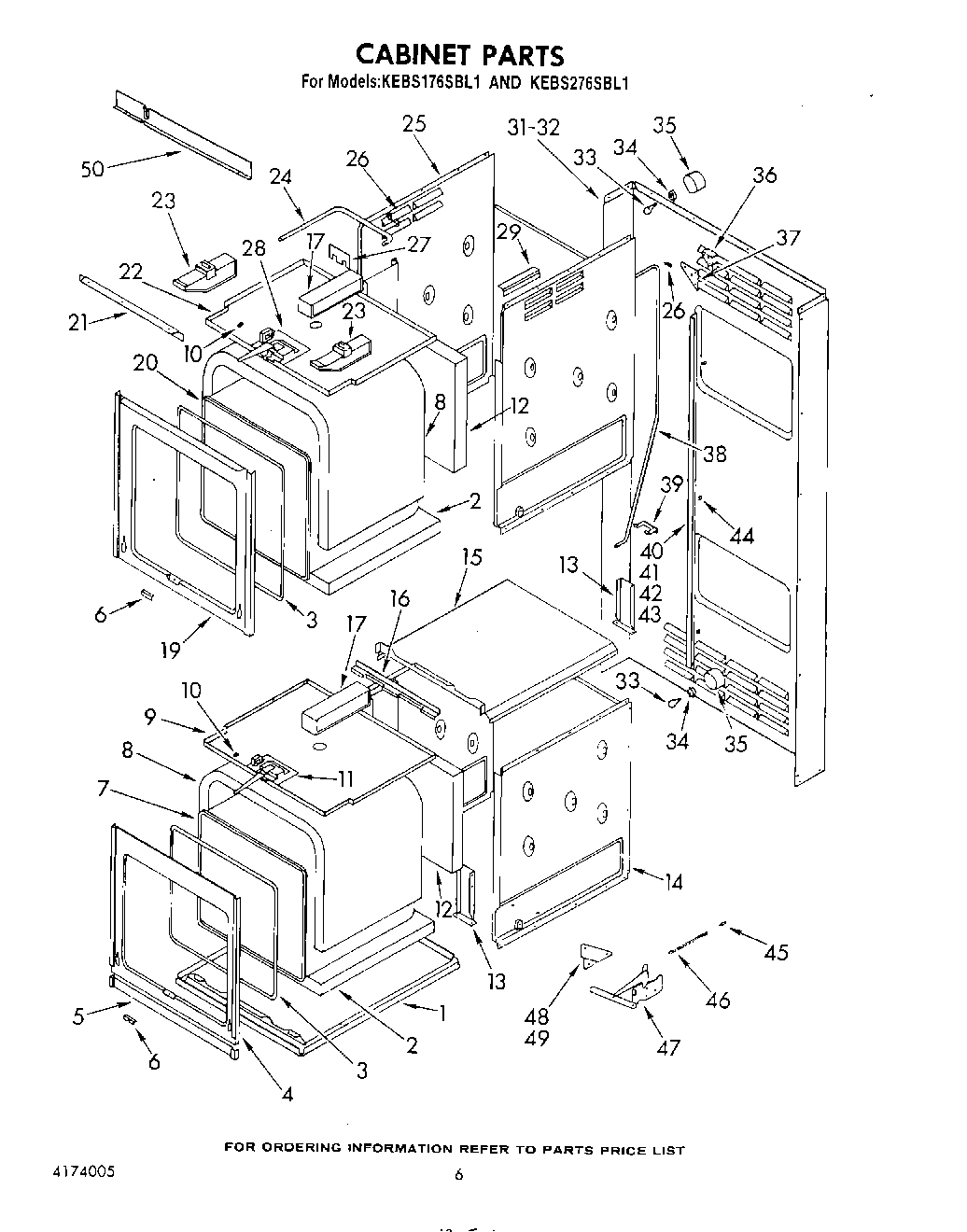

KEBS276SBL1 06 – CABINET

Products

PositionProduct
1Main Bottom
2Insulation, Bottom
3Door Gasket
4Front Frame (Lower Oven) (KEBS276SBL1)
5Bottom Trim
6Cover, Seal End
7Oven Liner (See Page 8 For Breakdown)
8Insulation, Top and Sides
9Top Compartment (Single Or Lower Oven)
10Knob, Latch Lever
11Latch Assembly (See Page 5 For Further Breakdown)
12Insulation, Rear
13Rear Anchor
14Cabinet Side Lower
15Upper Oven Support (KEBS276SBL1)
16Front Frame Support
17Collector Box
19Front Frame (Upper Oven) (KEBS276SBL1)
20Oven Liners (Single Or Upper Oven) See Page 8 For Further Breakdown)
21Control Frame Support
22Compartment Top
23Vent Box
24Vent Tube (Upper Oven)
25Cabinet Side
26Conduit Clamp
27Vent Tube Mounting Bracket
28Latch Parts (See Page 5 For Further Breakdown)
29Cabinet Side Extension
31Cabinet Back
32Cabinet Back
33RANGE ONLY 40W 120V APPL BULB
34Socket, Lamp
35Light Shield
36Rotisserie Motor
37Rotisserie Motor Mounting Plate
38Vent Tube, Lower Oven
39Vent Tube, Retainer
40Cabinet Support (Right)
41Cabinet Support (Right)
42Cabinet Support (Left)
43Cabinet Support (Left)
44Spacer
45Spring, Anchor
46Door Spring (Self Cleaning Oven)
47Hinge Assembly
48Cam Plate (Right)
49Cam Plate (Left Left)
50Air Baffle Channel
50Air Duct (Upper Oven) (Left)
50Air Du
50Vent, Lower Trim (Screw (2))
50Front Frame
50Probe Cover
50Air Duct (Upper Oven) (Right)
50Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
