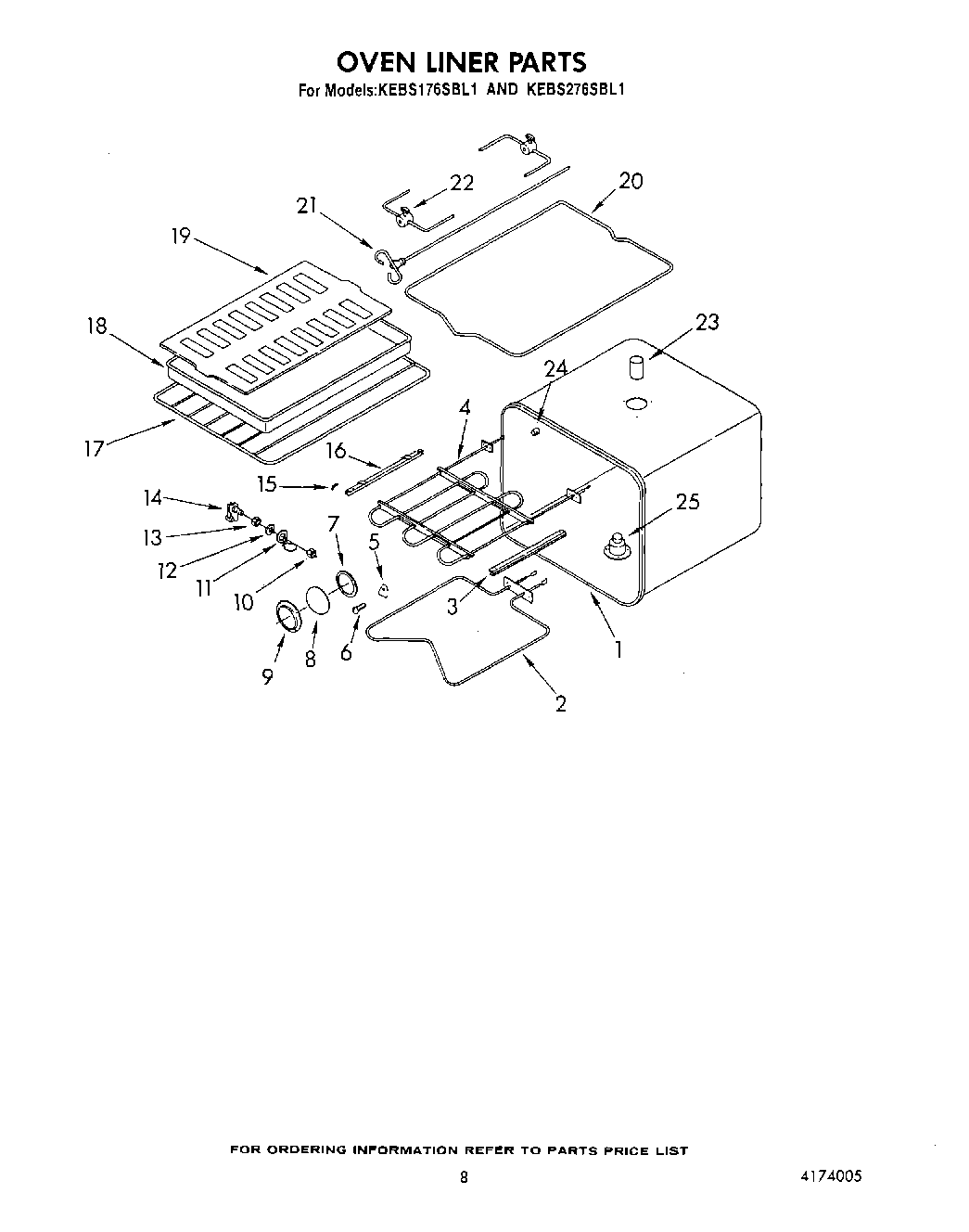

KEBS276SBL1 07 – OVEN LINER

Products

Position	Product
1	Liner, Oven
2	WP3177420 Whirlpool Bake Element
3	Broiler Element Support-Right
4	Element, Broil
5	Plate, Cover
6	Shoulder Screw
7	Light Lens Gasket
8	Light Lens
9	Light Lens Retainer
10	Lock-Nut, Cvr.Jack
11	Jack Cover
12	Washer
13	Nut, Hex Jam Model KEBS145SBL1
14	Meat Probe Jack Model KEBI145SBL1
15	Thermostat Bulb Clip
16	Broiler Element Support-Left
17	Oven Rack
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rotisserie Rack
21	Rotisserie Spear
22	Rotisserie Skewer
23	Vent Tube Extension
24	Cover, Cap Tube
25	Meat Probe
25	Smoke Eliminator (Upper Oven)
25	Gasket, Meat Probe
