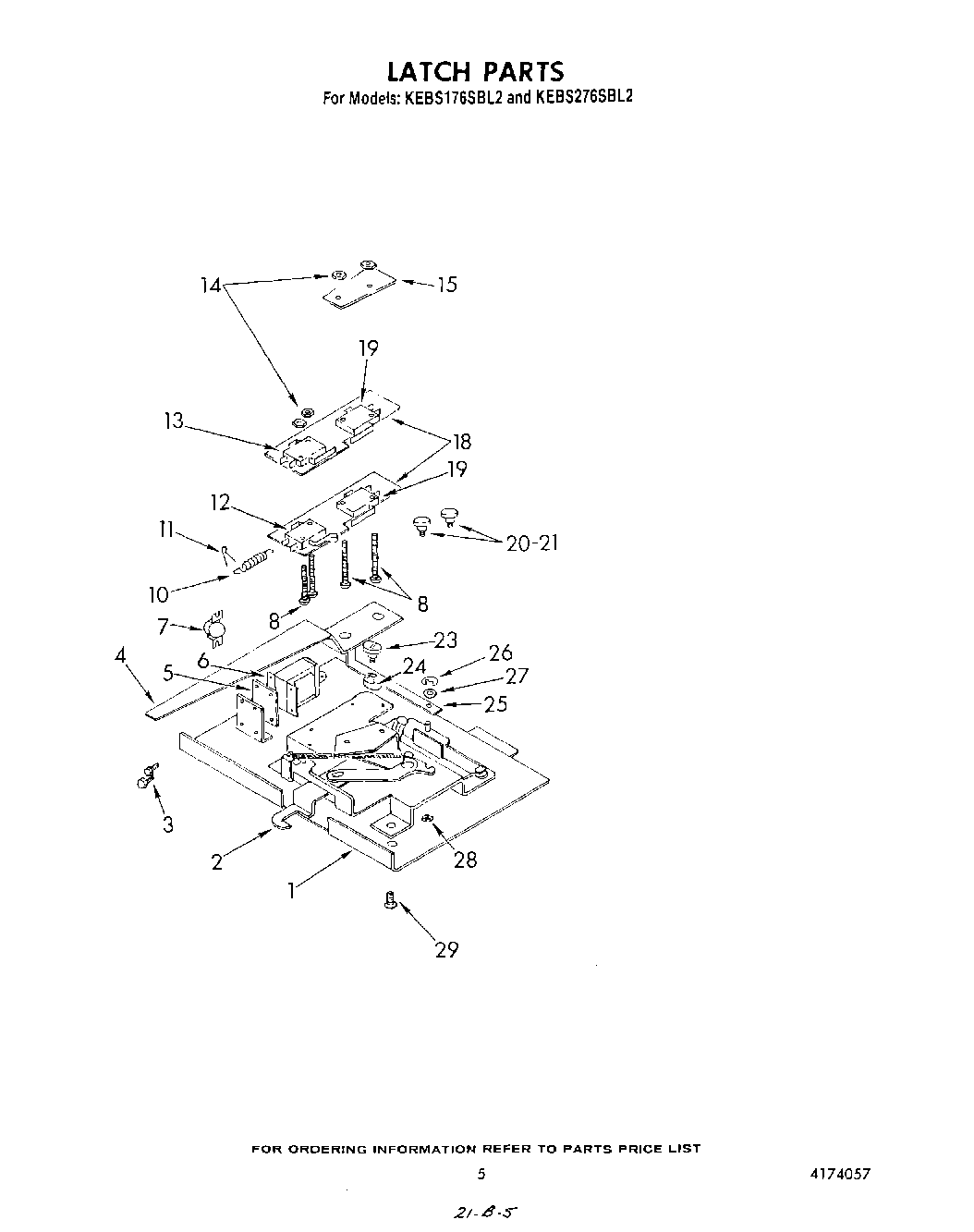

KEBS276SBL2 05 – LATCH

Products

Position	Product
1	Latch Mounting Plate
2	Mechanism, Latch
3	Screw, No.10-24 X 3/8“ Hex TCS
4	Latch Lever
5	Solenoid Spacer
6	Solenoid
7	Thermal Switch
8	Screw, No.4-40 X 1 1/4“ Hex
10	Solenoid Spring
11	Cotter Pin
12	Latch Switch With Roller
13	Latch Switch
14	Nut (2)
15	Insulator
18	Insulator (2)
19	Latch Switch (2)
20	Shoulder Screw Latch Lever Upper Oven
21	Shoulder Screw, Latch Lever Lower Oven Model KEBS245SBL1
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, No.10-24 Hex Kep
29	Screw, No.10-24 X 3/8“ PTHMS
29	Spacer, Latch Lever (Lower Oven) Model KEBS245SBL1
