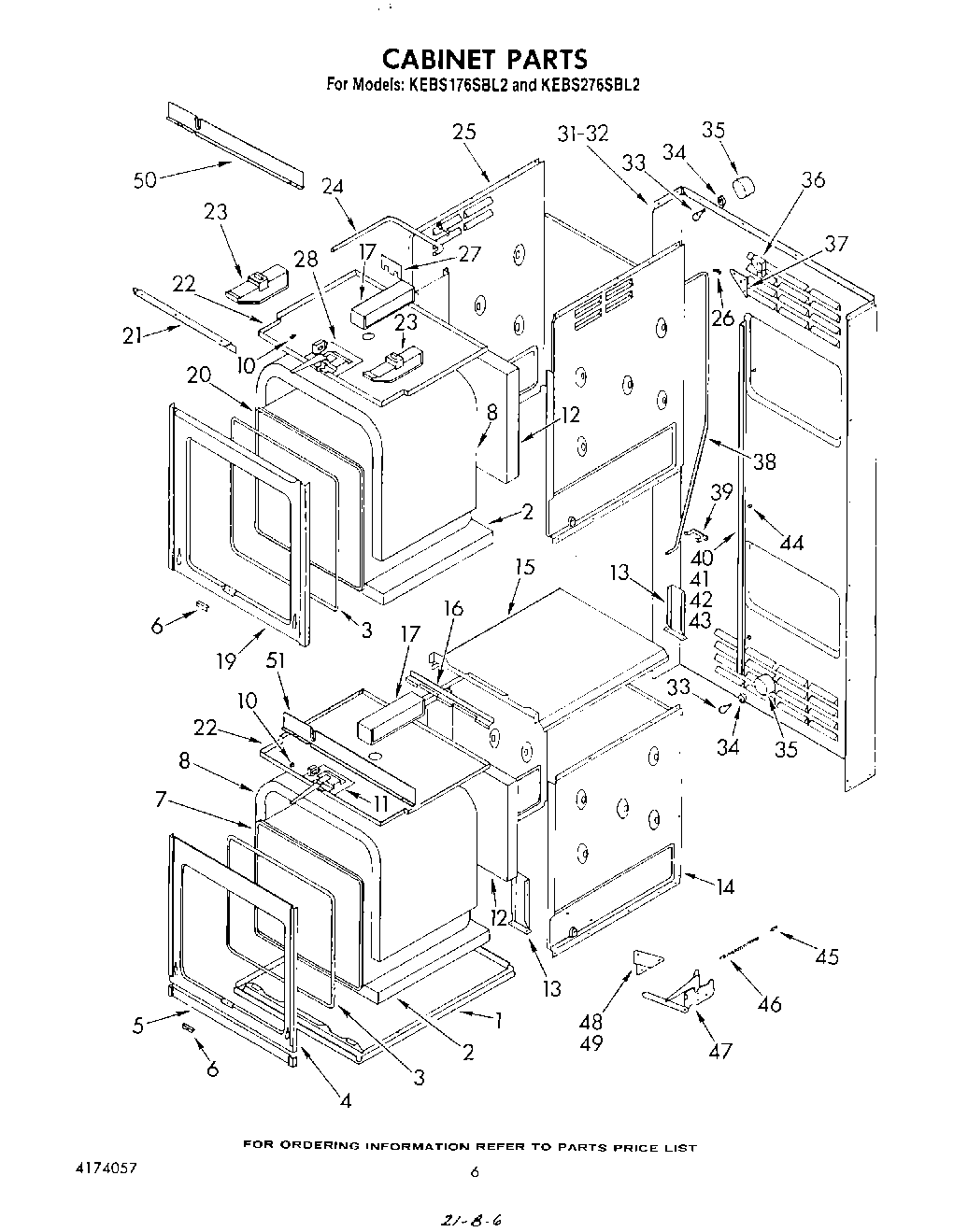

| 1 | Main Bottom |
| 2 | Insulation, Bottom |
| 3 | Door Gasket |
| 4 | Front Frame, Lower Oven |
| 5 | Bottom Trim |
| 6 | Cover, Seal End |
| 7 | Oven Liner (See Page 8 For Breakdown) |
| 8 | Insulation, Top and Sides |
| 10 | Knob, Latch Lever |
| 11 | Latch Assembly (See Page 5 For Further Breakdown) |
| 12 | Insulation, Rear |
| 13 | Rear Anchor |
| 14 | Cabinet Side Lower |
| 15 | Upper Oven Support (KEBS276SBL1) |
| 16 | Front Frame Support |
| 17 | Collector Box |
| 19 | Front Frame (Upper Oven) (KEBS276SBL1) |
| 20 | Oven Liners (Single Or Upper Oven) See Page 8 For Further Breakdown) |
| 21 | Control Frame Support |
| 22 | Compartment Top |
| 23 | Vent Box |
| 24 | Vent Tube (Upper Oven) |
| 25 | Cabinet Side |
| 26 | Clamp, Conduit |
| 27 | Vent Tube Mounting Bracket |
| 28 | Latch Parts (See Page 5 For Further Breakdown) |
| 31 | Cabinet Back |
| 32 | Cabinet Back |
| 33 | RANGE ONLY 40W 120V APPL BULB |
| 34 | Socket, Lamp |
| 35 | Light Shield |
| 36 | Rotisserie Motor |
| 37 | Mounting Plate (Rotisserie Motor) |
| 38 | Vent Tube, Lower Oven |
| 39 | Vent Tube, Retainer |
| 40 | Cabinet Support (Right) |
| 41 | Cabinet Support (Right) |
| 42 | Cabinet Support (Left) |
| 43 | Cabinet Support (Left) |
| 44 | Spacer |
| 45 | Spring, Anchor |
| 46 | Door Spring (Self Cleaning Oven) |
| 47 | Hinge Assembly |
| 48 | Cam Plate (Right) |
| 49 | Cam Plate (Left Left) |
| 50 | Air Baffle Channel |
| 51 | Air Duct (Upper Oven) (Left) |
| 51 | Air Du |
| 51 | WPL 4173016 |
| 51 | Front Frame |
| 51 | Air Duct (Upper Oven) (Right) |
| 51 | WPL 4173017 |
| 51 | WPL 4173171 |
| 51 | Vent, Lower Trim (Screw (2)) |
| 51 | Air Duct (Upper Oven) (Left Air Duct (Lower Oven)) |
| 51 | Probe Cover |
