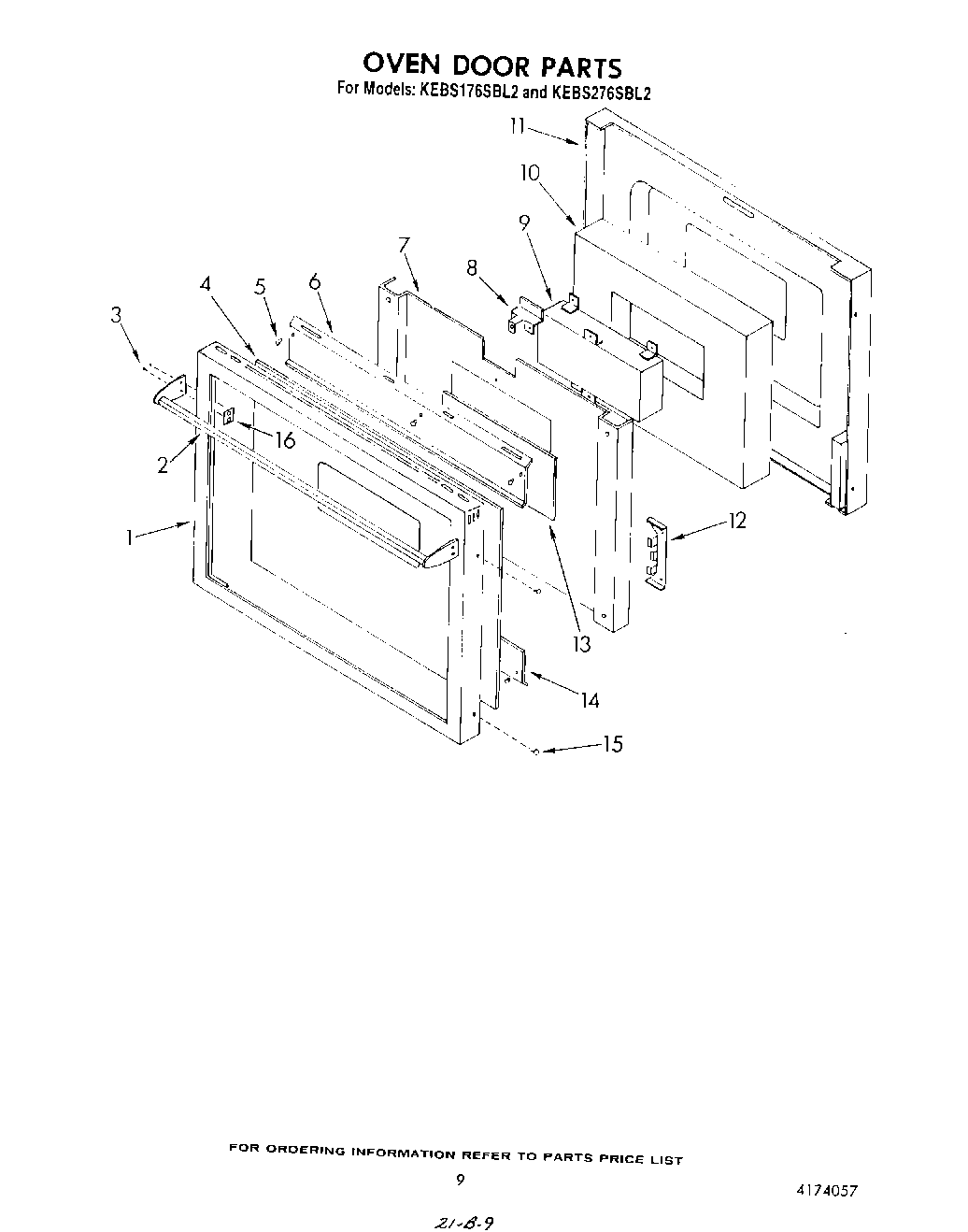

KEBS276SBL2 08 – OVEN DOOR

KEBS276SBL2 08 – OVEN DOOR

Written by

in

KEBS276SBL2 08 – OVEN DOOR

Products

PositionProduct
1Door Frame
2Door Handle
3Screw, 8-32 X 3/8“ PFHMS
4Door Glass
5Rubber Bumper
6Air Baffle
7Retainer, Insulation
8Bracket, Lock
9Window Pack
10Insulation
11Door Liner
12Bracket, Glass Mtg.
13Glass, Reflective
14Air Baffle, Bottom
15Vent, Lower Trim (Screw (2))
16Insert (4)
