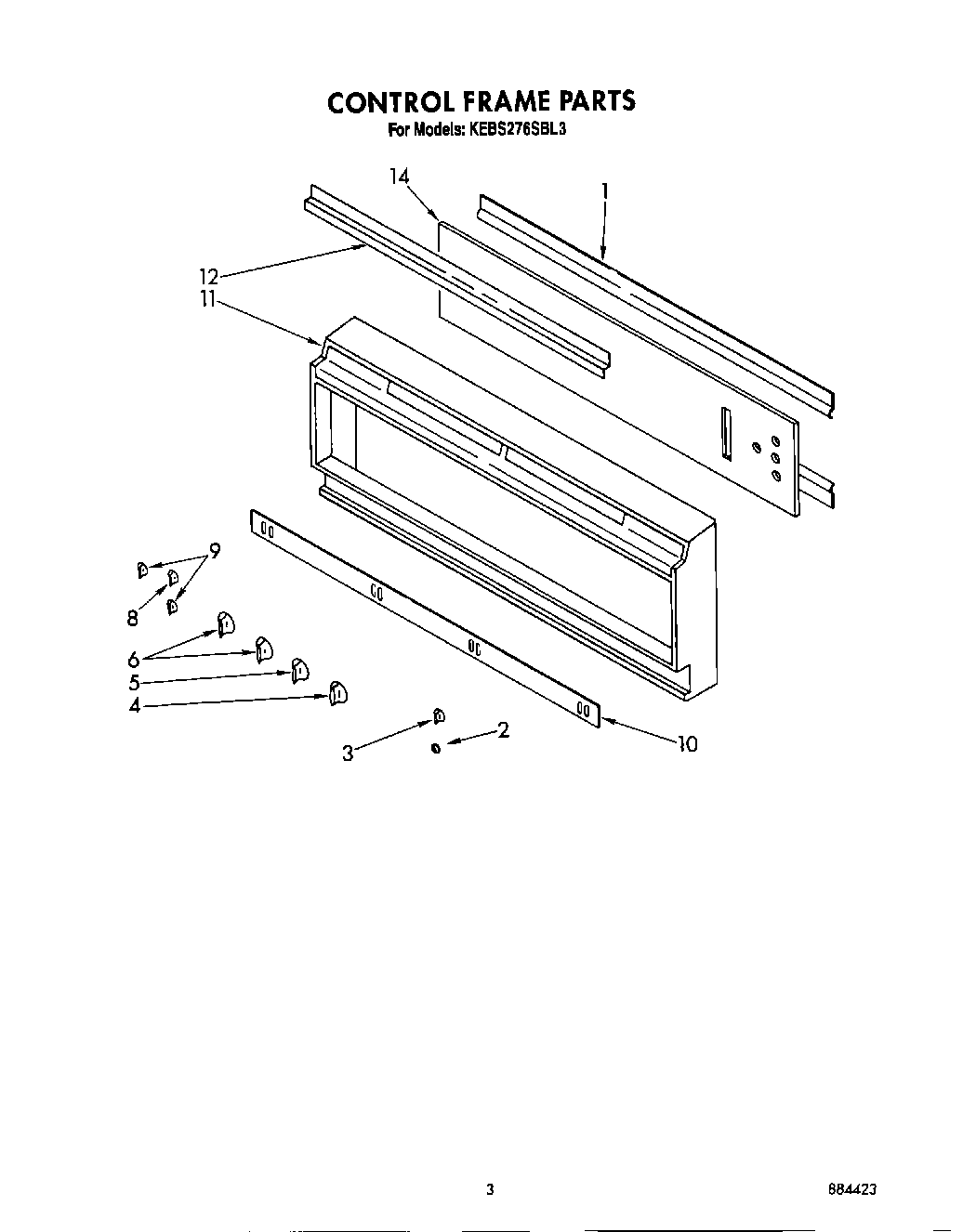

KEBS276SBL3 03 – CONTROL FRAME

KEBS276SBL3 03 – CONTROL FRAME

Written by

in

KEBS276SBL3 03 – CONTROL FRAME

Products

PositionProduct
1Screw (6)
1Retainer
2Bezel, Oven Light Switch
3Knob
6WP4168403 Whirlpool Knob
8Knob, Clock
9Knob, Clock (2)
10Vent Insert
10nut (3)
10Nut (4)
11Control Frame
12Insert, Top
12Screw (5)
14Control Panel Glass (KEBS276SBL1)
