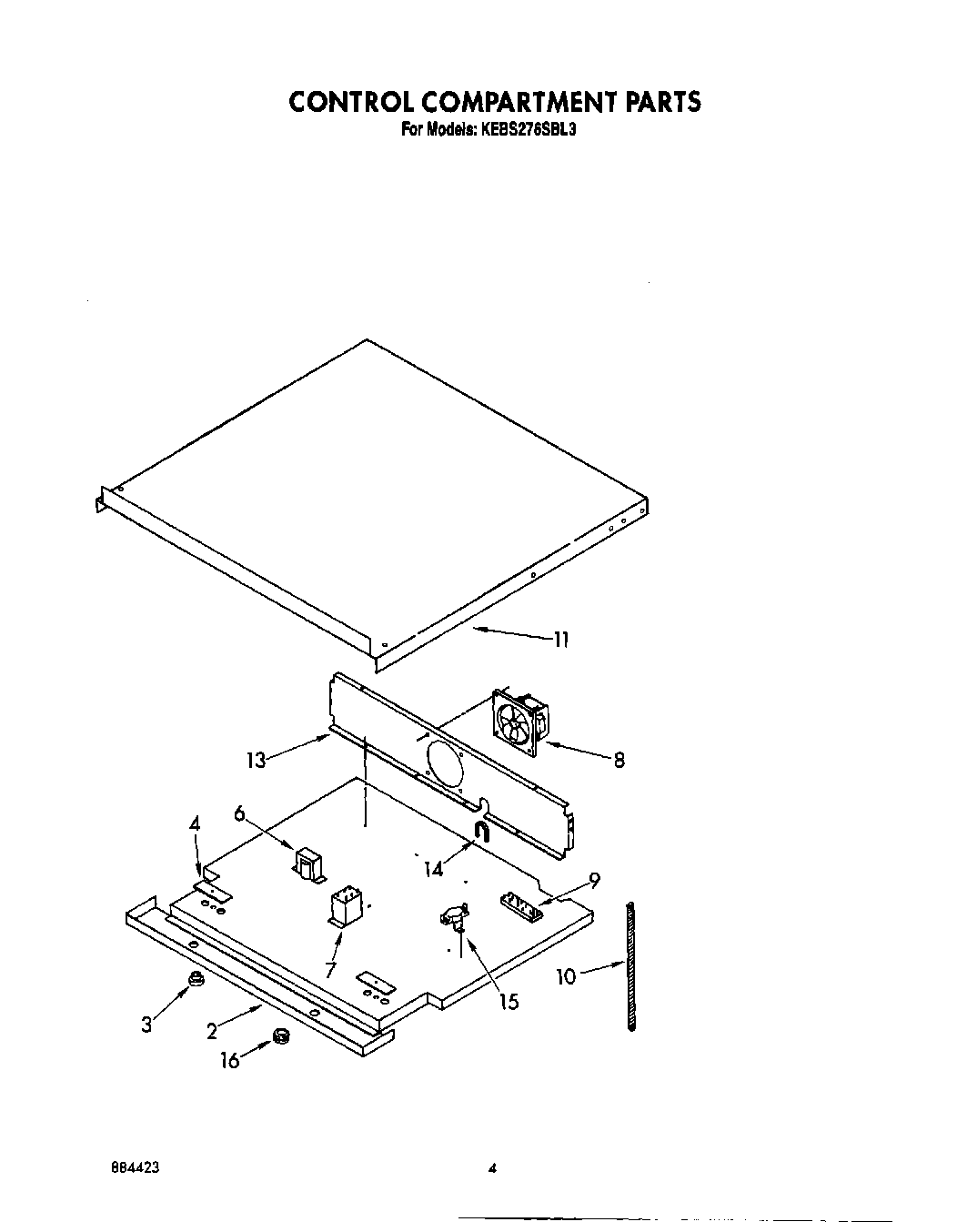

KEBS276SBL3 04 – CONTROL COMPARTMENT

Written by

Products

Position	Product
2	Sandwich Panel
4	Hole Cover
6	Transformer, Meat Probe Model KEBS145SBL1
7	Relay, Meat Probe
8	Blower
9	Terminal Block, Power Supply
10	Conduit, 1/2“ X 56“
11	Cabinet Top, Front
13	Blower Mounting Panel
13	Screw (4)
14	Bushing, Flexible
15	Switch, Fan
15	Screw, (2)
16	Bushing
