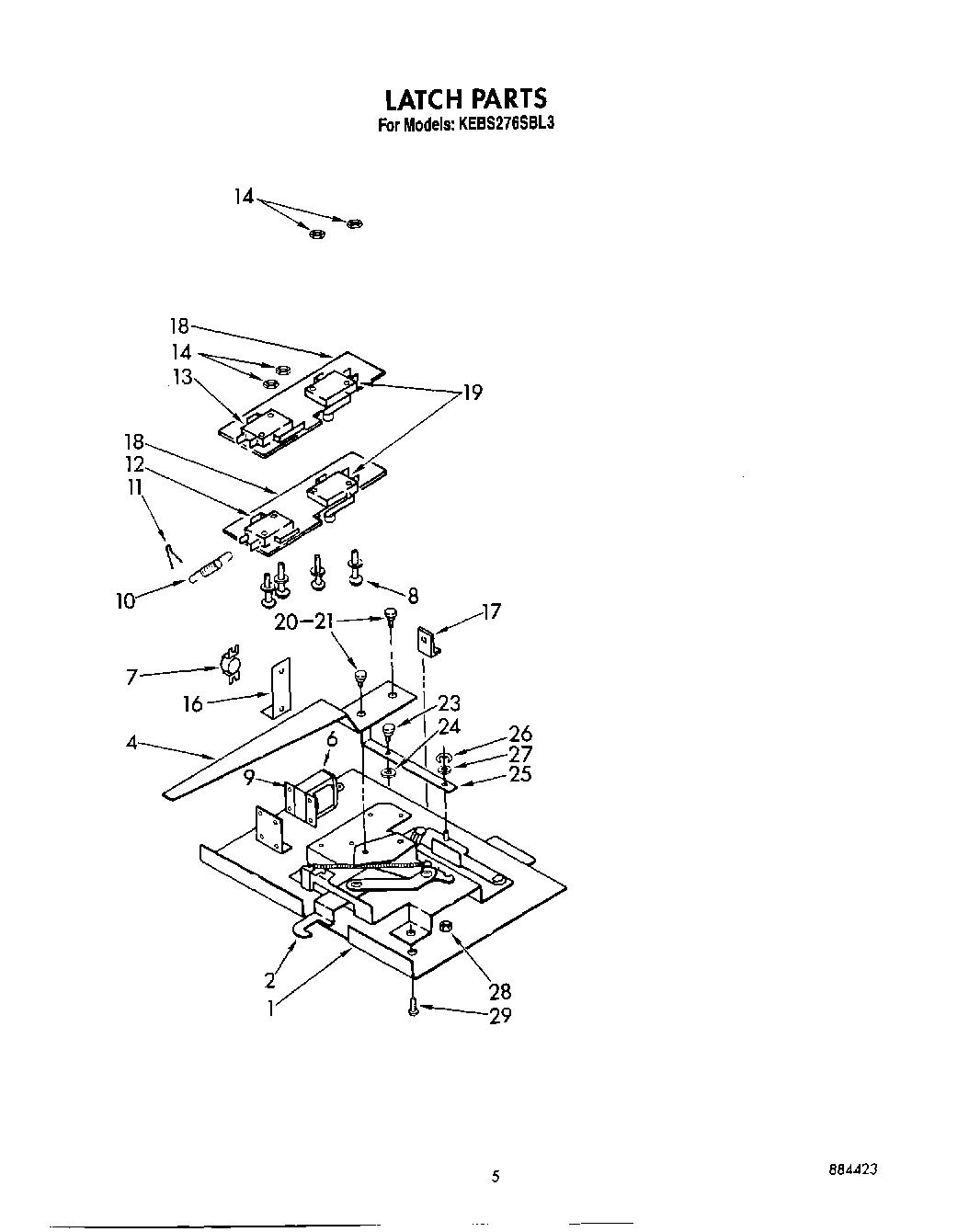

KEBS276SBL3 05 – LATCH

Written by

Products

Position	Product
1	Latch Mounting Plate
2	Mechanism, Latch
2	Screw, No.10-24 X 3/8“ Hex TCS
4	Latch Lever (Lower Oven)
4	lever, latch
6	Solenoid
6	Screw (2)
7	Thermal Switch
7	Thermal Switch (Upper)
9	Solenoid Plate
10	Solenoid Spring
11	Cotter Pin
12	Latch Switch With Roller
13	Latch Switch
14	Nut (2)
16	Screw
16	Mounting Bracket, Safety Switch
17	Bracket, Harness
18	Insulator (2)
19	Screw, No.4-40 X 1 1/4“ Hex
19	Latch Switch (2)
20	Shoulder Screw, Latch Lever Lower Oven Model KEBS245SBL1
21	Shoulder Screw Latch Lever Upper Oven
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, No.10-24 Hex Kep
29	Screw, No.10-24 X 3/8“ PTHMS
29	Harness, Wiring Latch (Lower)
