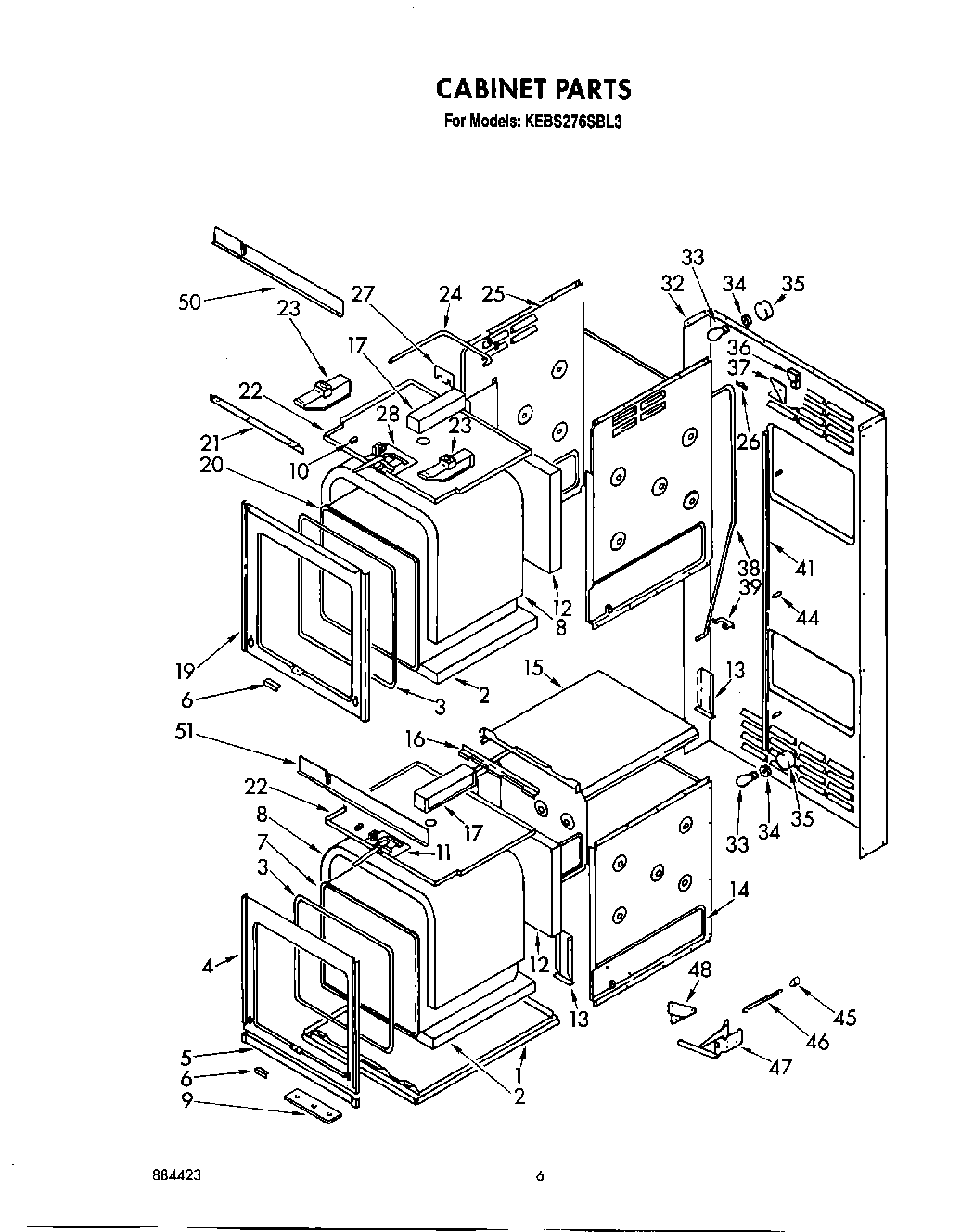

KEBS276SBL3 06 – CABINET

Written by

Products

Position	Product
1	Main Bottom
2	Insulation, Bottom
3	Door Gasket
4	Front Frame, Lower Oven
4	Screw (2)
5	Bottom Trim
6	Cover, Seal End
7	Oven Liner (See Parts Page For Breakdown)
8	Insulation, Top and Sides
9	Plate, Cover
10	Screw (2)
10	Knob, Latch Lever
11	Latch Assembly (See Parts Page For Further Breakdown)
12	Insulation, Rear
13	Rear Anchor
14	Cabinet Side Lower
15	Upper Oven Support (KEBS276SBL1)
16	Front Frame Support
17	Collector Box
19	Front Frame (Upper Oven) (KEBS276SBL1)
20	Oven Liners (Single Or Upper Oven) (See Parts Page For Further Breakdown)
21	Control Frame Support
22	Compartment Top
22	Compartment Top (Upper Oven)
23	Vent Box
24	Vent Tube (Upper Oven)
25	Cabinet Side
26	Clamp, Conduit
27	Vent Tube Mounting Bracket
28	Latch Parts (See Parts Page For Further Breakdown)
32	Cabinet Back
33	RANGE ONLY 40W 120V APPL BULB
34	Socket, Lamp
35	Light Shield
36	Rotisserie Motor
37	Rotisserie Motor Mounting Plate
37	Washer, Lock Tooth
37	WP488234 Whirlpool Air Conditioner Screw
38	Vent Tube, Lower Oven
39	Vent Tube, Retainer
41	SCREW
41	Screw (2)
41	Screw (6)
41	Cabinet Support (Left)
41	Cabinet Support (Right)
44	Spacer
45	Spring, Anchor
46	Door Spring (Self Cleaning Oven)
47	Hinge Assembly
48	Cam Plate (Left Left)
48	WPL 4159188
48	Cam Plate (Right)
50	Air Baffle Channel
51	Screw, (2)
51	Air Duct (Upper Oven) (Left)
51	Air Du
51	WPL 4173016
51	Vent, Lower Trim (Screw (2))
51	Air Duct (Upper Oven) (Right)
51	WPL 4173017
51	Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
51	Probe Cover
51	WPL 4173171
