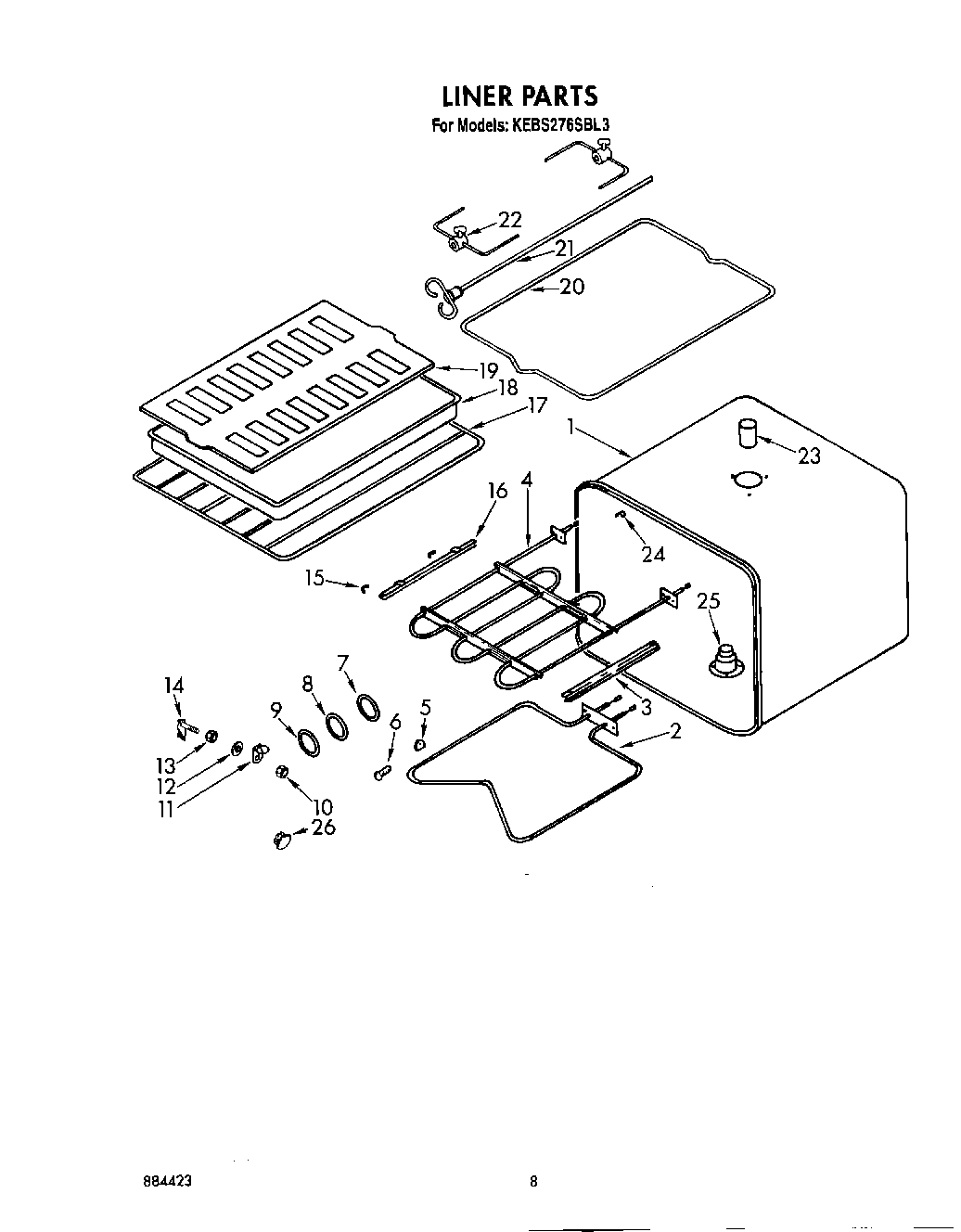

KEBS276SBL3 07 – LINER

Products

Position	Product
1	Liner, Oven
2	WP3177420 Whirlpool Bake Element
3	Broiler Element Support-Right
4	Element, Broil
5	Plate, Cover
6	Shoulder Screw
7	Light Lens Gasket
8	Light Lens
9	Light Lens Retainer
10	Lock-Nut, Cvr.Jack
11	Jack Cover
12	Washer
13	Nut, Hex Jam (2)
14	Meat Probe Jack Model KEBI145SBL1
15	Clip, Thermostat Bulb
16	Broiler Element Support-Left
17	Oven Rack
18	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rotisserie Rack
21	Rotisserie Spear
22	Rotisserie Skewer
23	Screw, (2)
23	Vent Tube Extension
24	Cover, Cap Tube
24	Screw
24	Washer (4)
25	Smoke Eliminator (Upper Oven)
26	Meat Probe
26	Plug Button (5/8“ Hole)
26	Plug Button (3/8“ Hole)
26	Gasket, Meat Probe
