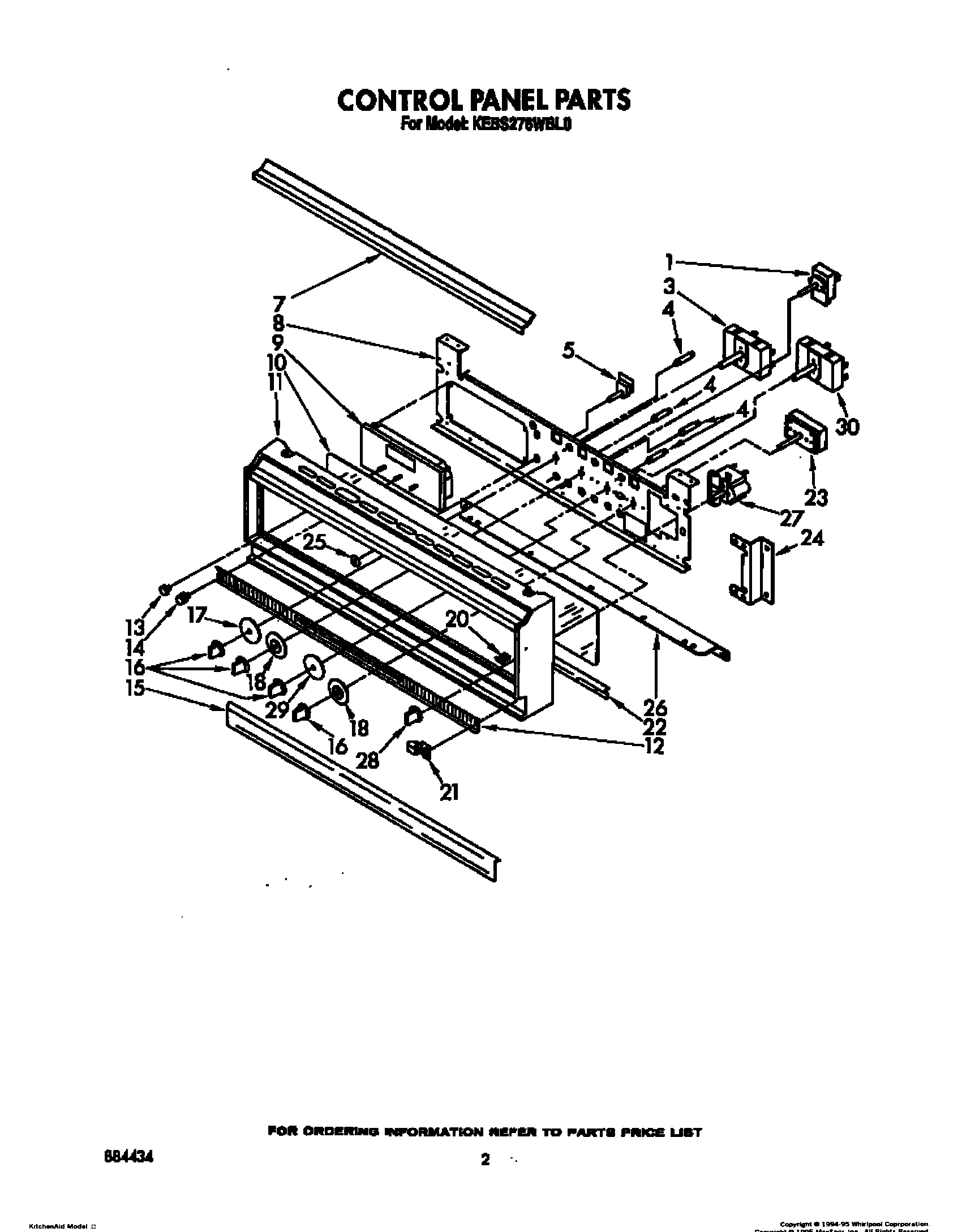

KEBS276WBL0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	WPL LIT3178195
	Guide, Use & Care
	Tech Sheet
1	Thermostat, upper
3	Switch, Selector Upper Oven
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
7	Insert, Top
8	Bracket, Control
9	Clock
9	Nut, Timer (4)
10	Glass, Control Panel
11	Frame, Control Panel
12	Insert, Vent
13	Knob, Clock
14	Knob, Clock (2)
15	Handle (Black)
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean)
20	nut (3)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Retainer
22	Screw (6)
23	Thermostat, Upper
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
27	Indicator, Meat Probe
27	Screw,
28	Knob
29	Disc. Selector Upper Oven
30	Switch, Selector
30	WP486579 Whirlpool Air Conditioner Screw
