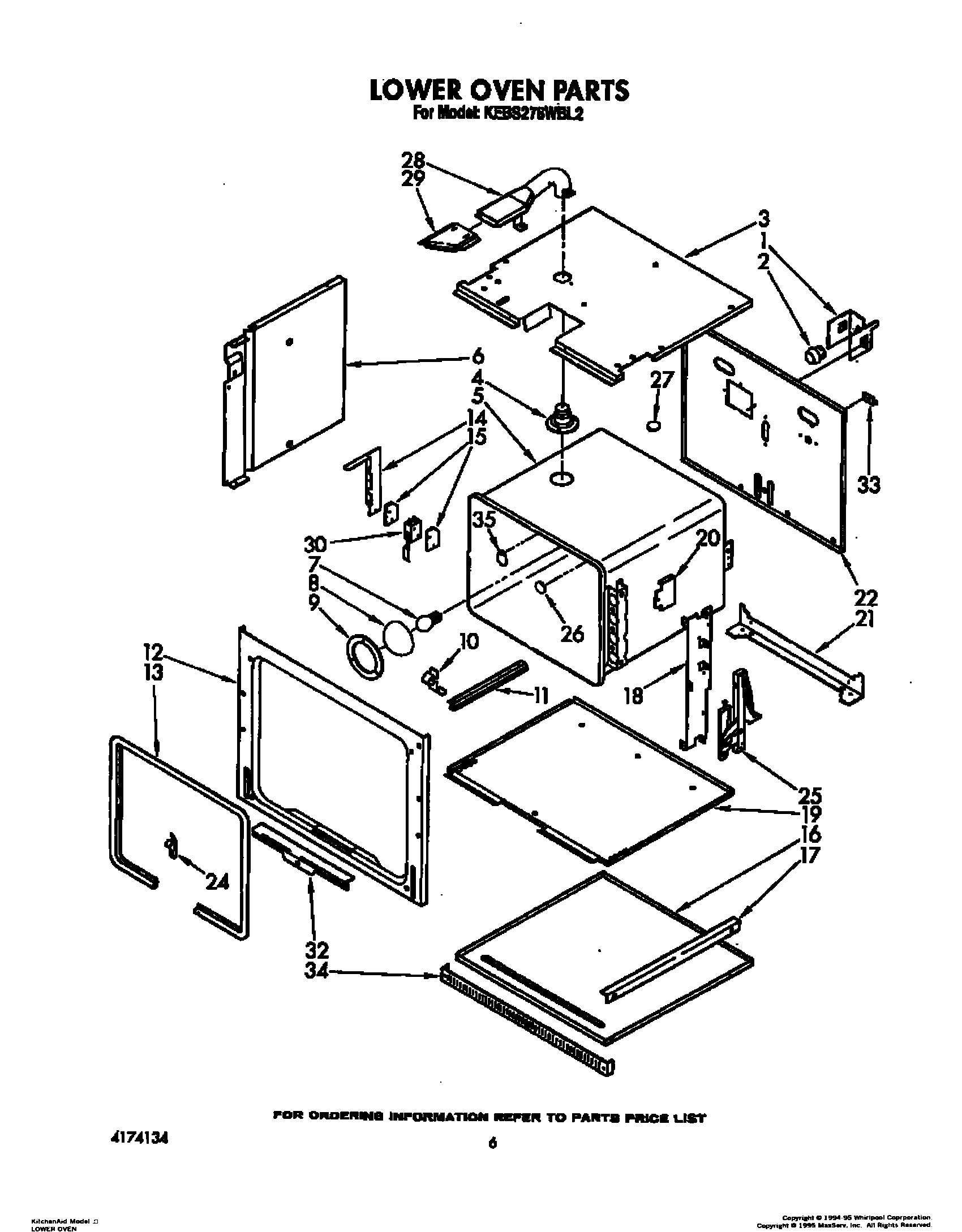

KEBS276WBL2 04 – LOWER OVEN, OPTIONAL

KEBS276WBL2 04 – LOWER OVEN, OPTIONAL

KEBS276WBL2 04 – LOWER OVEN, OPTIONAL

Products

PositionProduct
1Housing, Light
2Socket, Light
3Top, Module
4Smoke Eliminator (Upper Oven)
5Liner, Oven
6Side, Module (R.H. & L.H.)
7RANGE ONLY 40W 120V APPL BULB
8Light Lens
9Retainer, Glass
1098005642 Whirlpool Clip
11Broiler Element Support-Right
11Screw (3)
12Frame, Front
13Seal, Door
14Bracket, Switch
14WP3177991 Whirlpool Screw
15Insulator, Switch
16Bottom, Oven
17Rail, Support (2)
18Bracket, Hinge
19Bottom, Modual
20Shield, Radiation
21Support, Oven
22Back, Module
24Clip, Oven Seal
25Screw (6)
25Hinge, Door
26Button, Plug
27Button, Plug
28WP90767 Whirlpool Screw
28Tube, Vent Male
29Tube, Vent
30Screw (2)
30Switch, Door
30Nut (2)
32Screw (4)
32SCREW
32Retainer, Seal
33Screw
33Cover, Cap Tube
34Vent, Lower Trim (Black)
3518 Ga. 80~c Rating (Red)
35350930 Whirlpool White Spray Paint
35WPL 591014
35Wire (12 Ga. 150 c Black)
351
35Wire (14 Ga. 200 c Brown)
35WPL 350806
35Plate, Cover
35261900 Whirlpool Microwave Spray
3572017 Whirlpool Appliance Touch-Up Paint White
35Insulation, Back
35799344 Whirlpool Refrigerator Paint
35WP72107 Whirlpool Touchup
3572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
35Leveler (Thinner)
35Almond (Uncut)
35350956 Whirlpool Spray Assembly
35WPL 786032
35Shoulder Screw
35WPL 786020
35Wire (14 Ga. 150 c Yellow)
35Wire (14 Ga. 150 c Orange)
35Platinum (Uncut)
35WPL 72112
35350942 Whirlpool Spray Paint
35Wire, 25“ Roll (White 14 GA.)
35WPL 799832
35Wire, 25` Roll (Black 14 Ga.)
35Wire, 25` Roll (Red 14 Ga.)
35WP482338 Whirlpool Refrigerator Adhesive
3572032 Whirlpool Touch Up Paint Black
35Enamal, Toast (1 Qt. Uncut)
35Paint, Spray (13 Oz.) (Platinum)
35Toast
35Wire (14 Ga. 150 c Green)
35Wire (14 Ga. 150 c Brown)
35Wire (14 Ga. 150 c Blue)
3572113 Whirlpool Touch-Up Paint
35WP261869 Whirlpool Microwave Paint
35242831 Whirlpool Oven Wire
35Insulation, Oven
35Golden Harvest
35Golden Harvest (Uncut)
35285006 Whirlpool Spray
