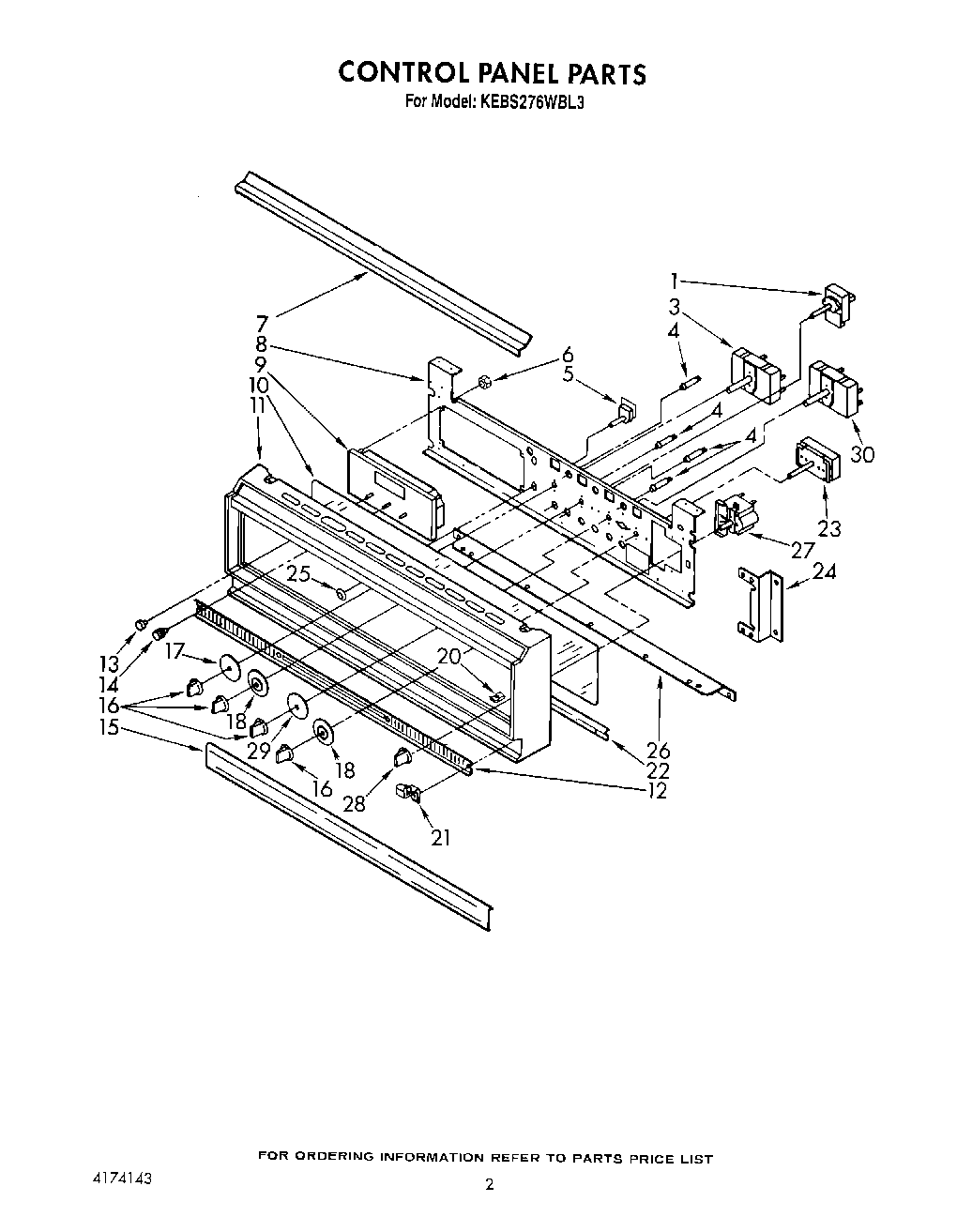

KEBS276WBL3 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	WPL LIT3178202
	Guide, Use & Care
	WPL LIT3178195
1	Thermostat, upper
3	Switch, Selector Upper Oven
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel
11	Frame, Control Panel (Black)
12	Insert, Vent
13	Knob, Clock
14	Knob, Clock (2)
15	Handle (Black)
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean)
20	nut (3)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Screw (6)
22	Retainer
23	Thermostat, Upper
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	WP3177991 Whirlpool Screw
26	Support, Frame
27	Screw,
27	Indicator, Meat Probe
28	Knob
29	Disc. Selector Upper Oven
30	Switch, Selector
30	WP486579 Whirlpool Air Conditioner Screw
