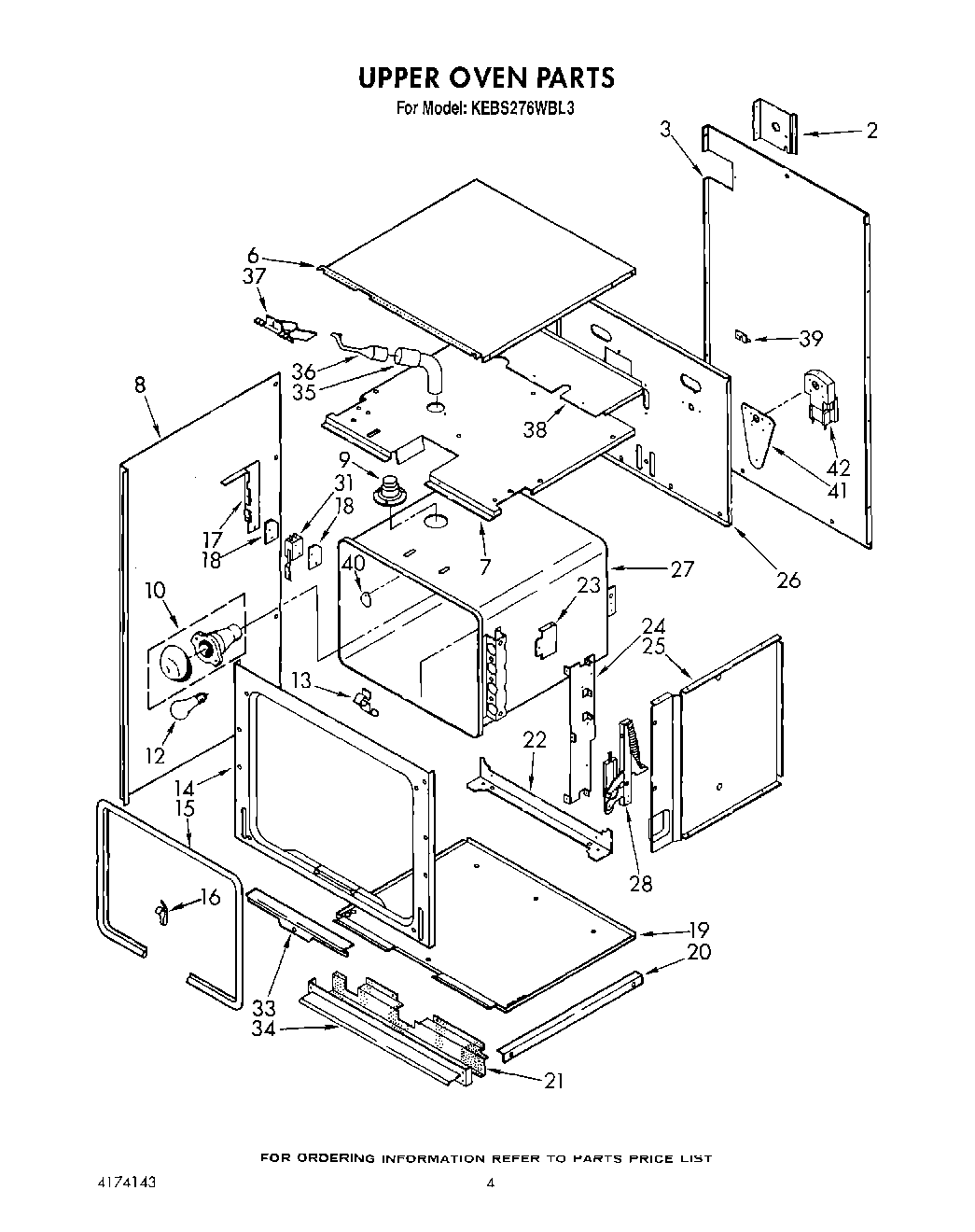

KEBS276WBL3 03 – UPPER OVEN, OPTIONAL

KEBS276WBL3 03 – UPPER OVEN, OPTIONAL

Written by

in

KEBS276WBL3 03 – UPPER OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw, 8-18 X 3/4 (4)
21	Screen, Wire Mesh
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
31	Nut (2)
31	Screw (2)
31	Switch, Door
33	Screw (4)
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (Black Model)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
39	Screw
40	Plate, Cover
40	Shoulder Screw
41	Rotisserie Motor Mounting Plate
42	Washer, Lock Tooth
42	Rotisserie Motor
42	Wire (14 Ga. 150 c Green)
42	Wire (14 Ga. 150 c Brown)
42	1
42	Wire (12 Ga. 150 c Black)
42	WPL 832985
42	WPL 591014
42	WPL 350806
42	Wire (14 Ga. 200 c Brown)
42	18 Ga. 80~c Rating (Red)
42	Wire (14 Ga. 150 c Orange)
42	Wire (14 Ga. 150 c Yellow)
42	Wire (14 Ga. 150 c Blue)
42	WP261869 Whirlpool Microwave Paint
42	242831 Whirlpool Oven Wire
42	Enamal, Toast (1 Qt. Uncut)
42	Paint, Spray (13 Oz.) (Platinum)
42	Toast
42	WP488234 Whirlpool Air Conditioner Screw
42	Golden Harvest (Uncut)
42	Golden Harvest
42	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
42	Almond (Uncut)
42	Leveler (Thinner)
42	WP72107 Whirlpool Touchup
42	799344 Whirlpool Refrigerator Paint
42	72017 Whirlpool Appliance Touch-Up Paint White
42	Platinum (Uncut)
42	WPL 72112
42	Insulation, Back
42	Insulation, Oven
42	72113 Whirlpool Touch-Up Paint
42	WP482338 Whirlpool Refrigerator Adhesive
42	72032 Whirlpool Touch Up Paint Black
42	285006 Whirlpool Spray
42	Wire, 25“ Roll (White 14 GA.)
42	Wire, 25` Roll (Red 14 Ga.)
42	Wire, 25` Roll (Black 14 Ga.)
42	350930 Whirlpool White Spray Paint
42	WPL 799832
42	350942 Whirlpool Spray Paint
42	350956 Whirlpool Spray Assembly
