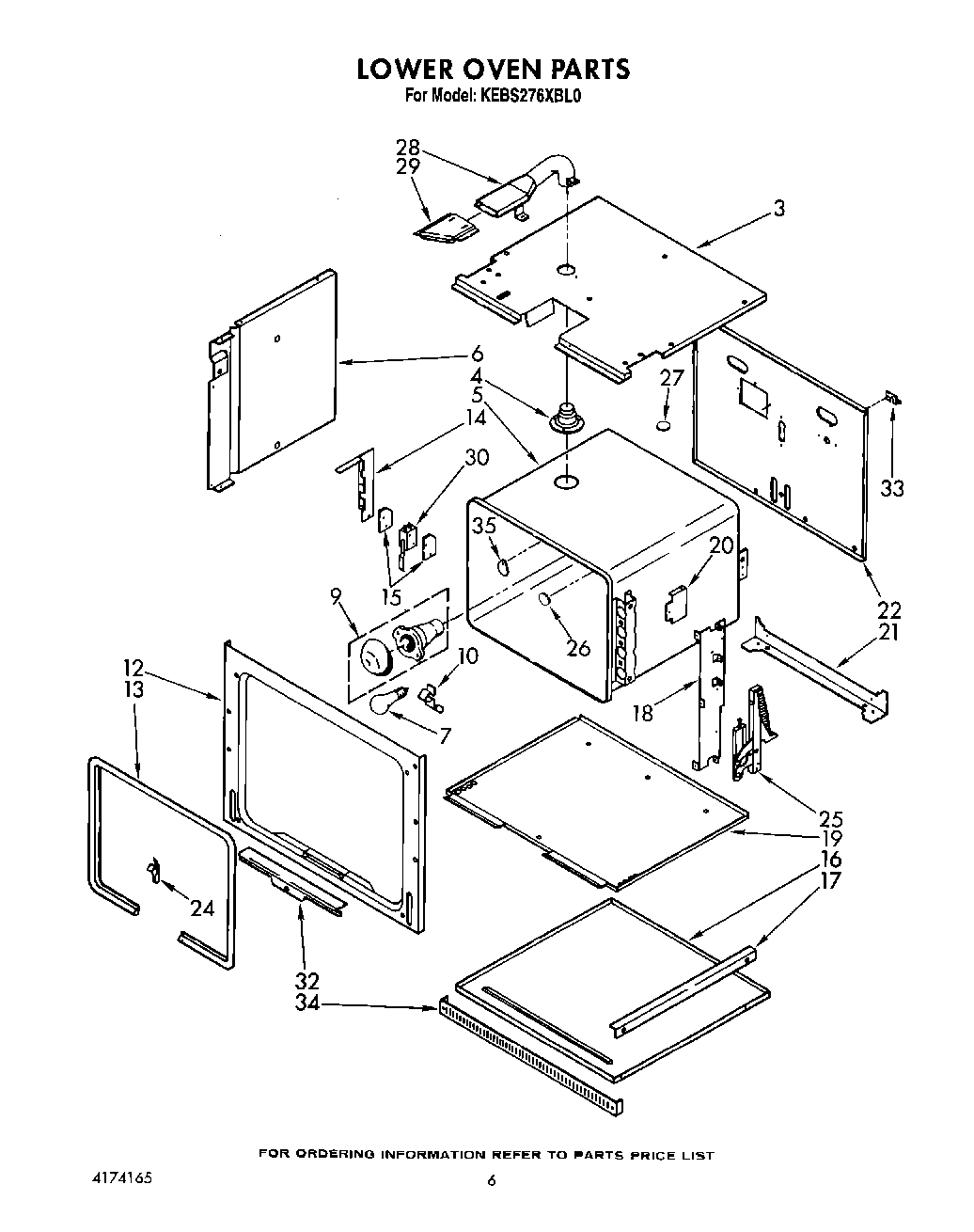

KEBS276XBL0 04 – LOWER OVEN

Products

Position	Product
3	Top, Module
4	Tube, Vent
4	Screw (3)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
12	Frame, Front
13	Seal, Door
14	Bracket, Switch
14	WP3177991 Whirlpool Screw
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Screw (6)
20	Shield, Radiation
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Screw (4)
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	WP90767 Whirlpool Screw
28	Tube, Vent Male
29	Tube, Vent
30	Switch, Door
30	Screw (2)
30	Nut (2)
32	SCREW
32	Screw (4)
32	Retainer, Seal
33	Cover, Cap Tube
33	Screw
34	Vent, Lower Trim (Black)
35	Insulation, Oven
35	Plate, Cover
35	Shoulder Screw
35	Insulation, Back
