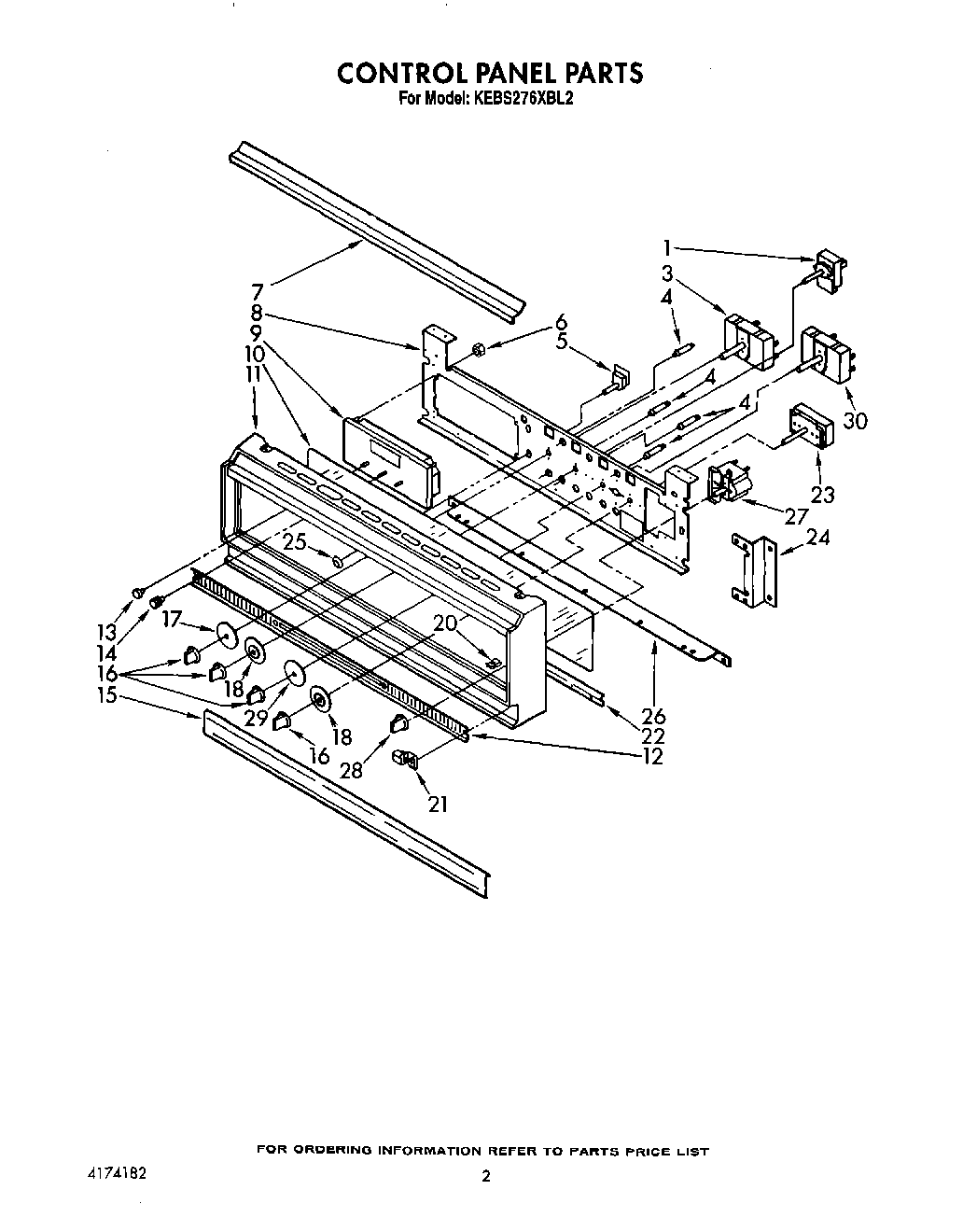

KEBS276XBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

Products

Position	Product
	Repair Parts List
	WPL LIT3178195
	WPL LIT3181351
	Tech Sheet
1	Thermostat, upper
3	Switch, Selector Upper Oven
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel
11	Frame, Control Panel (Black)
12	Insert, Vent
13	Knob, Timer (2)
14	Knob, Timer
15	Handle (Black)
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean)
20	nut (3)
21	Door, Latch Handle (Screw (2))
21	Hinge, Door (2)
22	Retainer
22	Screw (6)
23	Thermostat, Upper
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
27	Screw,
27	Indicator, Meat Probe
28	Knob
29	Disc. Selector Upper Oven
30	WP486579 Whirlpool Air Conditioner Screw
30	Switch, Selector
