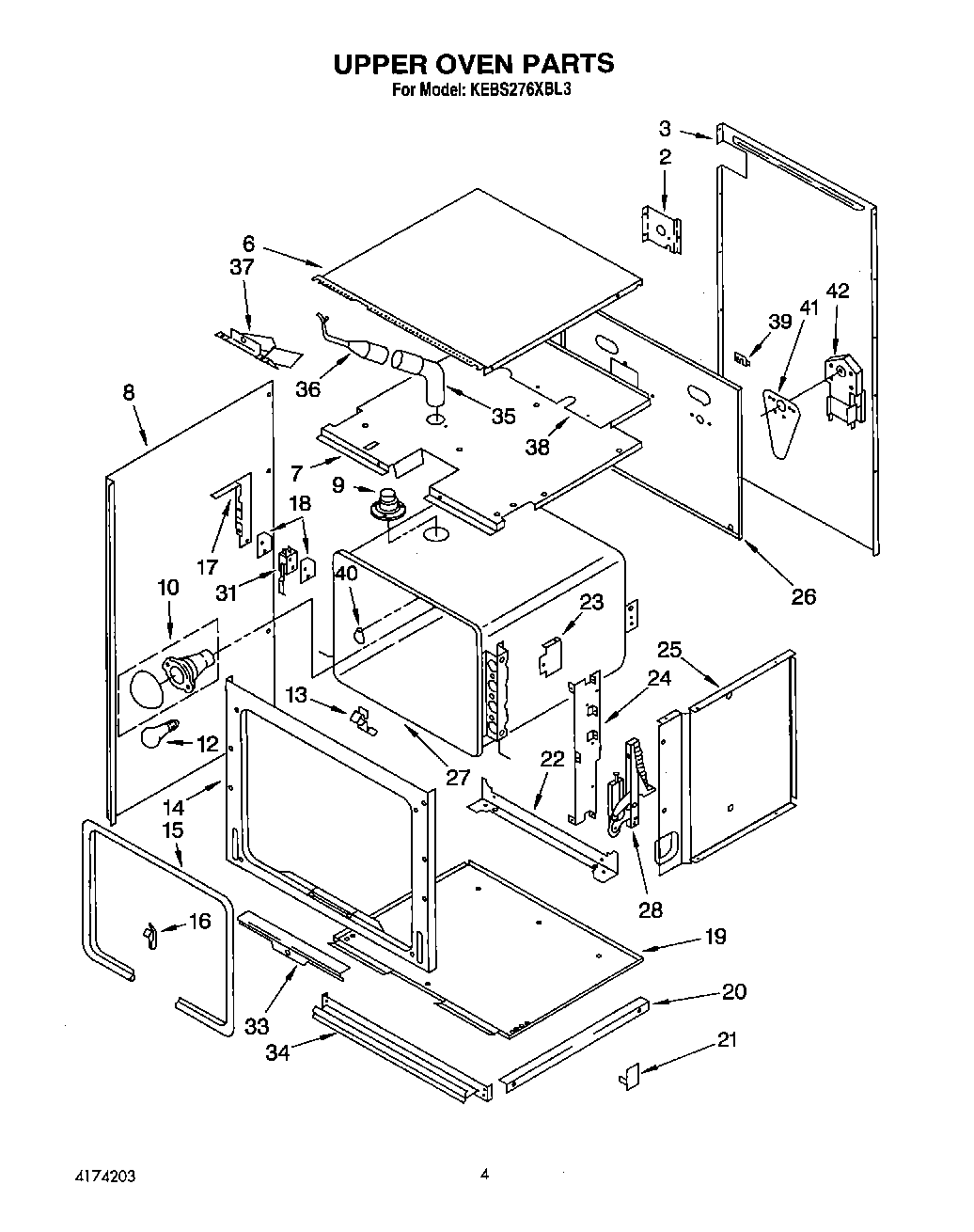

KEBS276XBL3 03 – UPPER OVEN

Written by

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw
21	Insert, Middle Vent Trim
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (4)
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	Screw (4)
33	SCREW
33	Retainer, Seal
34	Vent, Middle Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	WP90767 Whirlpool Screw
37	Shield, Vent
38	WP3177991 Whirlpool Screw
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Plate, Cover
40	Shoulder Screw
41	Rotisserie Motor Mounting Plate
42	WP488234 Whirlpool Air Conditioner Screw
42	Insulation, Oven
42	Insulation, Back
42	Rotisserie Motor
42	Washer, Lock Tooth
